186 Rockwell Automation Publication 2098-UM001G-EN-P - February 2011
Chapter 4 Configuring the Ultra5000 Drive

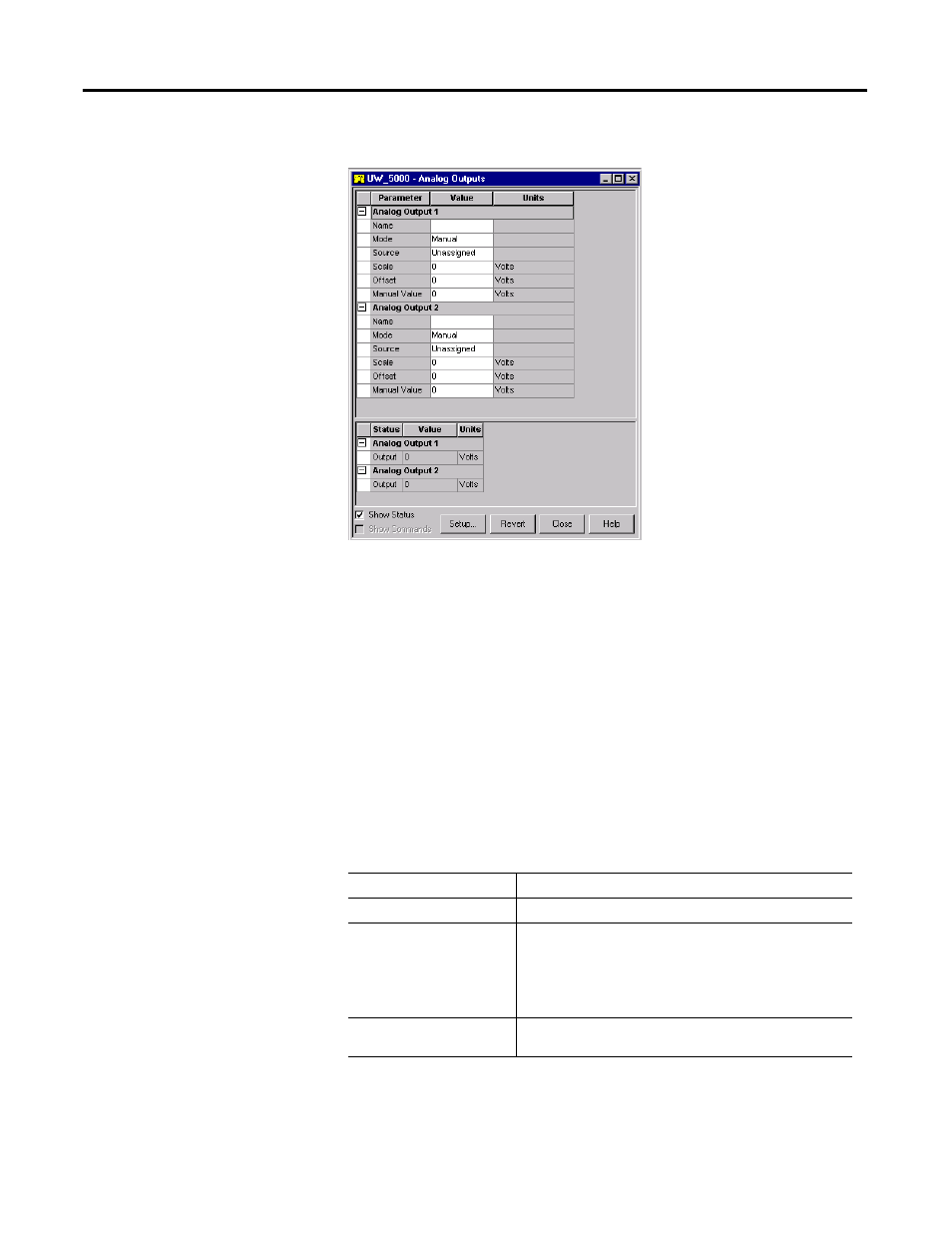

Understanding the Analog
Outputs Window The Properties window for Analog Outputs looks like this.
Use the Analog Outputs window to:
• name two (2) analog outputs
• configure the operation of each analog output, including its respective gain
and offset
• manually set the voltage for each analog output, and
• monitor the status of each analog output
You can edit parameters for both an online and an offline Analog Outputs
branch. However, you can monitor the status only for an Analog Outputs branch
that is the child of an online drive.
The following parameters can be entered and edited in the Analog Outputs
window.
Parameter Description
Name The name of the analog output.
Mode The mode of the analog output.
• Manual – The voltage at the output is determined by the
Manual Value setting of the output, along with its scale and
offset.
• Auto – The voltage at the output is determined by the Source
setting of the output, along with its scale and offset.
Source The drive parameter whose value determines the output voltage
when in Auto mode.
