3. Installation
3-11
Festo P.BE-MTR-DCI-CO-EN en 1209a
3.4 Serial interface
Serial interface for parametrizing, commissioning and diag-
nosing
In order to connect a PC to the MTR-DCI, use exclusively the
following cable:
– Programming cable KDI-MC-M8-SUB-9-2,5
• If necessary, remove the protective cap from the serial
interface of the MTR-DCI.
• Connect the following terminals with the programming
cable:
– the connection socket on the MTR-DCI
– a serial interface COMx of the diagnostic PC.

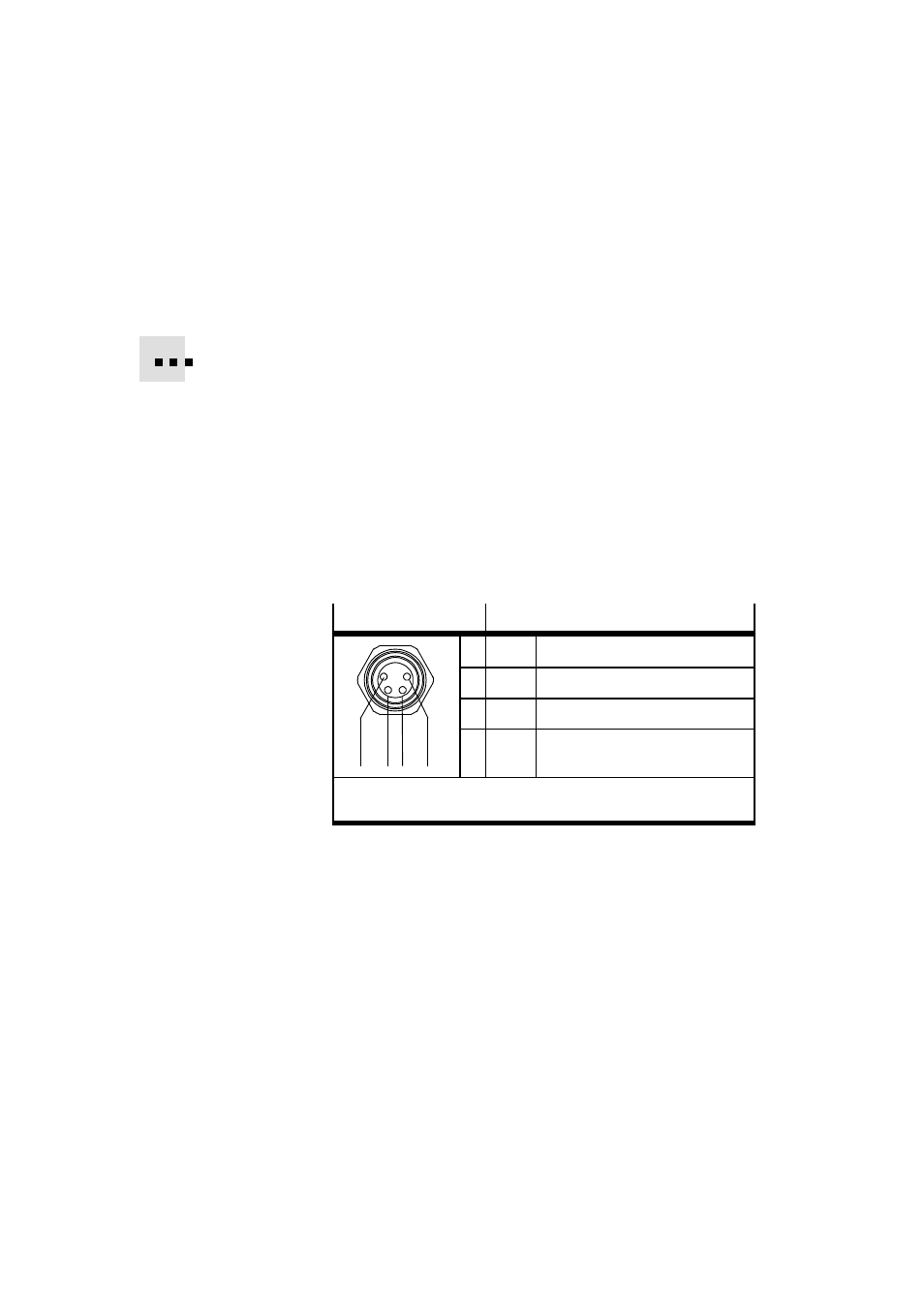

M8x1 socket Description
1 2 4 3
1 GND Ground
2 TXD RS232 transmitting cable 1)
3 RXD RS232 receiving cable 1)
4 --- reserved for servicing personnel –
do not connect.
1) The levels correspond to the RS232 standard
Data transfer rate: 9600 bit/s
Tab. 3/6: Pin assignment of the serial interface on the
MTR-DCI
