6. Diagnostics and error display
6-5
Festo P.BE-MTR-DCI-CO-EN en 1209a
6.2 LED status displays
1
LED POWER
2
LED I/F
3
LED ERROR
1 2 3

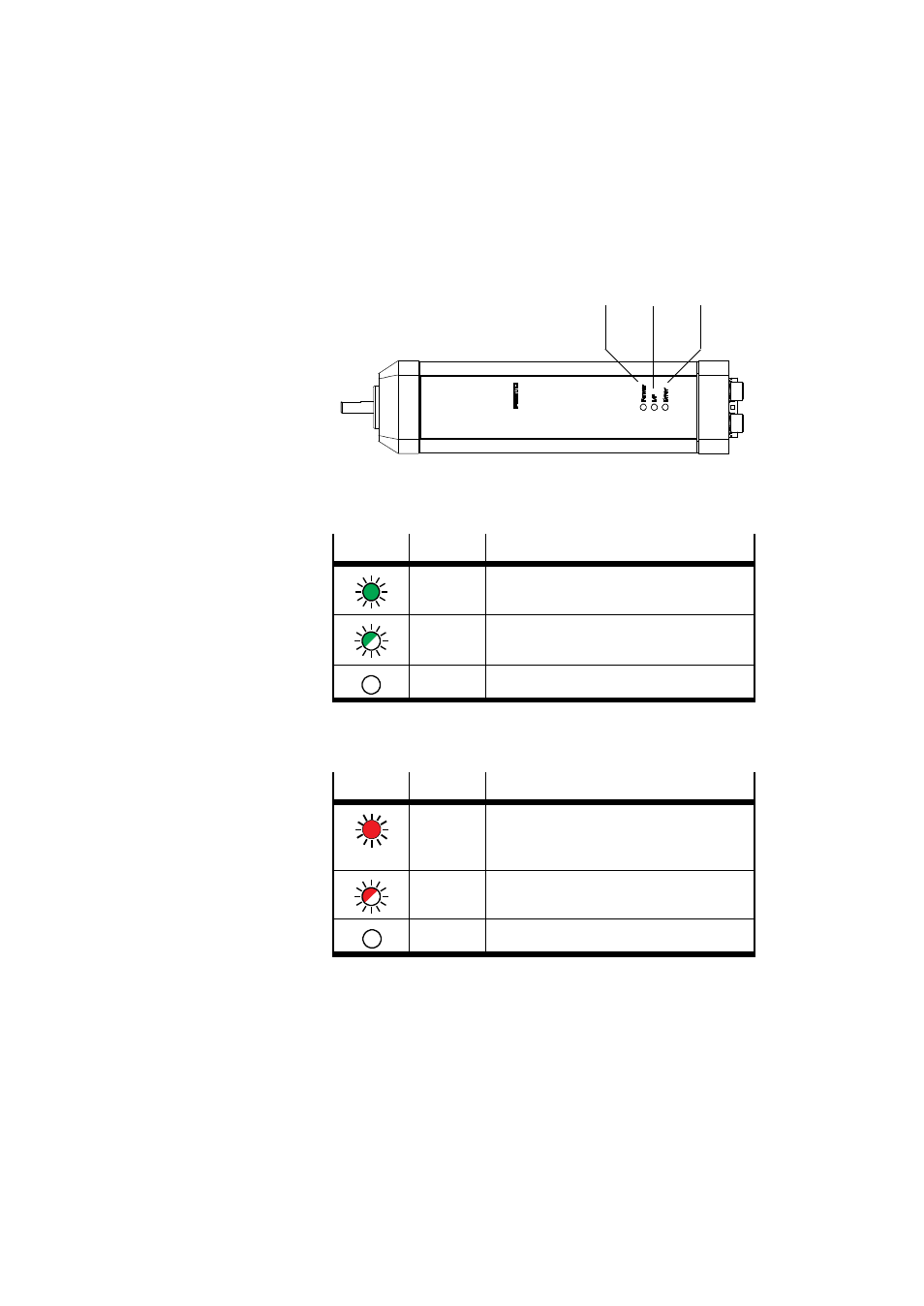

Fig. 6/1: LEDs on the control panel of the MTR-DCI-...
POWER GREEN Power supply
ON Logic and load voltages applied.
FLASHES Logic voltage is applied.
Load voltage is
not applied.
OUT There is no voltage.
Tab. 6/3: LED “Power”
ERROR RED Fault display
ON Fault. Device is not ready to operate.
Check cause and rectify if necessary,
see also section 6.3.
FLASHES Warning. Check cause and rectify if neces-
sary, see also section 6.3.
OUT No internal fault reported.
Tab. 6/4: LED “Error”
