2. Mounting
2-8
Festo P.BE-MTR-DCI-CO-EN en 1209a
In order to fit Festo axes, e. g. type DMES-... or DNCE-...,
couplings and coupling housings are available as accessories.
The motor unit is connected to the axis by means of a clamp
in the coupling housing. Additional motor flanges are not
therefore necessary. Further information can be found in
appendix A.2 and in the operating instructions for the axis.
25°
25°
50°
M3 x6 (6)
dia. 32
32°
M 4 x10(4x)
M 3 x7(4x)
di
a.
3
2
di
a.
3
6
4
x
90°
4x
90°
28°
M 5 x10(4X)
4X
90°
45°
di
a.
50
M 5 x10(4x)
4x
90°
30°
di
a.
40
MTR-DCI-32-... MTR-DCI-42-...
MTR-DCI-52... MTR-DCI-62...

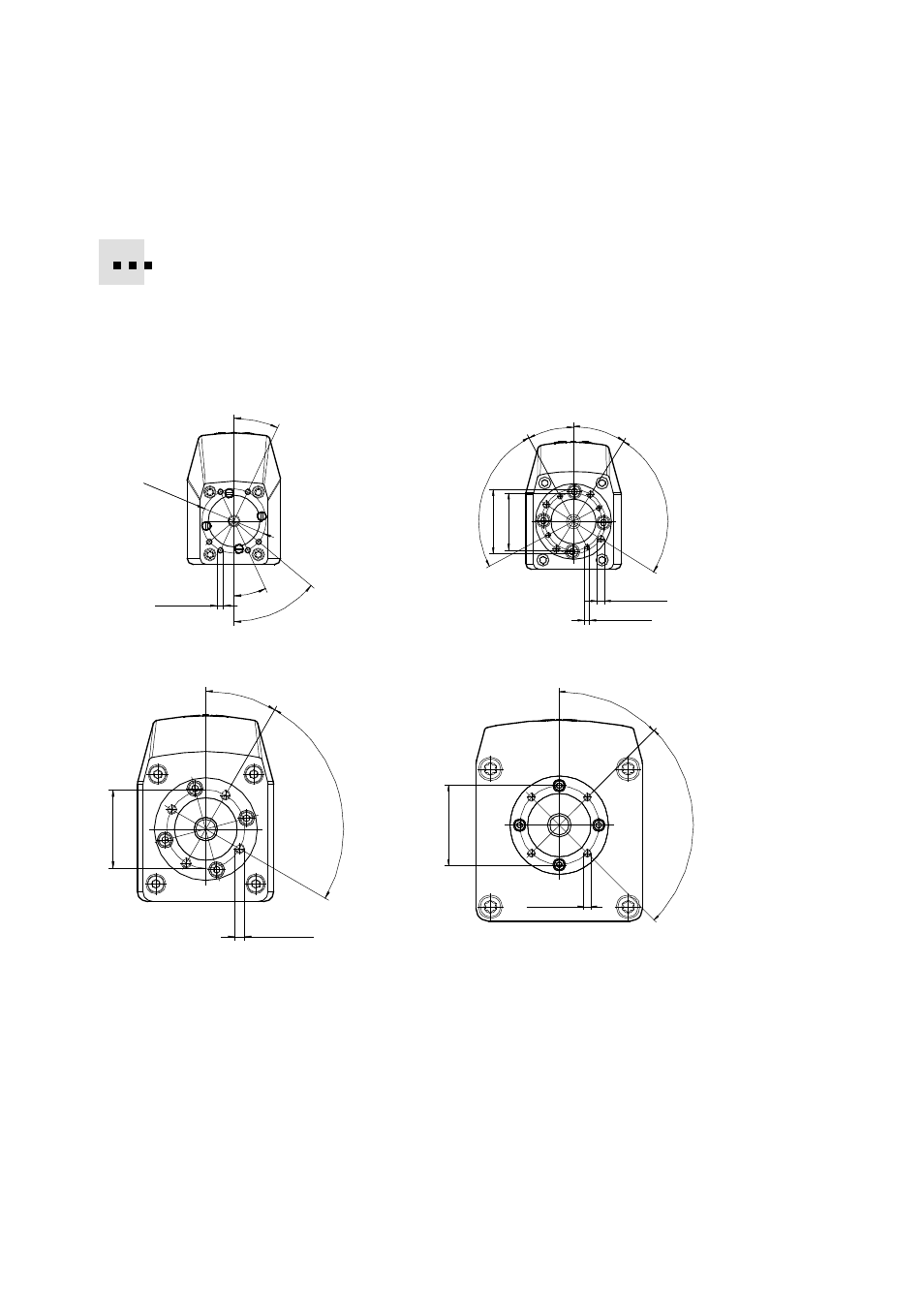

Fig. 2/2: Fastening the drive by means of the front threads (direct fastening)
