2. Mounting
2-6
Festo P.BE-MTR-DCI-CO-EN en 1209a
L3
L3 x 0.5
F
y
F
x

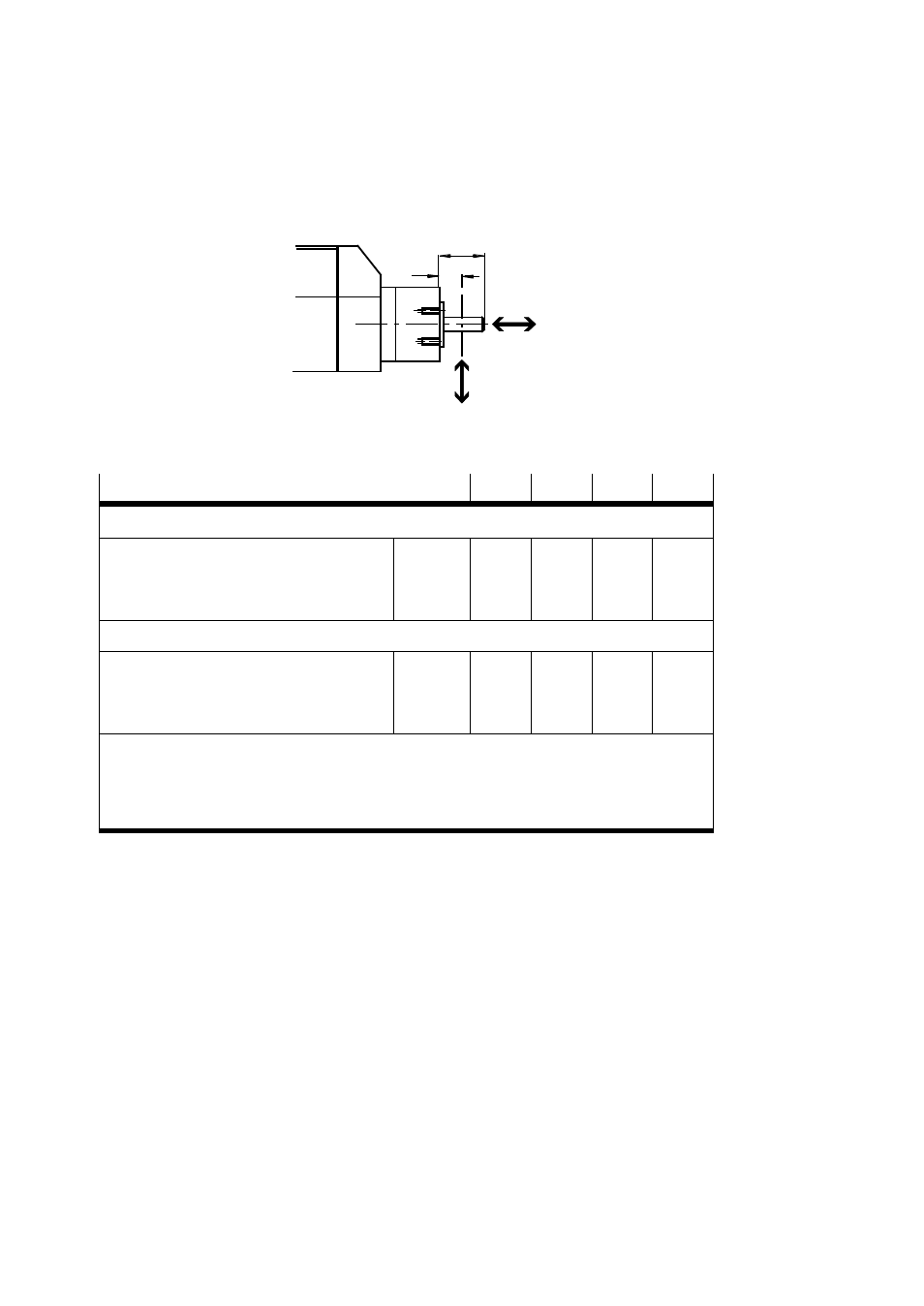

Fig. 2/1: Forces and torques
Forces and torques 32 42 52 62
MTR-DCI-...-G7 1-stage
– Radial shaft load
– Axial shaft load
– Maximum permitted shaft output torque of
the gear 1)
F
y
[N]
F
x
[N]
Mx [Nm]
40
10
0,4 160
50
0,8 200
60
2,0 240
50
4
MTR-DCI-...-G14/G22 2-stage
– Radial shaft load
– Axial shaft load
– Maximum permitted shaft output torque of
the gear 1)
F
y
[N]
F
x
[N]
M
x
[Nm]
70
20
1,0 230
80
7,5 320
100
12,0 360
70
25
2)
1) With operating factor cb=1.0 (3 hours operation daily, no shocks, direction of rotation constant).
The gear output torque of the motor unit is usually much lower, see Technical specifications,
Appendix A, Mechanical specifications.
2) MTR-DCI-62...-G22: in the start-up phase speed torque peaks up to 37 Nm are possible at 20 A
peak current.
Tab. 2/2: Permitted loading of the gear shaft
