6. Initial Setting and Position Data Editing for SEP
Controllers
74

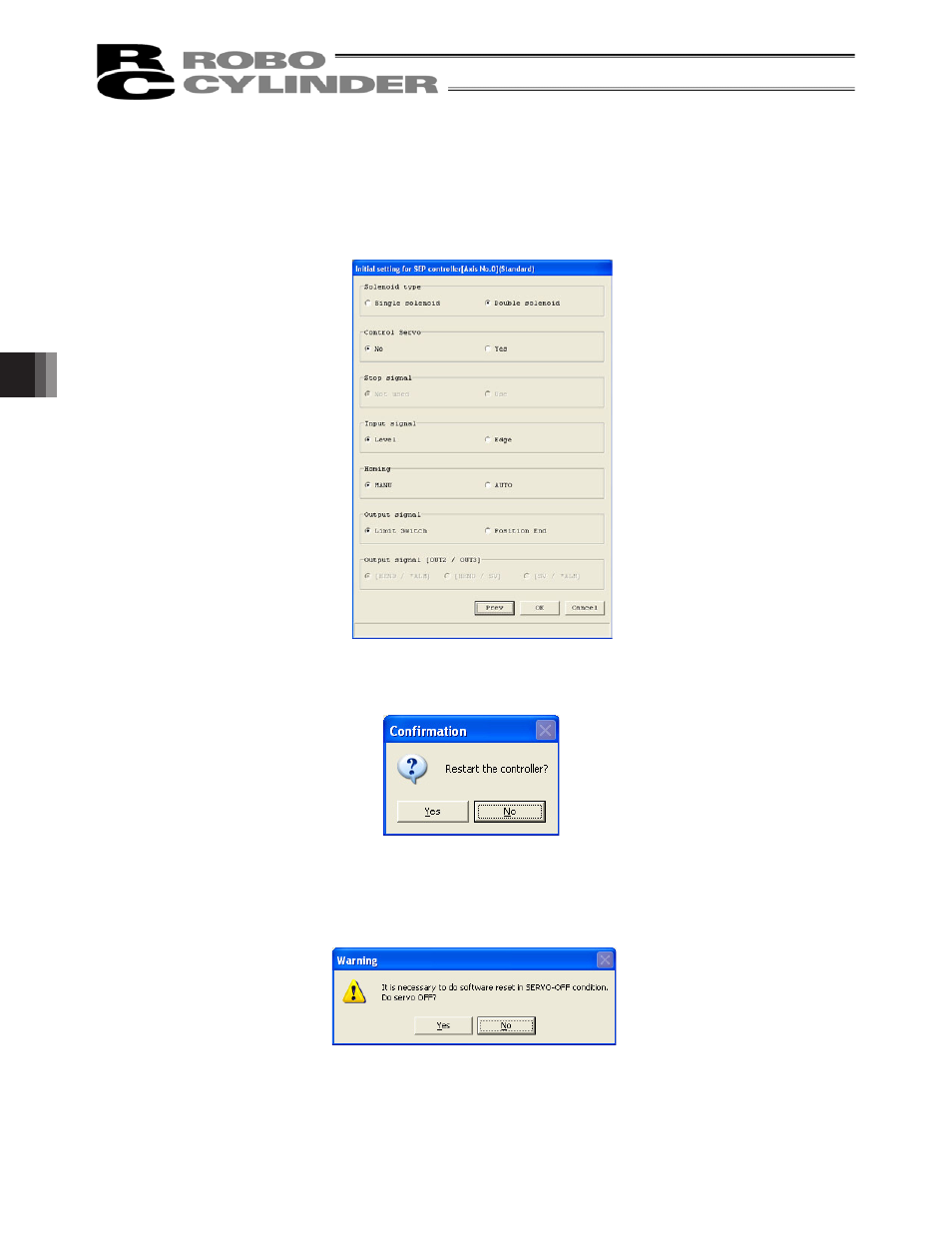

In the initial setting for SEP controller window, set the necessary operation parameters (such as selecting the
single-solenoid or double-solenoid mode), and then click OK.
The operation parameters to be set vary depending on the operation pattern (PIO pattern). Those parameters
that need not be set are grayed out.
Fig. 6.5 Initial Setting for SEP Controller Window
In the confirmation window for restarting the controller (resetting the software), click Yes.
Fig. 6.6 Confirmation Window for Restarting Controller
If the actuator servo is currently ON, a warning window appears with the message saying that you must turn
OFF the servo. Click Yes.
Fig. 6.7 Warning Window
The controller will be restarted and the operation parameters you have set will be applied to the controller.
