5. Editing Position Data on CON Controllers and Older Models
59
[8] Zone +:
‚
It defines the zone where the zone output signal of the standard type turns ON.
[9] Zone -:
‚
Individual setting is available for each target position to give flexibility.
No. Position [mm] Zone+ [mm] Zone- [mm] Note
0 5.00 100.00 0.00 Backward end
1 380.00 400.00 300.00 Forward end
2 200.00 250.00 150.00 Midpoint
Movement command to Position No. 0 (backward end)
Movement command to Position No. 1 (forward end)
Movement command to Position No. 2 (midpoint)

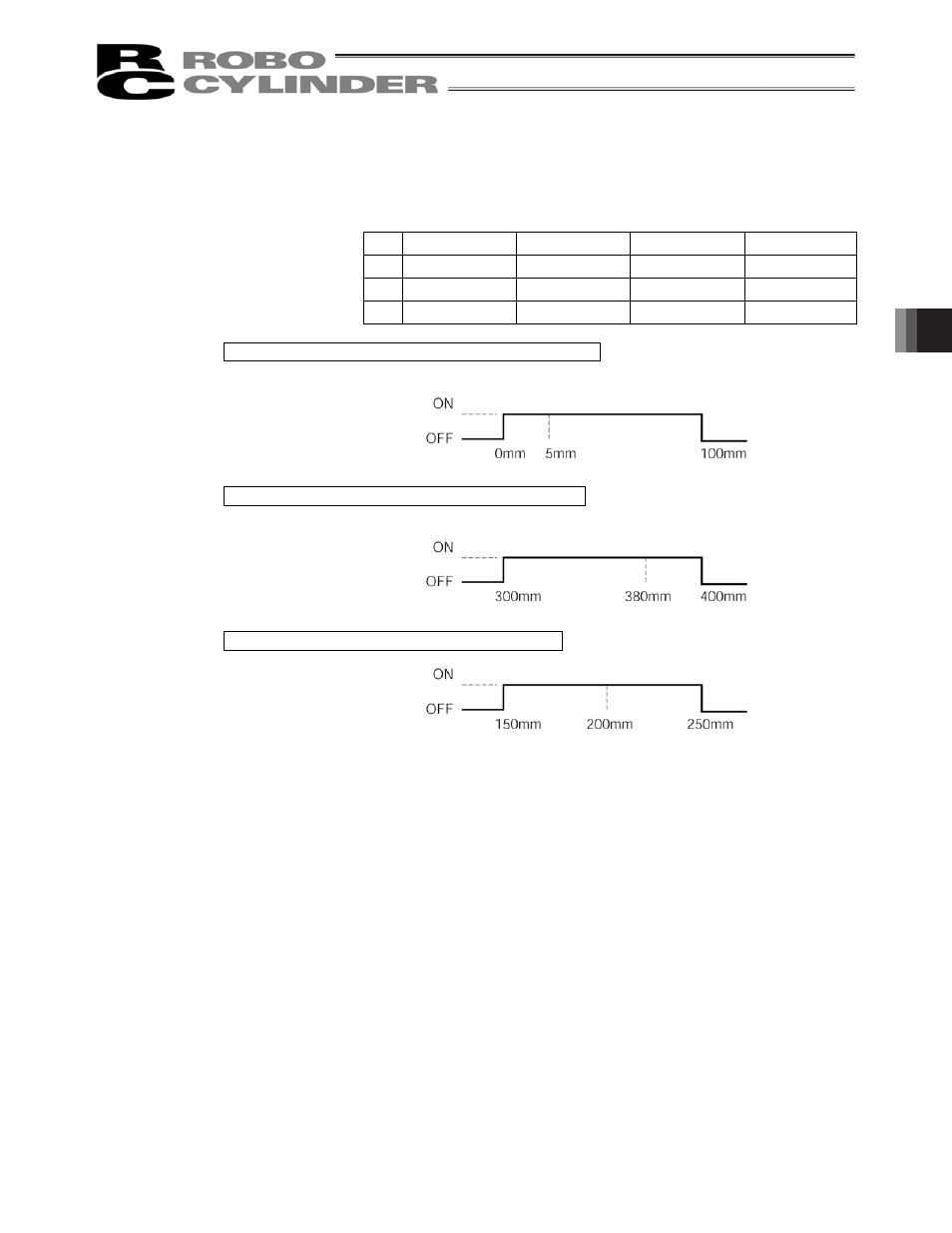

[Setting example]
Home
Zone output signal
Backward
end
+ side limit
Zone output signal
Forward
end
Zone output signal
Midpoint
