12. Off Board T
uning Function on SCON-CA
Controller
185
Manual Setting

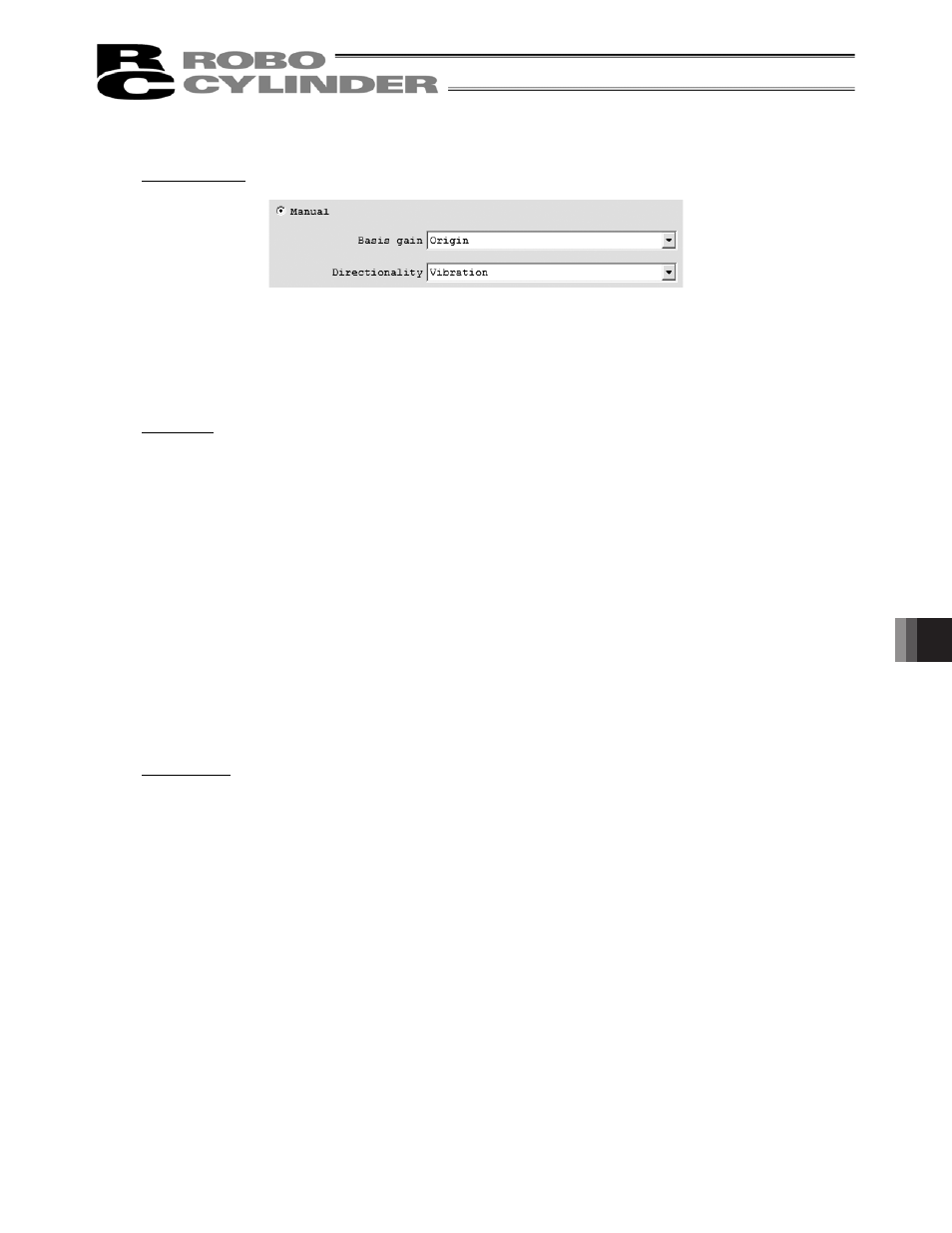

Fig. 12.27 Manual Setting
Select this radio button and click the Next button, and then the Manual window will show up.
The manual suits to a case when it is necessary to set the value which the gain calculation is based on
individually considering the target (directionality of the adjustment).
Basis gain
Select the gain that the adjustment is based on in the Manual window. The basis gain can be selected
from the following seven items.
• Origin gain
• Adjustment record gain
• Base control band (basis gain) at rated load
• Simple tuning gain (Default)
• Simple tuning gain (Tight)
• Simple tuning gain (Ratio)
• Simple tuning gain (Stiff)
(Note) Origin gain is selectable only when the adjustment record data which the origin gain has been
stored was selected in “Select actuator” window, or while in the online work and when the new
adjustment model is selected.
(Note) Adjustment record gain is selectable only when the adjustment record data is selected in “Select
actuator” window.
The band setting used in the calculation of the adjustment gain stored in the adjustment record
data selected in the model select window will be the initial value in the manual adjustment window
of this time.
Directionality
Directionality for the adjustment in the Manual window can be selected. The directionality can be
selected from the following four items.
• Control vibration
• Control noise
• Increase responsiveness
• Increase external disturbance suppression
