12. Off Board T
uning Function on SCON-CA
Controller
199

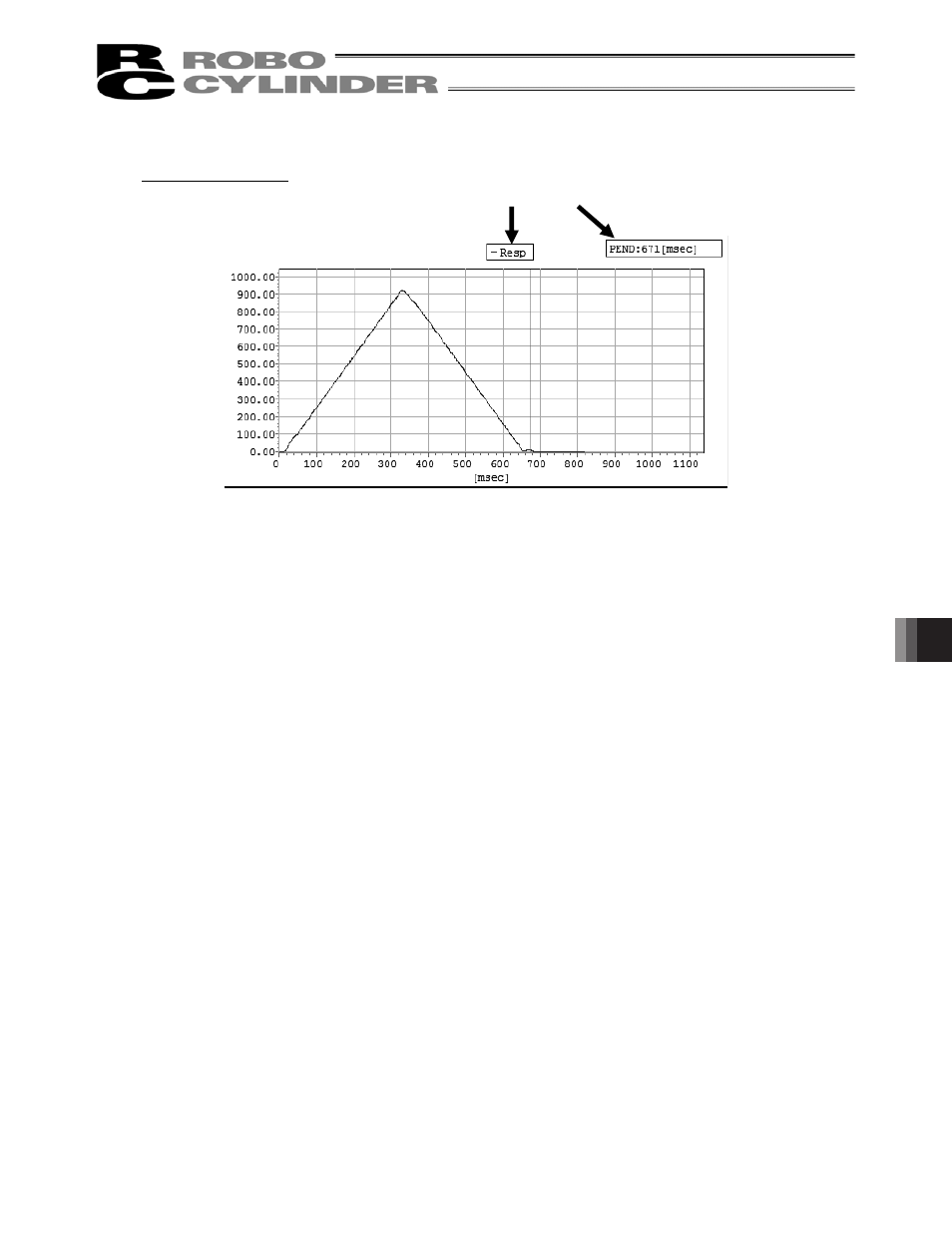

Test run result Graph
Fig. 12.58 Test run result Graph (Velocity (Resp))
The graph for the data selected with the displayed data switchover radio button is shown.
The vertical red line and PEND display on the top right indicated with the arrows show the positioning
complete time.
Positioning Complete Time
