8. Monitoring
109
(1) Common buttons
[1] [2] [3] [4] [5] [6] [7] [8]

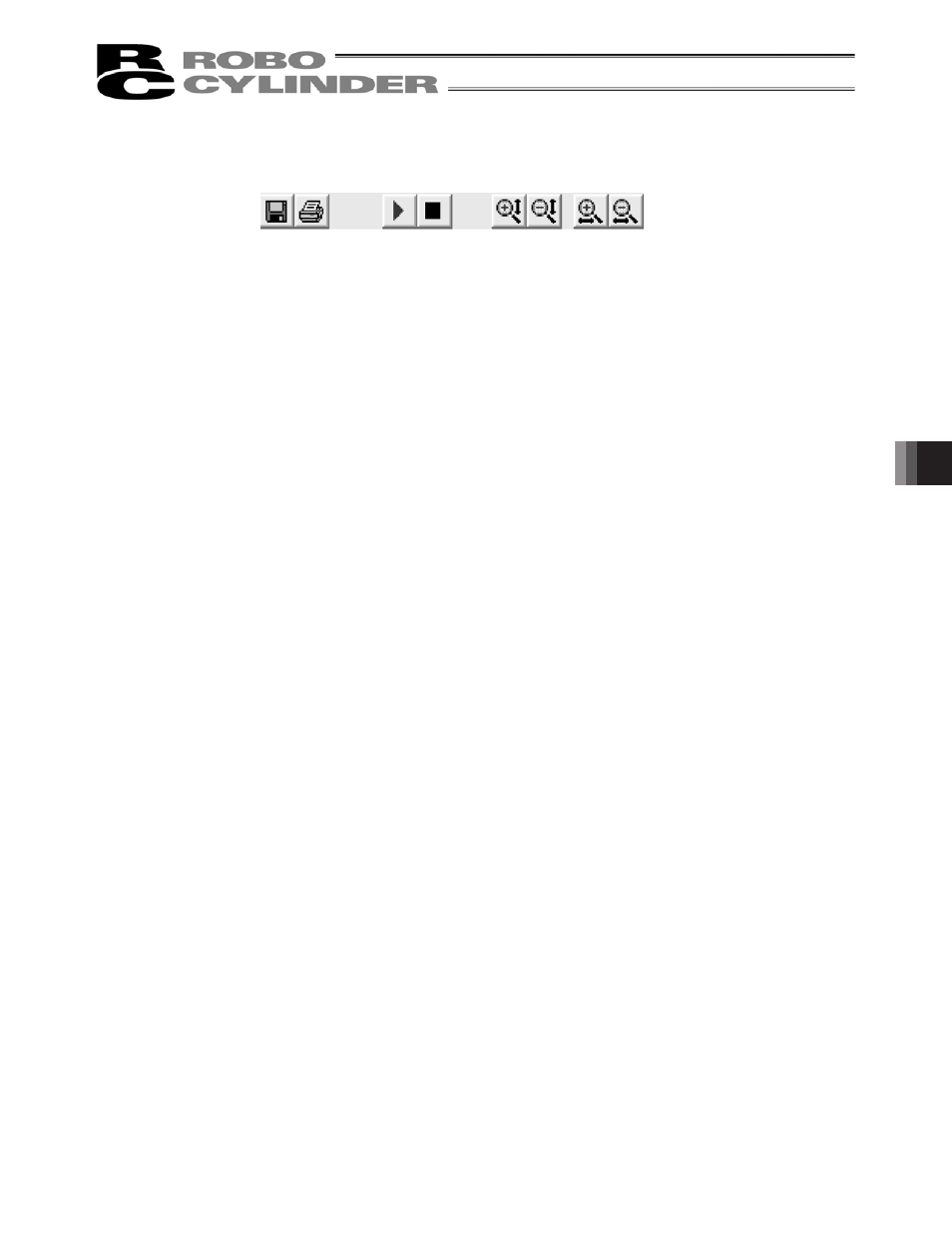

Fig. 8.15 Servo Monitor Window (Common Buttons)
[1] Save As button
Save the monitored data to a file (*.bsmrc).
[2] Print button
Print the graph.
[3] Start Monitor button
Start monitoring.
[4] End Monitor button
End monitoring.
[5] Zoom In along Vertical Graph Axis button
Zoom in along the vertical axis of the graph.
[6] Zoom Out along Vertical Graph Axis button
Zoom out along the vertical axis of the graph.
[7] Zoom In along Horizontal Graph Axis button
Zoom in along the horizontal axis of the graph.
[8] Zoom Out along Horizontal Graph Axis button
Zoom out along the horizontal axis of the graph.
