11. Smart T
uning Function (V
ersion V8.03.00.00 or Later)
156
11.4.3 Explanation of Takt Time Calculation Window
Takt time calculation can be performed in this window.
* Click the Takt Time Calculation button in “Test Run” or “Adjustment Record Save” window.

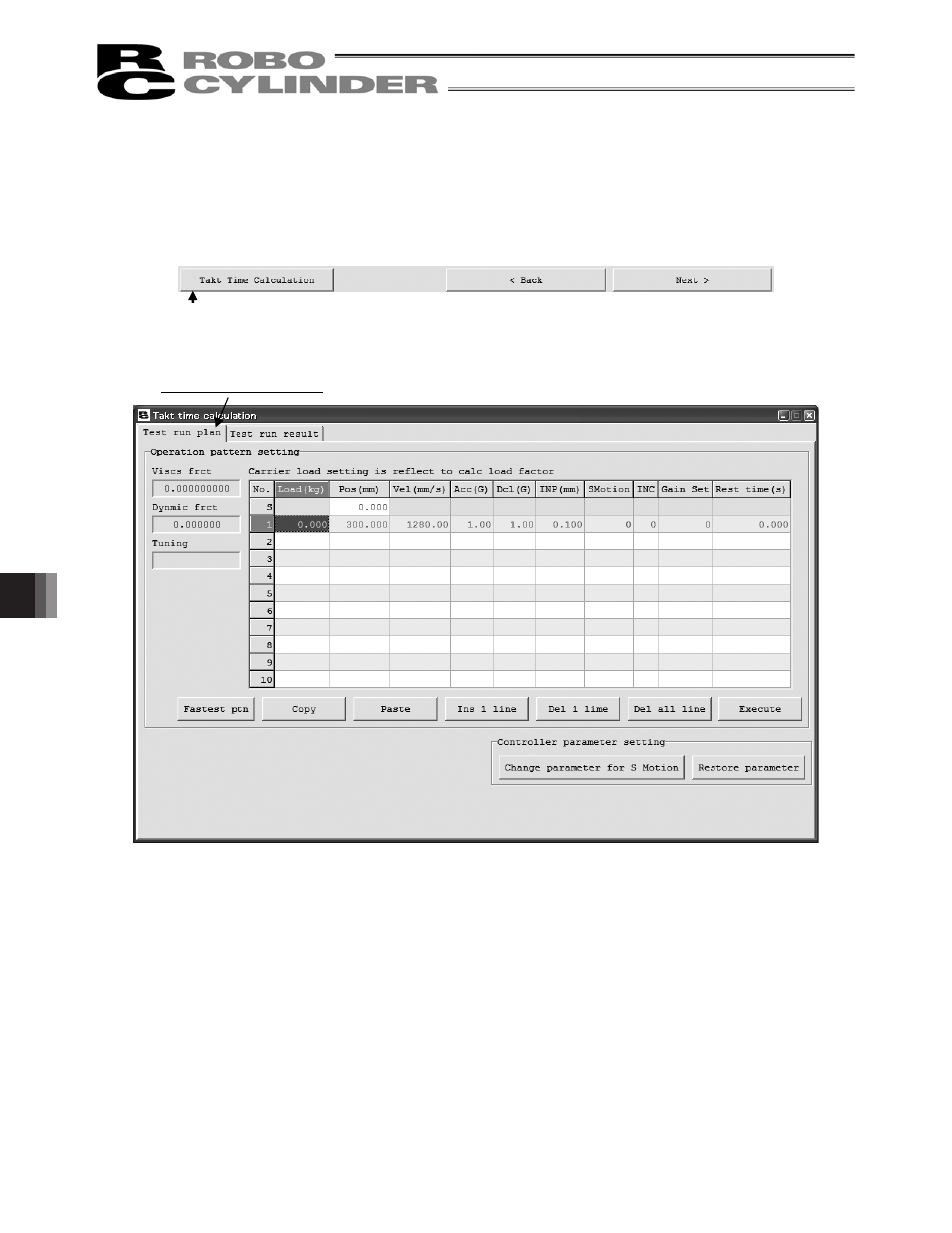

Fig. 11.74 Common Buttons Area in Smart tuning Window
Fig. 11.75 Takt time calculation Window (Test run plan Setting Window)
[1] Display Switchover Tab
With these tabs, the displays of “Test run plan setting” window and “Test run result Display” window can
be switched over.
Takt Time Calculation
[1] Display Switchover Tab
