1. Preparation Before Use
28
1.5 Setting of communication Window
The “Setting of communication” window (Fig. 1.45) is displayed only at the initial start after the software has
been installed. In this window, setting for communication with the controller is made.

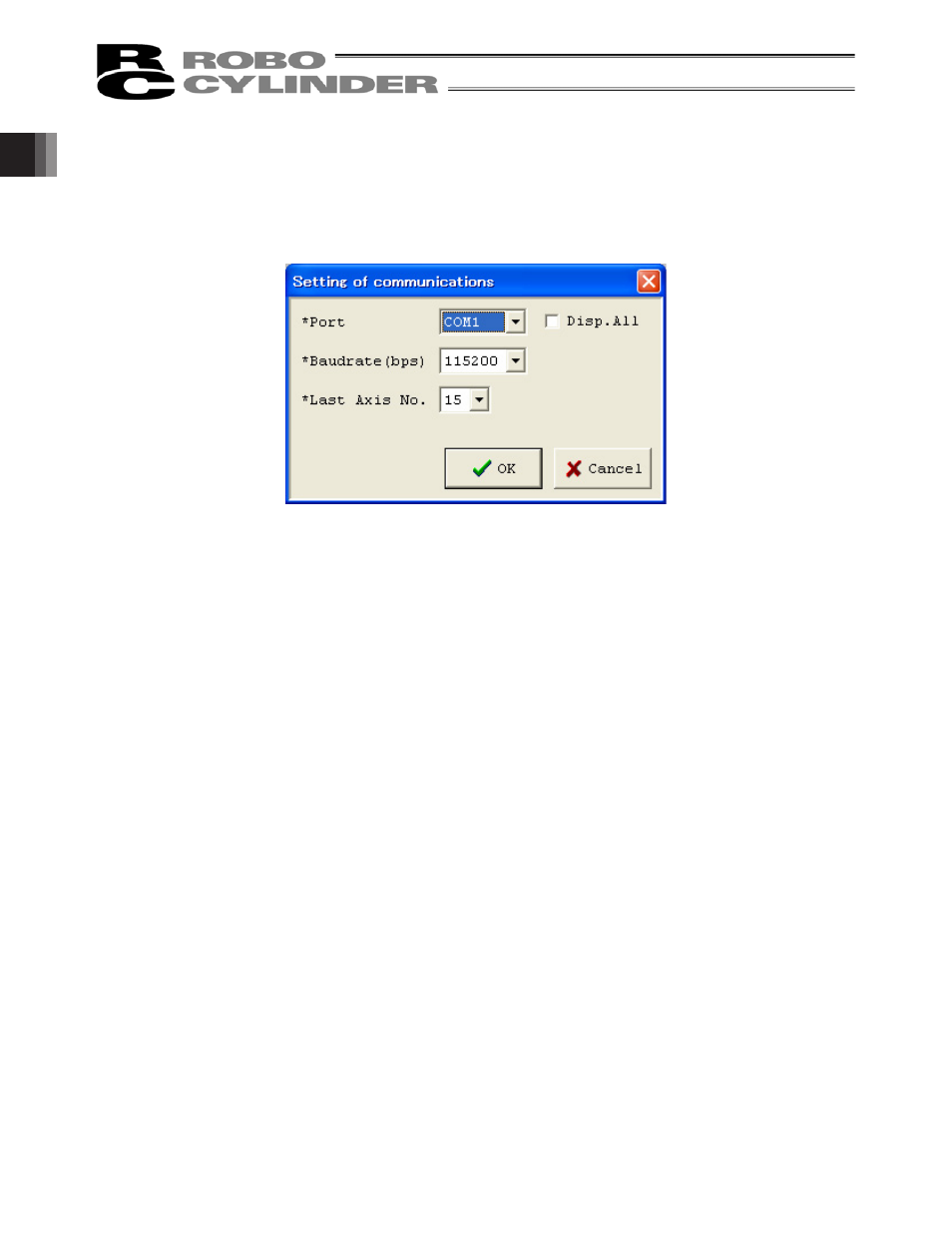

Fig. 1.45 Setting of Communication Window
[1] Port
From the list, select the serial port to be used to communicate with the controller.
[2] Baud rate
From the list, select the baud rate.
* The baud rate selected here is used only in the communication between this application and controller.
It does not affect the communication speed parameters of the controller.
* If baud rate is not supported by the port selected in [1], an error occurs when connection is checked.
[3] Last axis No.
Select the axis number of the last axis to be checked for connection.
* Axes of numbers greater than the value selected here will not be checked for connection. Select an
appropriate axis number after checking the axis numbers of the connected axes.
After setting the above items, click the OK button, then checking for connected axes is performed. (From the
next start, checking for connected axes will be automatically performed by this setting.)
* Contents set here can be changed on the setting of application window (Fig. 9.1).
If the Cancel button is clicked, application is ended without performing checking for connected axes (this
setting of communication window will be displayed again.)
