5. Editing Position Data on CON Controllers and Older Models
47
[3] Reload position data
Reload position data from the controller and then refresh the displayed data.
If the position data has been changed in the position data edit window (when “Modified” is shown in the
status bar), clicking this button will display the warning message shown in Fig. 5.10.
* Take note that if you select Yes in this window, data that have been edited but not yet been written to
the controller will be lost.

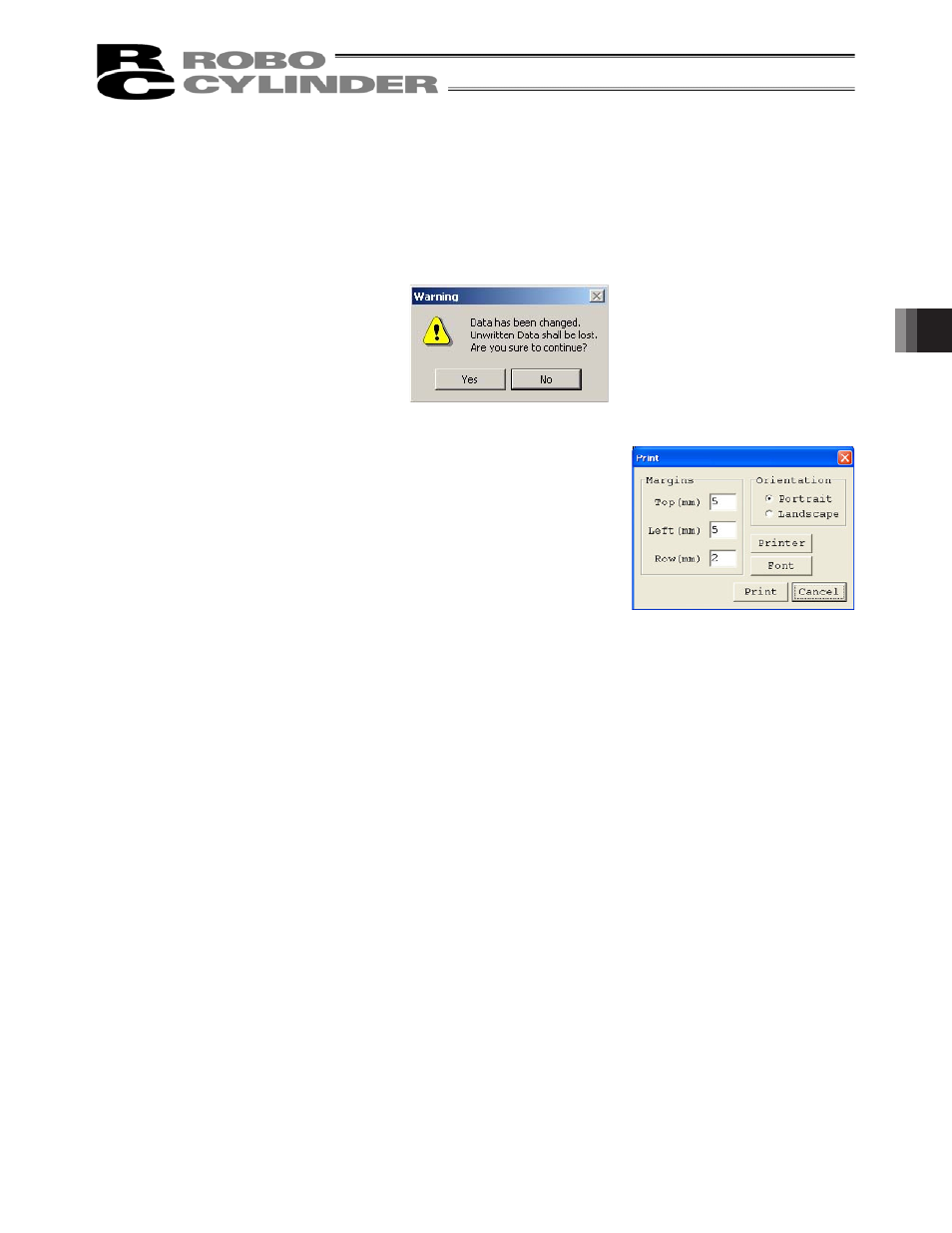

Fig. 5.10 Warning Message
[4] Print
Output position data to the printer.
Print setting window is displayed. Set top, left and row margins (mm)
and printing orientation, and then print.
[5] Cut
Cut the range of data selected in the position data input area and save
it to the clipboard.
* You can select data in units of rows.
[6] Copy
Copy to the clipboard the range of data selected in the position data input area.
* You can select data in units of rows.
[7] Paste
Paste the data that has been cut or copied from the position data input area, to the selected position.
[8] Switch display
Change the display mode of the position data input area from normal to detail (or vice versa).
(Fig. 5.24, Fig. 5.25) or (Fig. 5.27, Fig. 5.28)
[9] Show status monitor window
Display the status monitor window of the axis you are currently editing.
This window is the same as the one you can open by selecting Status from Monitor in the main menu of
the main window.
[10] Divide position data equally
Clicking this button will display the window shown in Fig. 5.12.
Set appropriate values in Start Position No. and End Position No., select an appropriate option under
Fraction processing, and then click OK. The distance between the specified two position data will be
divided equally. (This function is called “Equal division function”)
When the check box for “Also divide the velocity” is selected, the velocity between the two specified
position tables will also be divided equally. (The “Also divide the velocity” check box is available in Ver.
V6.00.04.00 or later.)
Fig. 5.11 Print Setting Window
