13. Frequency
Analysis Function for SCON-CA
Controller
Anti-V
ibration Control
241
(3) Perform FFT analysis.
Perform steps [1] to [6] in the sampling window. (Steps [1] to [4] can be performed in any order.)
[1] Set the analysis start time in the “FFT setting” area.
[2] Set the number of use data in the “FFT setting” area.
[3] Set the number of thinning in the “FFT setting” area.
[4] Set the window function in the “FFT setting” area.
[5] When all items in the “FFT setting” area have been set, click the Execute FFT button, and FFT analysis
will be performed.
The FFT result is displayed.

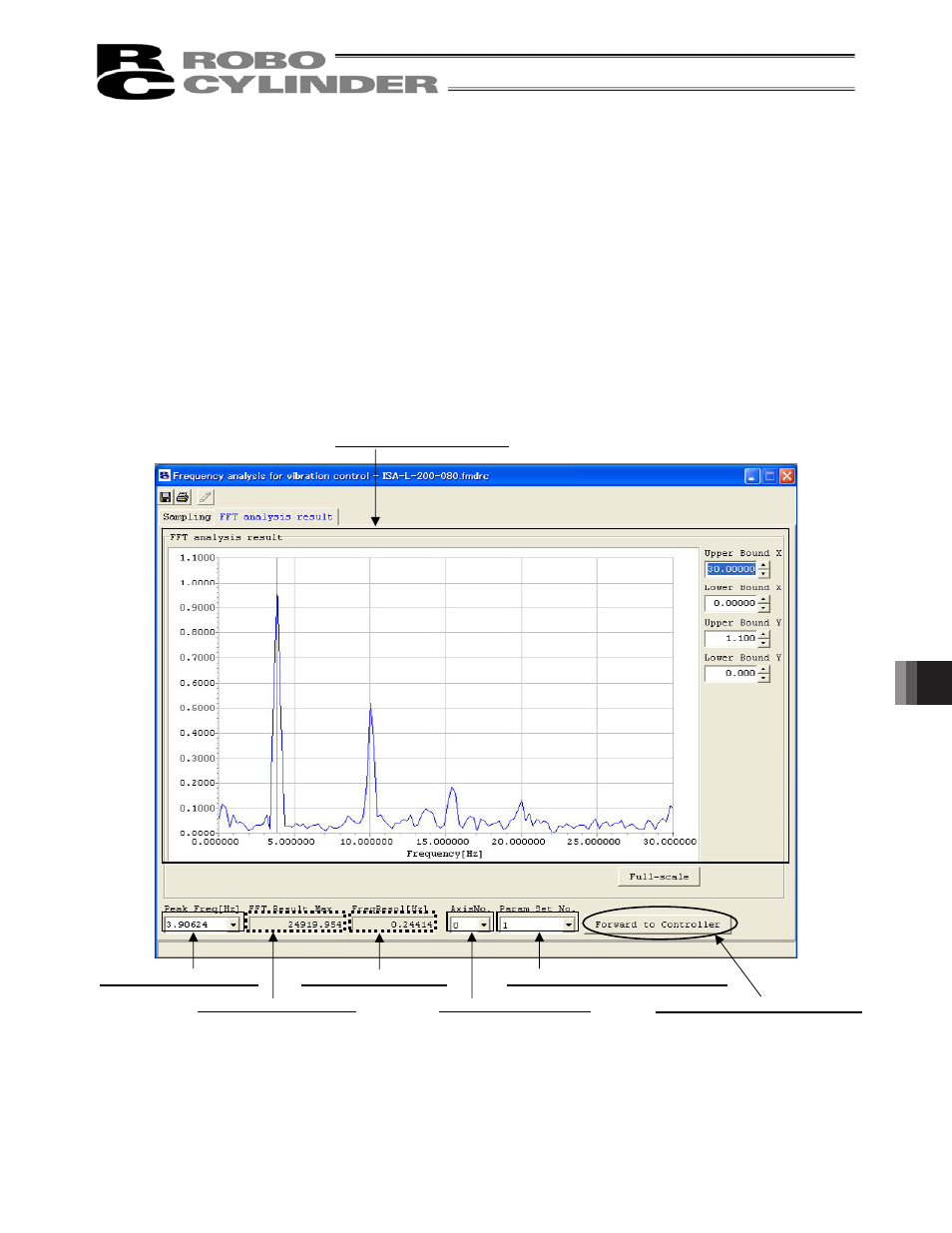

Fig. 13.46 FFT Analysis Result Win
[1] FFT analysis setting data
[3] Maximum value of FFT
[5] Axis number selection
[7]
Forward to Controller button
[2] Peak frequency setting
[4] Frequency resolution
[6] Parameter set number selection
