[2] Read external measurement data file
Select this option if you want to read an external measurement data file containing data measured with a
measuring equipment, etc., to perform FFT analysis and extract the vibration frequency of the load.
You can select a desired existing analysis file by clicking the file browse button. Or, enter the file name
directly in the file path display/file history field.
When the file has been selected, click OK.
The frequency analysis for vibration control window appears where you can perform FFT analysis.
Any external measurement data file having the extension “csv” or “txt” can be read.
This option is selectable regardless of whether the controller is online or offline or regardless of the
model of the connected actuator.
Clicking Cancel closes the measurement data selection window.

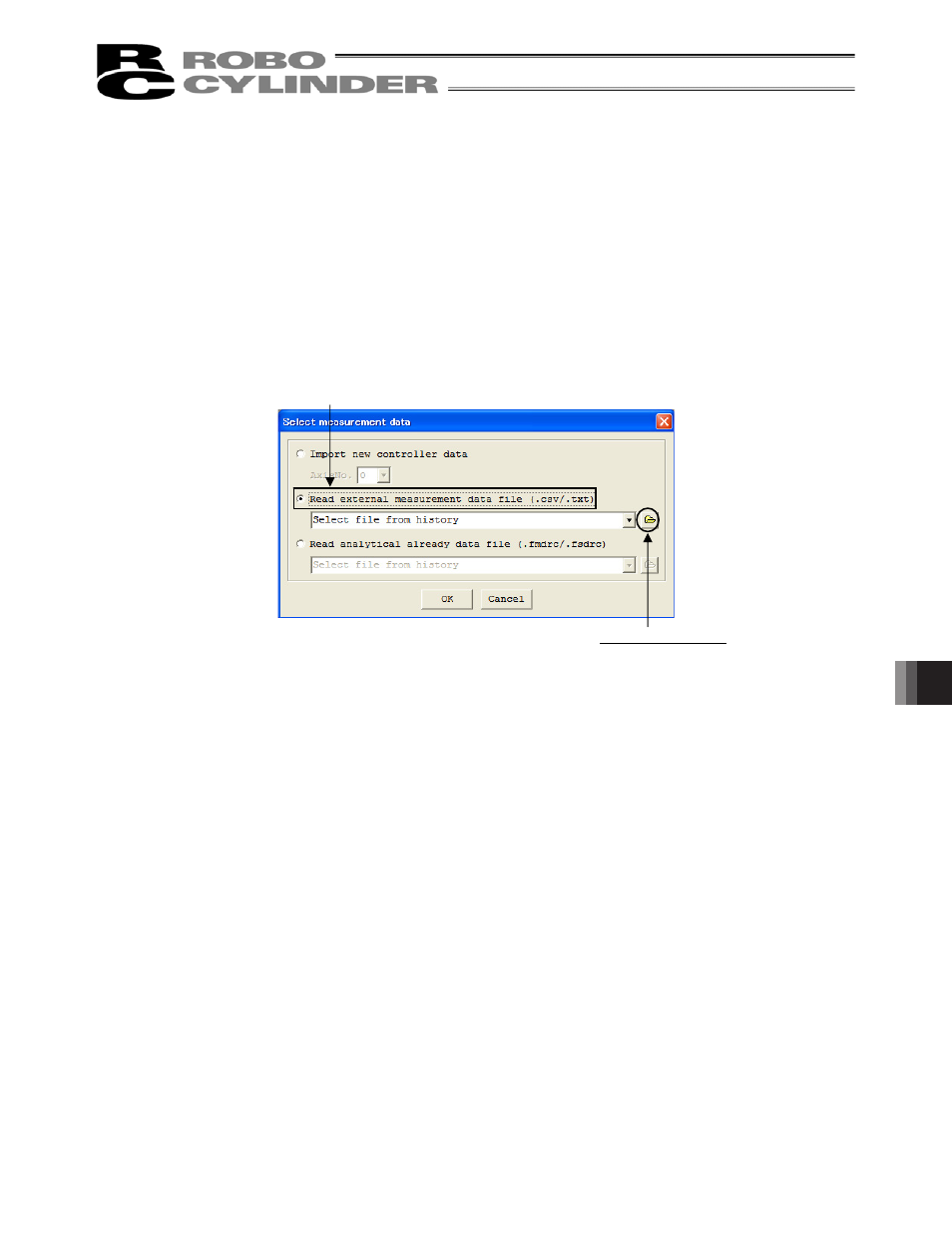

Fig. 13.8 Measurement Data Selection
(“Read External Measurement Data File” Selected)
[1] Select a file in the file path display/file history field.
[2] File browse button
