9. Setup
119
9.4 Load Cell Calibration
(Note) This setting is available only with SCON-CA controllers (of Version V8.00.00.00 or later).
From the main menu, click Setting, point to Controller Setup, and then select Load Cell Calibration. On the
axis selection window, select the target axis number. Refer to 4, “Axis Selection.”

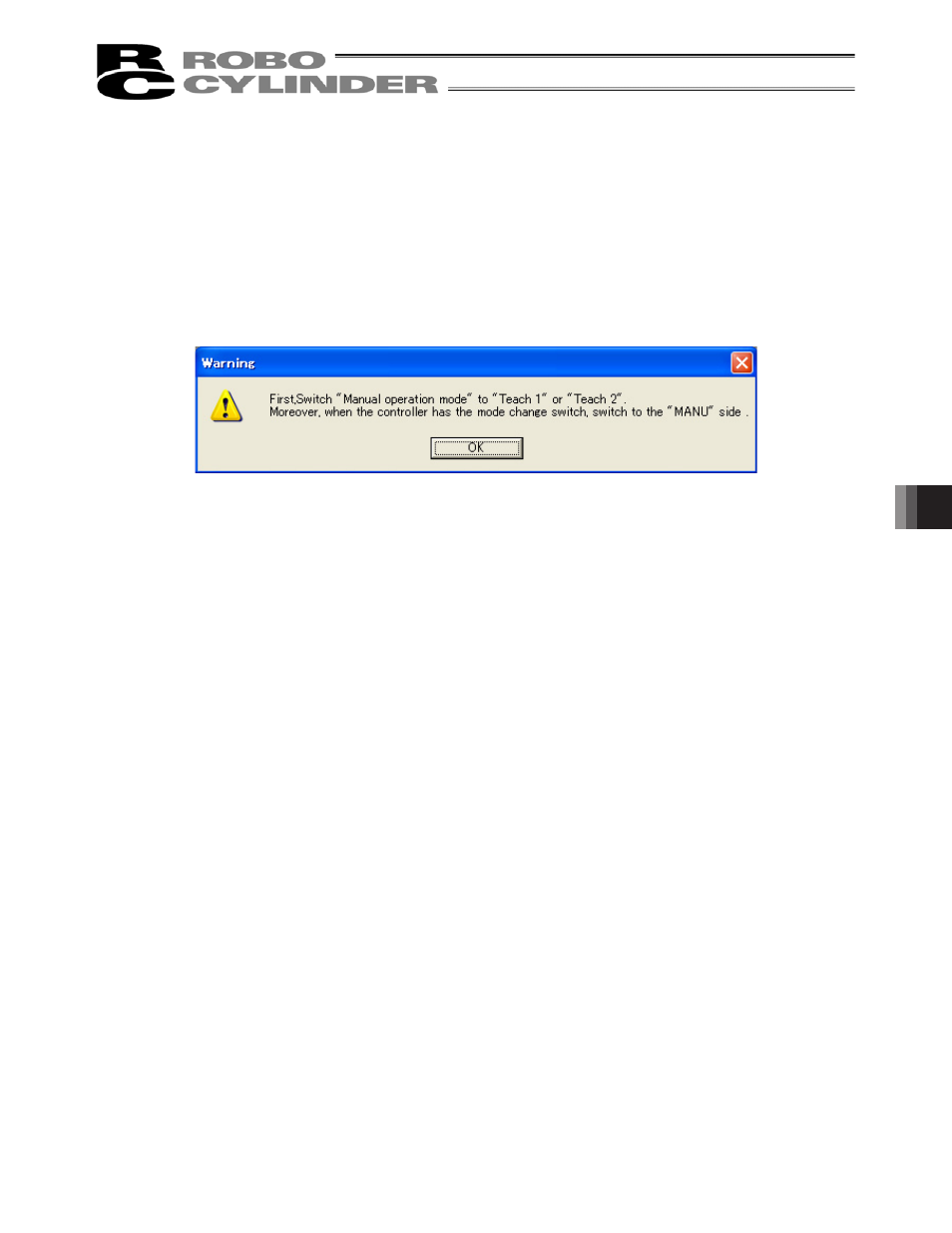

If a warning message appears when setting the axis number, switch the controller and PC
software settings according to the message, and then click Setting, point to Controller Setup,
and select Load Cell Calibration to repeat setting from the beginning.
Fig. 9.11 Load Cell Calibration Axis Selection Window
