11. Smart T
uning Function (V
ersion V8.03.00.00 or Later)
133

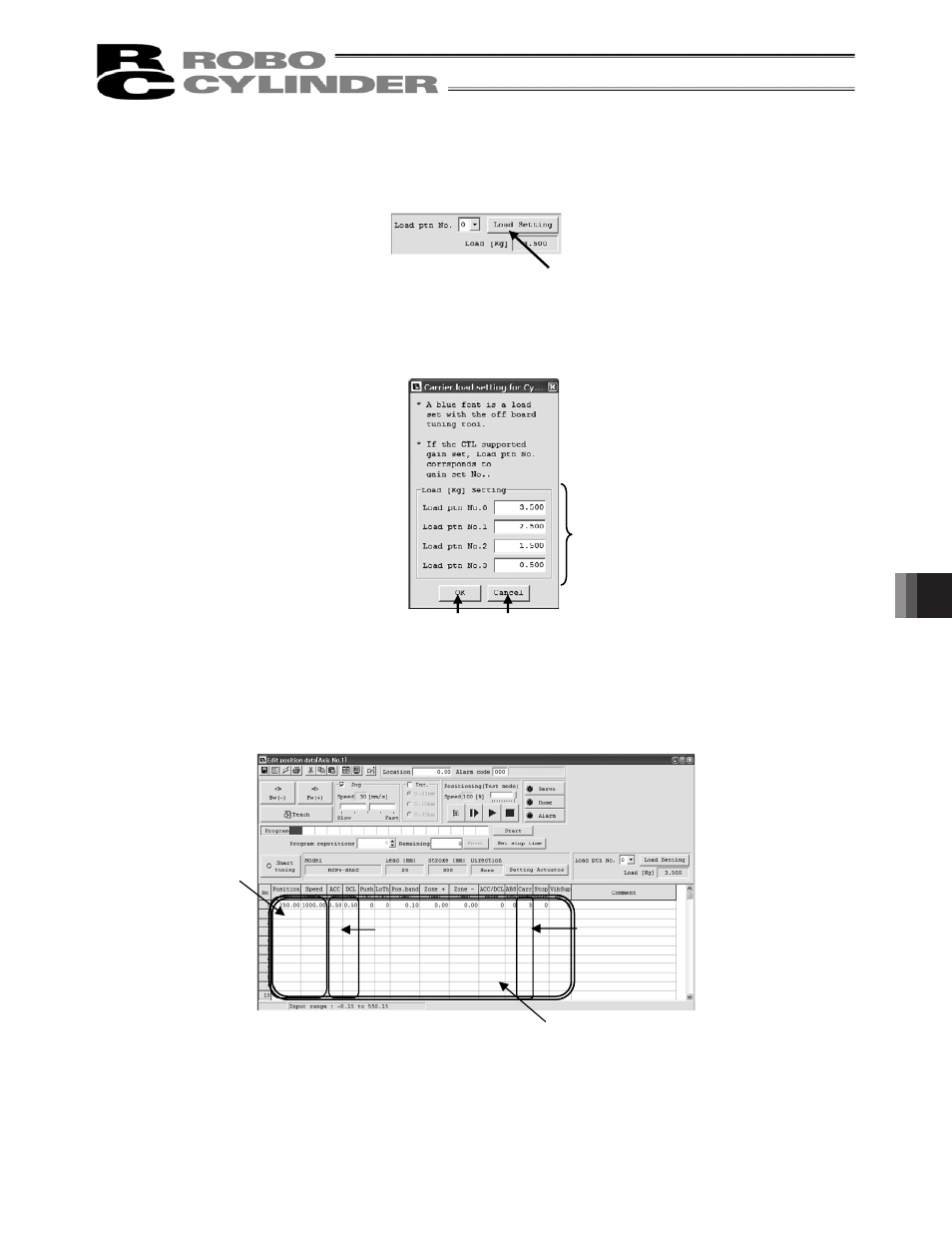

[4] Click Load Setting button at the setting display of the actuator applicable for velocity and
acceleration/deceleration settings.
Fig. 11.22 Box to show carrier load setting for velocity and acceleration/deceleration settings
[5] Set the carrier load in “Load setting for Vel and Acc setting” window.
Click OK button.
Fig. 11.23 Carrier load setting for Smart tuning function Window
[6] Set the position and velocity in the blank position numbers.
(Note) In the position numbers with data already set, this function cannot be used.
Fig. 11.24 Edit position data Window
(Note) The value set to the cells that is to be set automatically with this function, such as the velocity cell,
can also be overwritten.
Load Setting Button
[1] Load Setting
[2] OK Button [3] Cancel Button
Position and
velocity setting cell
Acceleration and
deceleration
setting cell
Carrier load setting cell
Position data input area
