11. Smart T
uning Function (V
ersion V8.03.00.00 or Later)
127
(2) Actuator setting for Vel and Acc setting

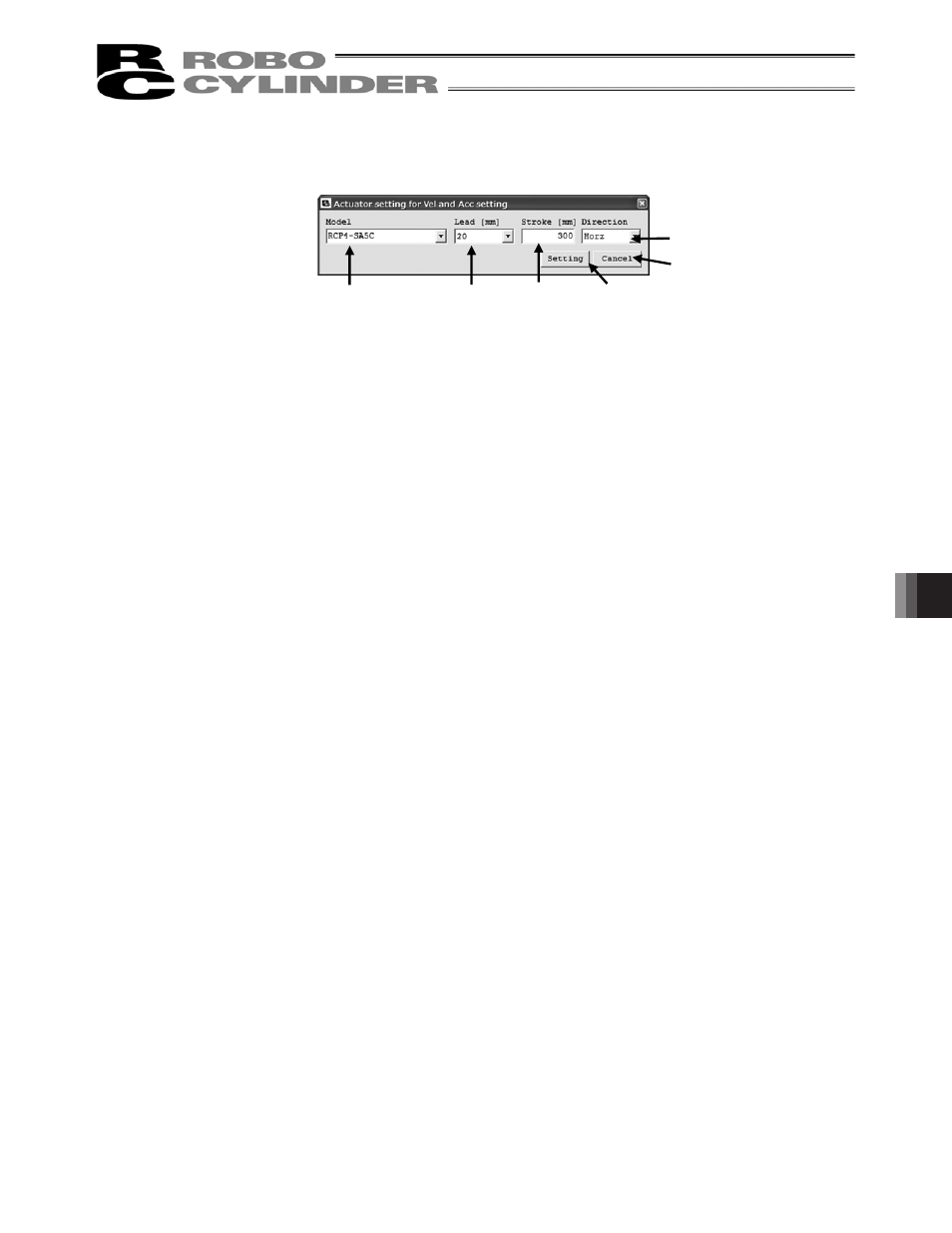

Fig. 11.9 Actuator setting for Vel and Acc setting Window
[1] Model
Select the actuator model code that is applicable for the velocity and acceleration/deceleration settings.
(Note) The models available to select from are only the ones registered in “Actuator Attribute Data File”.
[2] Lead [mm]
Select the lead of the actuator that is applicable for the velocity and acceleration/deceleration settings.
(Note) The lead available to select from is one listed up in the selected model code.
[3] Stroke [mm]
Select the stroke of the actuator that is applicable for the velocity and acceleration/deceleration settings.
(Note) The stroke available to select from is one from the stroke range listed up in the selected model
code.
[4] Direction
Select the posture (horizontal or vertical) of the actuator that is applicable for the velocity and
acceleration/deceleration settings.
(Note) The posture that can be selected is limited only to those supported in the selected model.
[5] Setting Button
Click this button and the settings of 1) to 4) are written to the controller and the window will close.
[6] Cancel Button
Click this button and the window will close without writing the settings of 1) to 4) to the controller.
[1] Model [2] Lead [mm] [3] Stroke [mm] [5] Setting Button
[6] Cancel Button
[4] Direction
