8. Monitoring
103
8.2 CTL Alarm List
To monitor the controller error list, click Monitor and then select CTL alarm list from the main menu, or click
in the toolbar. In the “Select axis number” window, select the axis number corresponding to the axis whose
controller error list you want to monitor. (Refer to 4. Selecting an Axis.)

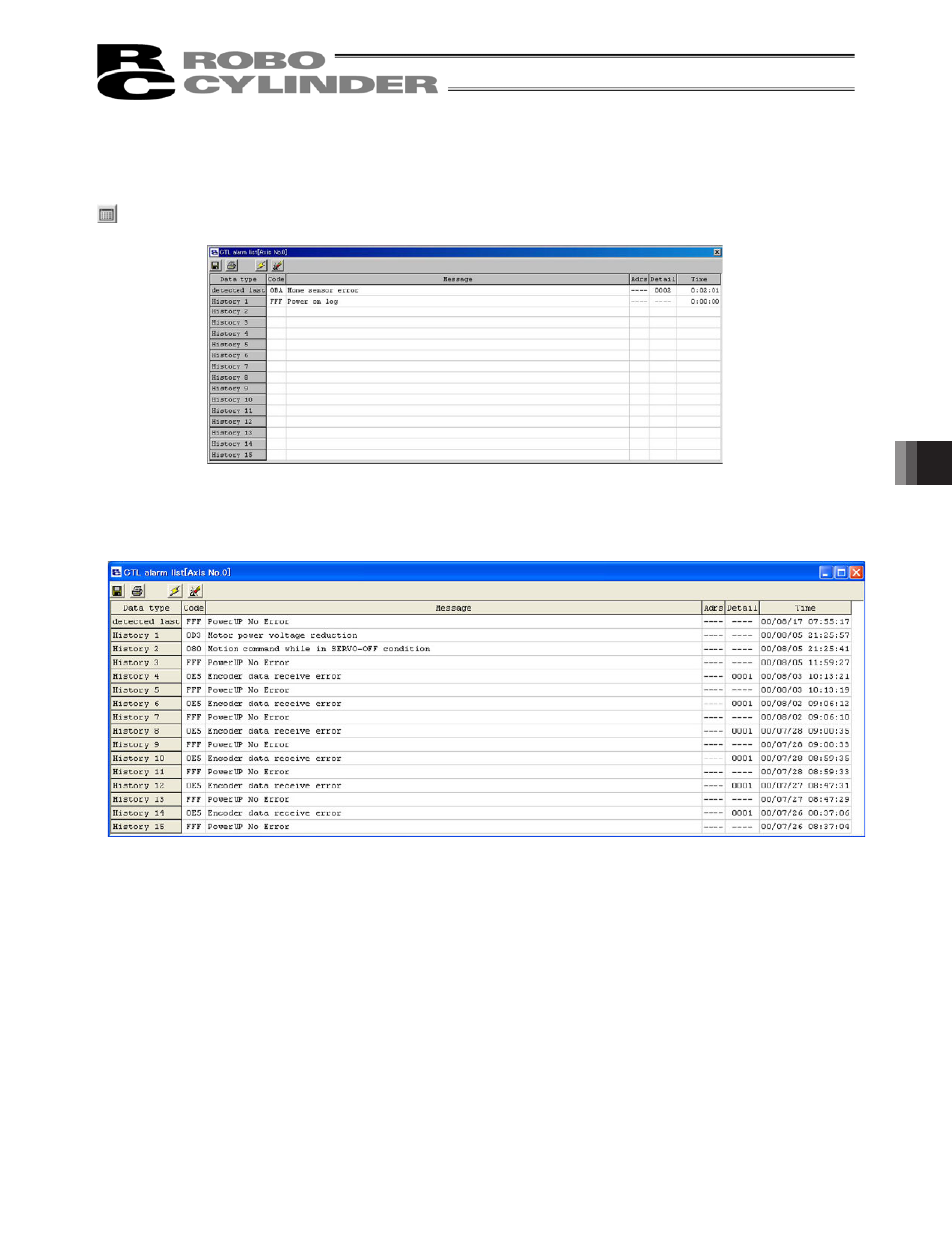

Fig. 8.7 Controller Alarm List Window
Fig. 8.8 Controller Alarm List Window (SCON-CA, PCON-CA, ERC3 PIO Converter and MSCON)
(1) Alarm list
Indicates detected warning code, alarm codes for past 16 times (eight times on older models) and address in
which data error occurred in execution (for maker investigation), detail code and occurred time.
(Note) “Power ON log (no error)” indicates the controller power was turned on. It does not indicate an error.
The “Occurrence time” field indicates the elapsed time after the time of this “Power ON log (no error).”
(Note) The occurrence time is displayed only on SCON-CA, PCON-CA, ERC3 PIO Converter, MSEP and
MSCON controllers (Version V8.03.00.00 or later, V9.01.00.00 or later for MSEP, V9.02.00.00 or later
for MSCON).
