13. Frequency
Analysis Function for SCON-CA
Controller
Anti-V
ibration Control
216
[3] Read analytical already data file
Select this option if you want to read an existing analytical data file.
You can select a desired existing analytical data file by clicking the file browse button. Or, enter the file
name directly in the file path display/file history field.
Click OK.
If the extension of the file you have read is “fmdrc,” the frequency analysis for vibration control window
appears where you can perform FFT analysis.
If the file extension is “fds,” the “analysis result display” window appears where you can display the
analysis result saved in the file.
This option is selectable regardless of whether the controller is online or offline or regardless of the
model of the connected actuator.
Clicking Cancel closes the measurement data selection window.

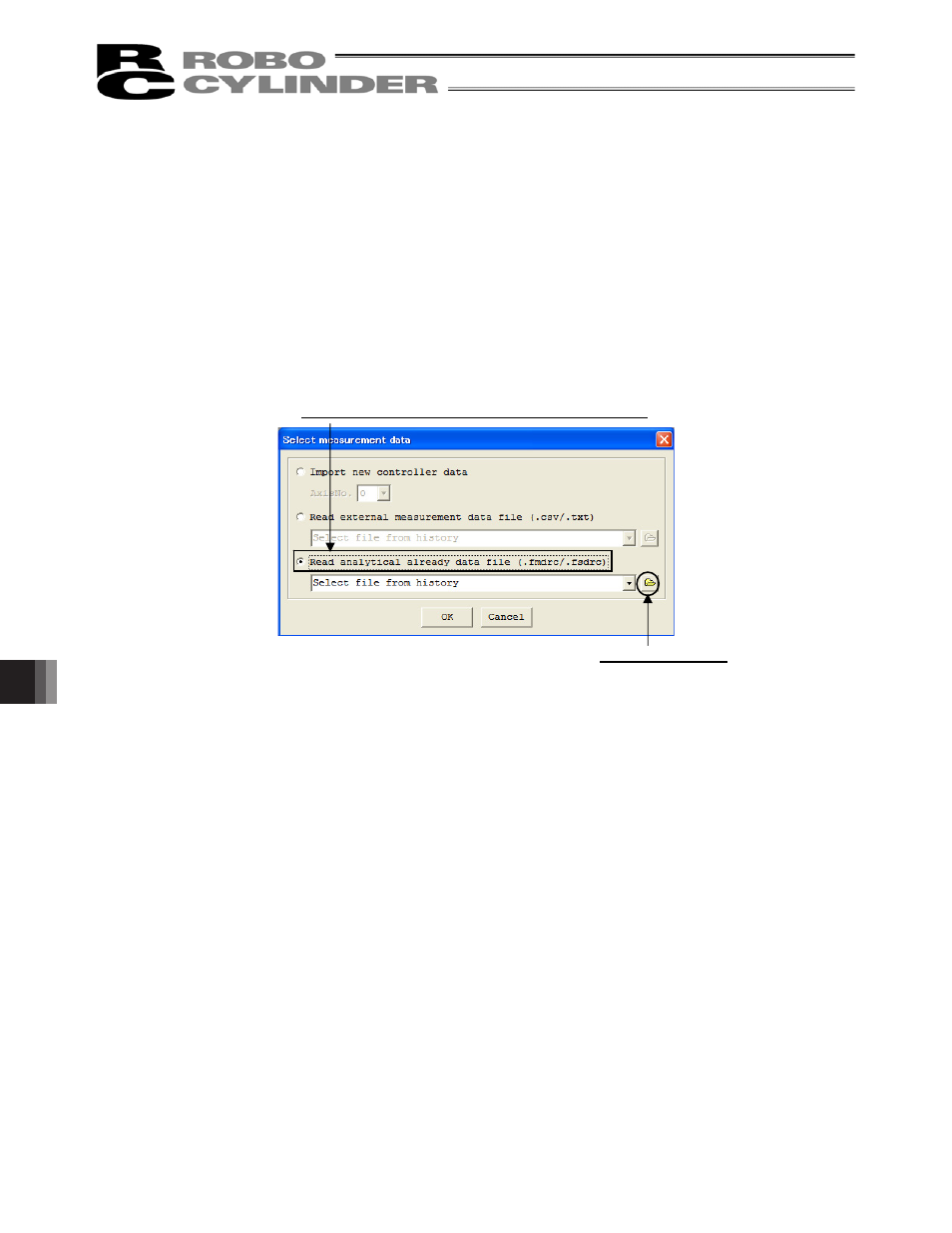

Fig. 13.9 Measurement Data Selection
(“Read Analytical Already Data File” Selected)
[1] Select a file in the file path display/file history field.
[2] File browse button
