5. Editing Position Data on CON Controllers and Older Models
46

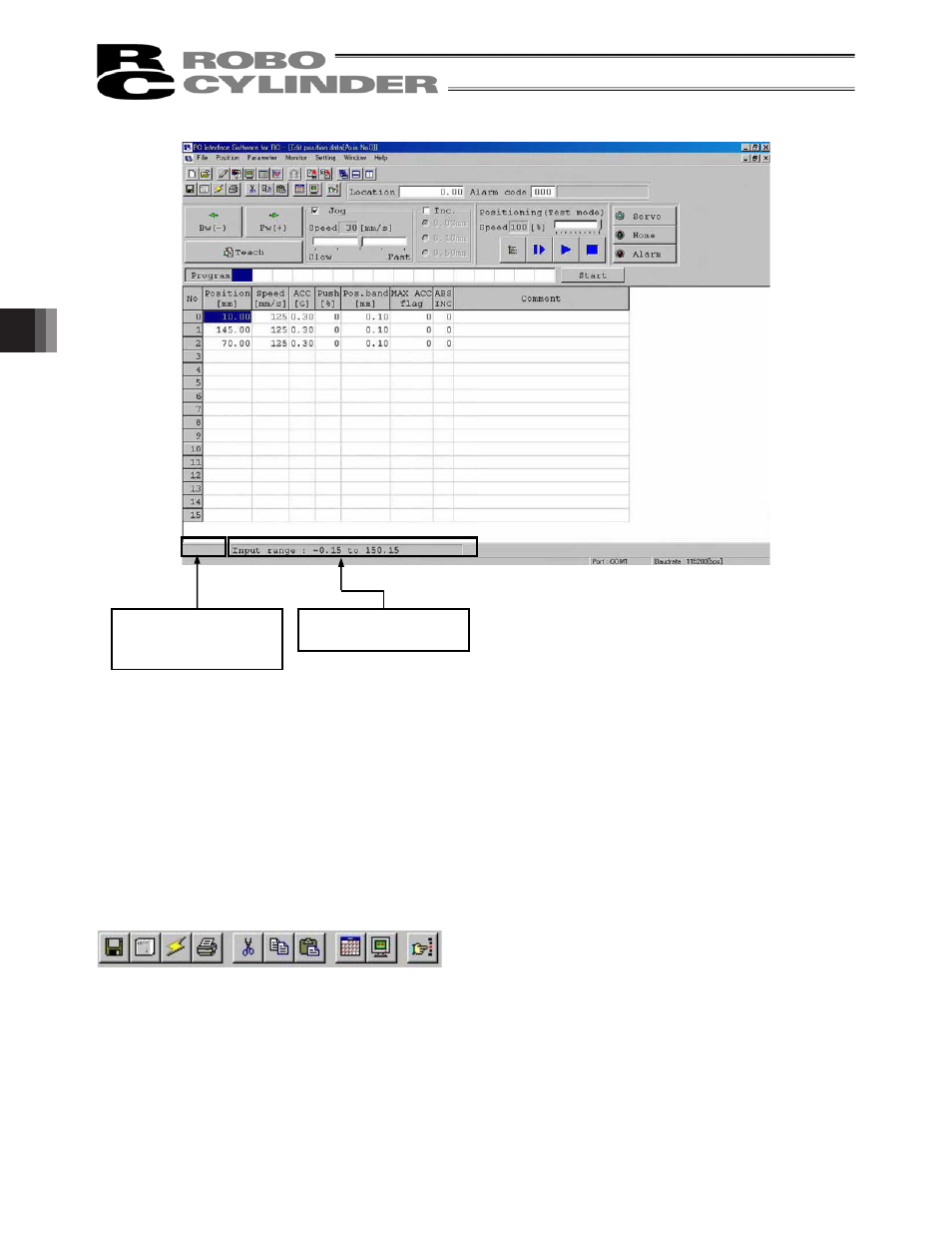

Fig. 5.8 Position Data Edit Window (Detail Display in Online Mode): RCP, RCS, E-Con, RCP2 and ERC
* While the position data edit window of a given axis is open in the online mode, the parameter edit window of
the same axis cannot be opened. (You can open the parameter edit window of any other axis.)
* When the MANU operation mode on the main window is monitor mode 1 or monitor mode 2, this online
mode cannot be executed.
Operations of writing into the controller, jog and home return cannot be performed.
The operating methods of buttons and input controls available in this window are explained below.
(1) Toolbar buttons
[1] [2] [3] [4] [5] [6] [7] [8] [9] [10]
Fig. 5.9 Toolbar in Position Data Edit Window
[1] Save to file
Save data to a file.
[2] Send to controller
Send (write) data to the controller.
The input range of each
item is shown.
“Modified” is shown if a
change has been made
to the loaded data.
