12. Off Board T
uning Function on SCON-CA
Controller
193
12.5.6 Explanations for each Item in Test run Window
A test run of the actuator is available with using the adjusted gain in this window.
(Note) The test run function is available only in the online work. When it is offline the screen shows as shown in
the Fig. 12.44 and the test run function cannot be used.

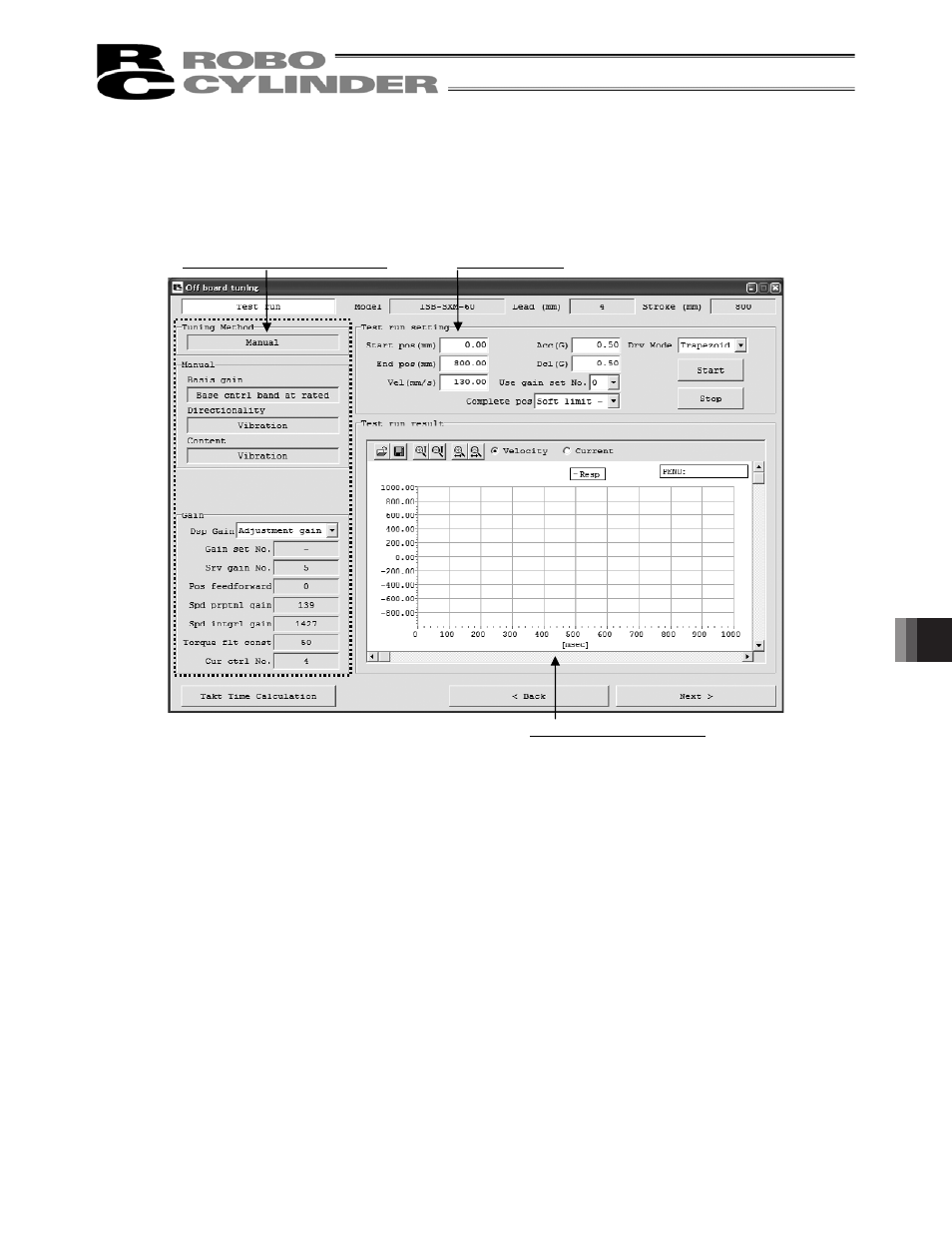

Fig. 12.44 Test run Window (in online work)
[1] Tuning Setting/Result Display [2] Test run setting
[3] Test run result Display
