12.6 Operations in Takt time calculation
To conduct the takt time calculation, click on the
Takt Time Calculation button in the Off board tuning window.
(Note) “Takt time calculation” window can be opened from “Test run” window or “Adjustment record data save”
window.

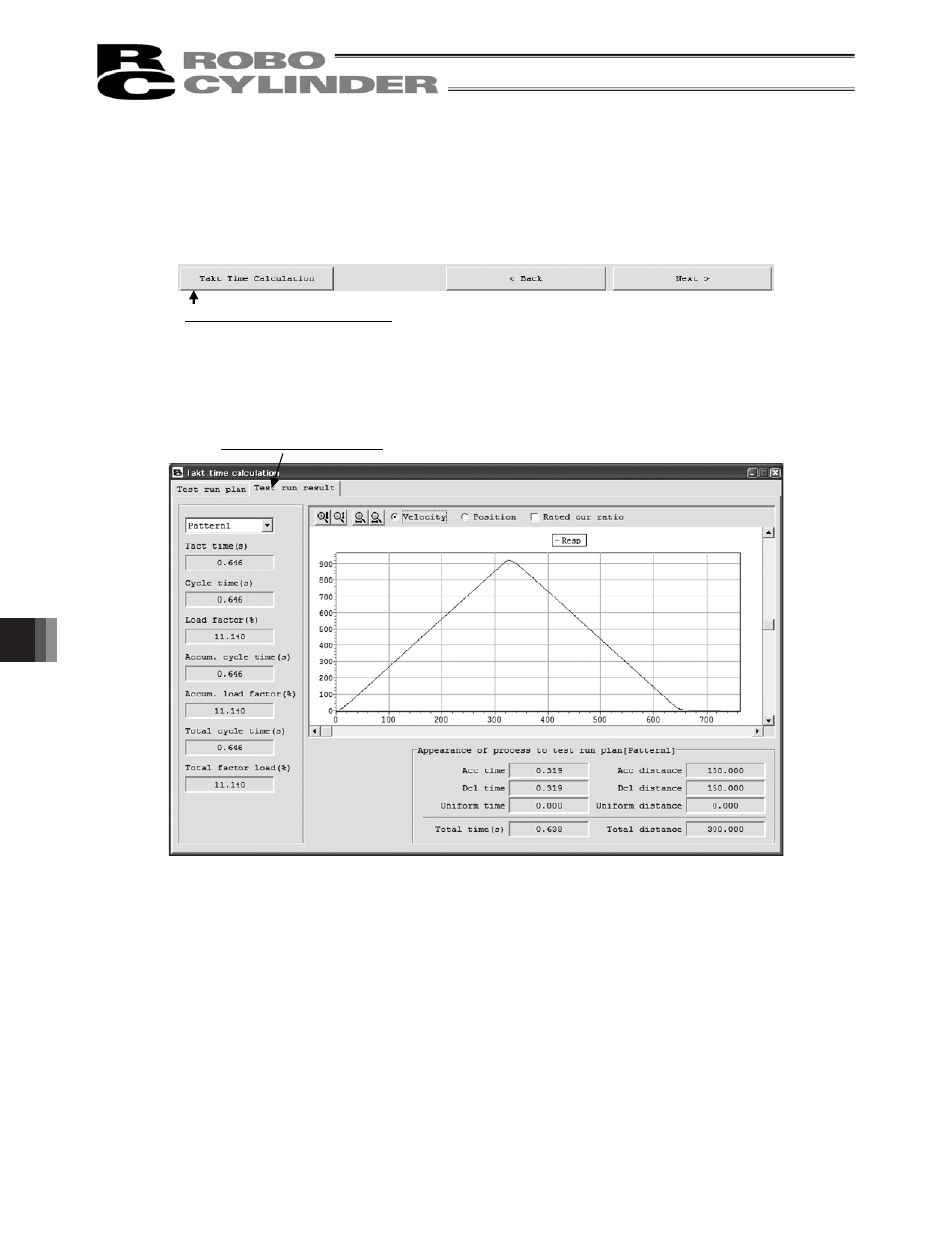

Fig. 12.65 Common Buttons Area in Off board tuning Window
12.6.1 Explanations for each Item in Takt time calculation Window
Takt time calculation can be performed in this window.
Fig. 12.66 Takt time calculation Window (Test run plan Setting Window)
[1] Display Switchover Tab
With these tabs, the displays of “Test run plan Setting” window and “Test run result Display” window can
be switched over.
Takt Time Calculation button
[1] Display Switchover Tab
