3. Main Window
(1) PCON, ACON, SCON, ROBONET, ASEP, PSEP, DSEP, MSEP, MSCON controllers,
ERC2 and ERC3
As shown in Fig. 3.1, the main window consists of main menu, toolbar buttons, tree view and status bar. The
tree view on the left side of the window can be displayed by operation of “Window” o “Tree view” on the menu.
(Initial window: Main menu)

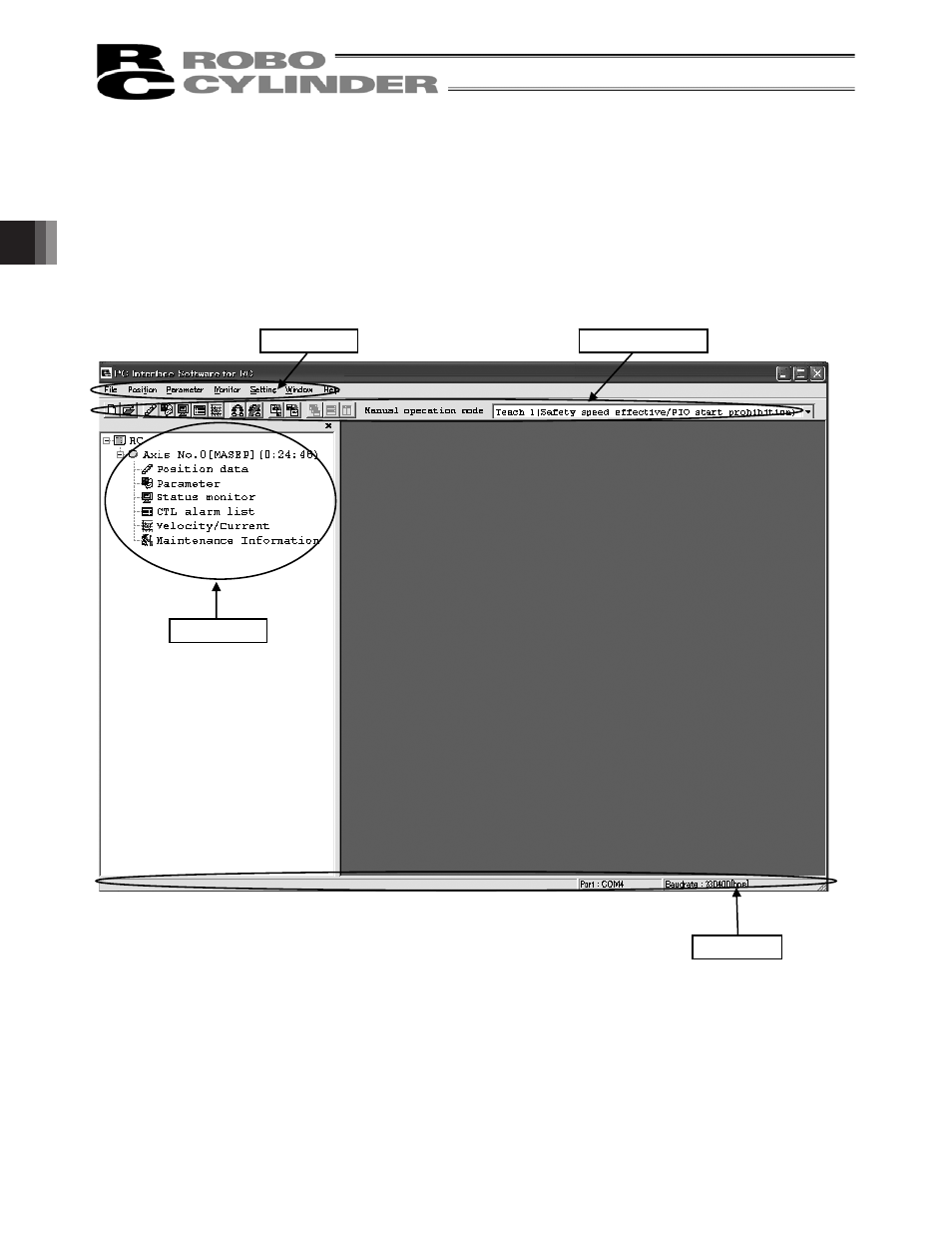

Fig. 3.1 Main Window (Online Window)
Select each item explained in 3.1, “Operating from the Main Menu” or 3.2, “Operations Using the Toolbar
Buttons” from the main menu in the main window (Fig. 3.1) or by clicking the corresponding tool button.
Main menu Toolbar buttons
Tree view
Status bar
