11. Smart T
uning Function (V
ersion V8.03.00.00 or Later)
155
Gain Set No. Select
Select the gain set number that is to be saved as the origin gain. The gain which is set to the controller at
the startup of the Test run and Takt Time Calculation Operation Window can be saved.
Since PCON-CA and ERC3 are not applicable for the gain setting, the only number being able to choose
for Gain Set Number is ‘0’.
When “Select from Adjustment Record” is selected in “Select actuator” window, and if the adjustment
record data before the gain is saved, the origin gain that was saved in the origin gain record can be
saved by selecting “*” in the gain set number window shown below. The gain set to the controller cannot
be saved.

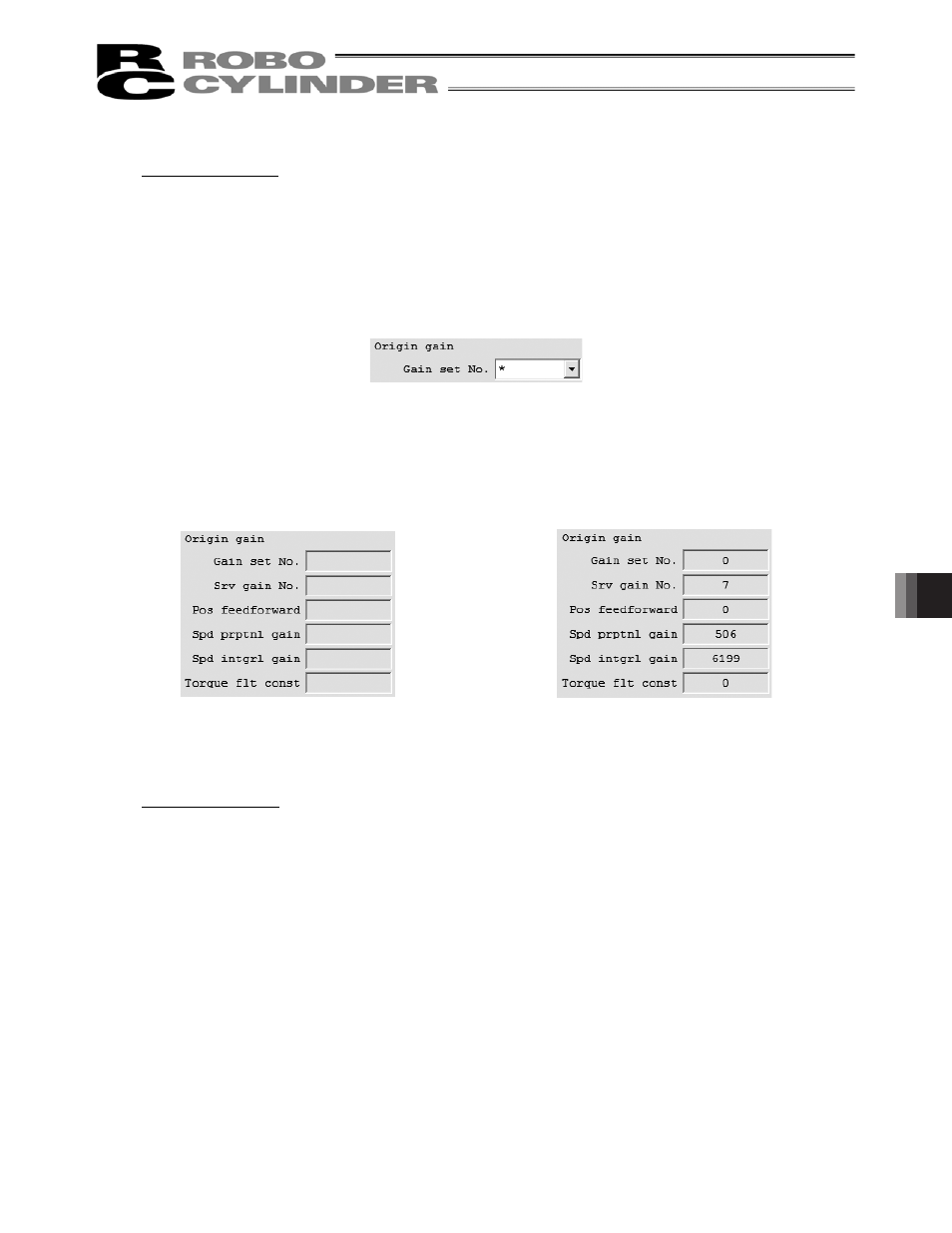

Fig. 11.71 Gain Set Number Select
(When origin gain is saved in adjustment record)
(Note) 㵰*” can be displayed only when the origin gain is saved in the adjustment record data.
(Note) The display of the gain set No. select changes to the one as shown below when it is offline.
Fig. 11.72 Display of Origin gain (Adjustment
record data save Window)
(with no origin gain)
Fig. 11.73 Display of Origin gain (Adjustment
record data save Window)
(with origin gain)
Comment Input Box
A comment to save in the adjustment record can be input. The comment can be made with 32 half-sized
characters at the maximum.
[2] Save new record/Over write present record Button
Save new record Button
Click this button and the adjustment record that is displayed in the adjustment record data display
can be saved as another file.
Over write present record Button
Click this button and the adjustment record at the data number in the adjustment record data display
is overwritten.
(Note) Overwriting is available only after the adjustment record currently displayed is already saved
at least once, or when “Adjustment record” is chosen in “Select actuator” window.
