13. Frequency
Analysis Function for SCON-CA
Controller
Anti-V
ibration Control
242
(4) From the FFT result, select the setting of characteristic vibration frequency to be forwarded to the
controller as a parameter set value, and forward to the controller.
[1] Set the value you want to forward to the controller, in the “Peak Freq” field. Set the axis number and
parameter set number.

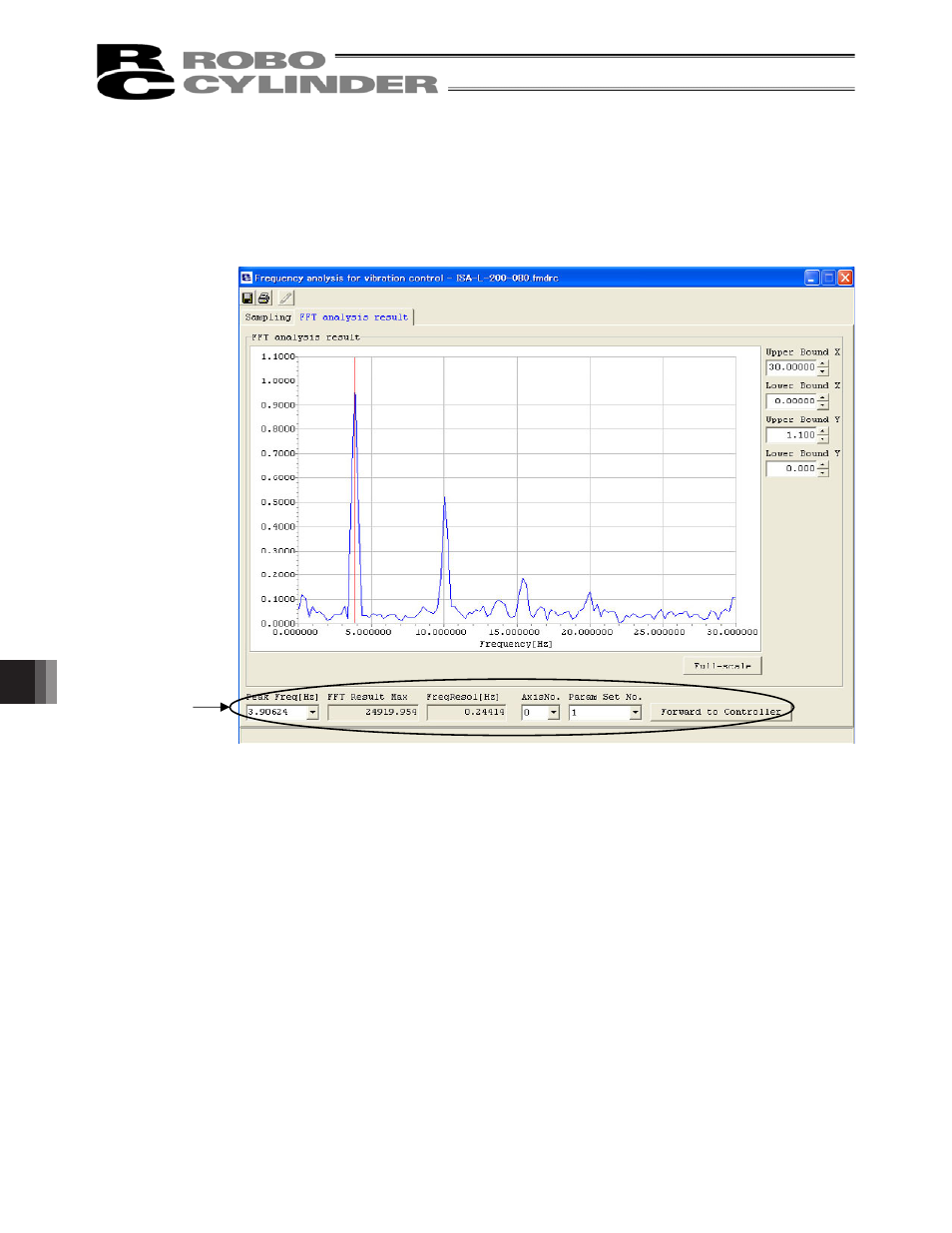

Fig. 13.47 FFT Analysis Result Window
[2] Click the
Forward to Controller button.
[3] When the data has been forwarded to the controller, a confirmation message appears, asking if you
want to restart the controller. Click the
Yes (Y) button to restart the controller.
(Note) The values forwarded to the controller will not be reflected in the vibration control function unless
the controller is restarted.
㵰
Peak Freq” field
