3. Main W
indow
39
3.3 Tree View
From the main menu, click Window, and then select Tree View.

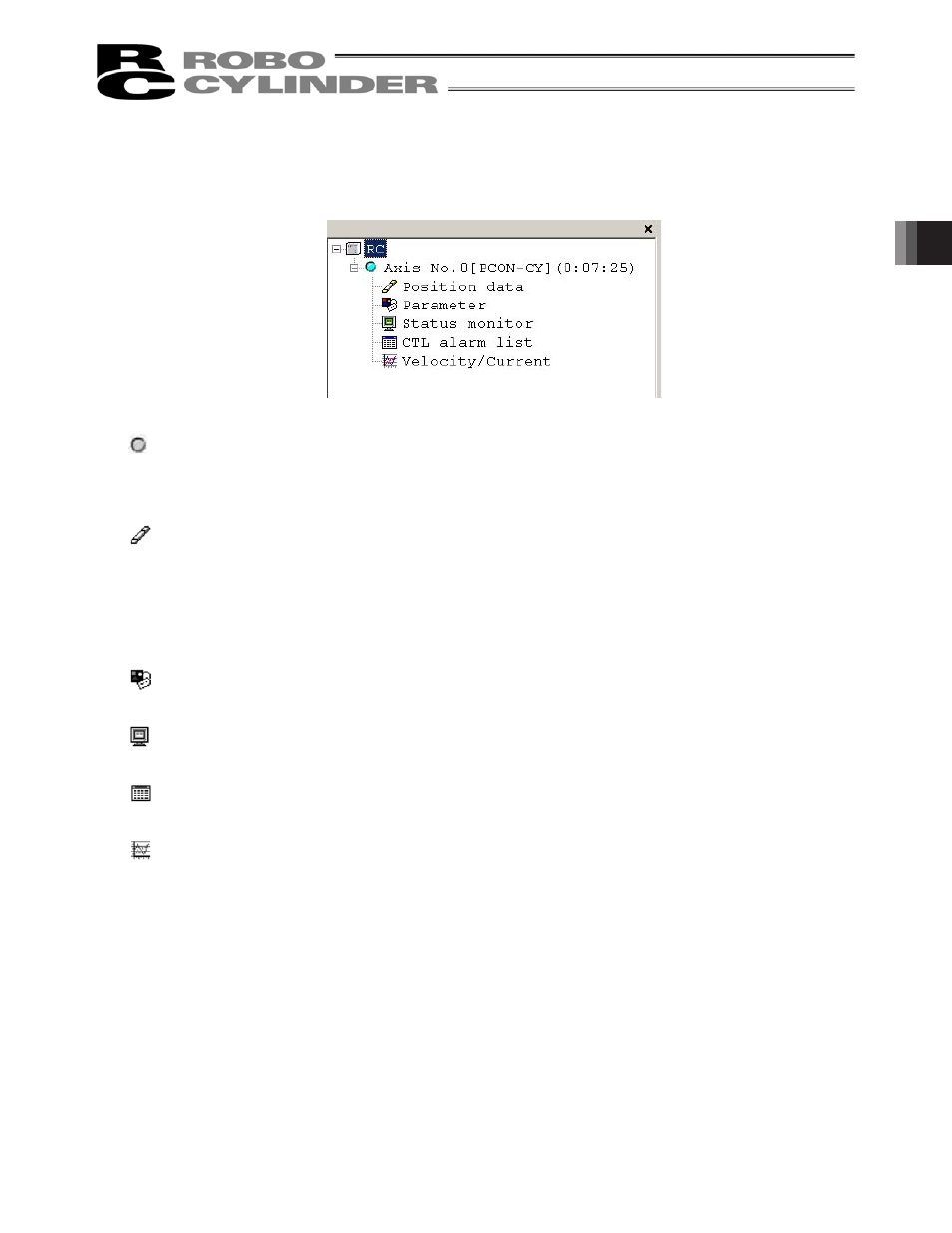

Fig. 3.5 Tree View
[1] Axis No. 0 [PCON-CY]
The axis number of each axis and the corresponding controller model are shown.
A light blue icon is shown if the controller is normal. If the controller is in an error state, a red icon is
shown.
[2] Position data
You can double-click this item to open the position data edit window.
* In the case of pulse sequence mode of PCON-PL/PO, ACON-PL/PO, SCON, PCON-CA and ERC3
position data cannot be entered. For this reason, the JOG window (Fig. 5.7) in which position input
part, tool buttons and simple program line are not displayed is displayed.
(Note) You cannot open the position data edit window and parameter edit window at the same time.
[3] Parameter
You can double-click this item to open the parameter edit window.
[4] Status monitor
You can double-click this item to open the status monitor window.
[5] CTL alarm list
You can double-click this item to open the CTL alarm list window.
[6] Velocity/Current
You can double-click this item to open the velocity/current monitor window.
* The specific tree view will vary depending on the model of the connected controller.
