6. Initial Setting and Position Data Editing for SEP
Controllers
72
6. Initial Setting and Position Data Editing for SEP Controllers
SEP controllers: ASEP, PSEP, DSEP and MSEP
6.1 Initial Setting
Select a desired operation pattern (PIO pattern) (from 0 to 5) and set the necessary operation parameters
(such as selecting the single-solenoid or double-solenoid mode).
(Note) For Fieldbus Type MSEP Controllers, Positioner Mode of Operation Pattern (PIO Pattern) 6 can be
selected. The initial setting is not necessary if Positioner Mode is selected.
Click Setup from the main menu, point to Controller Setup, and then select Initial Setting for SEP
Controller.
If the input password window appears, enter the password.
* On the versions V7.00.03.00 or later, the default password is “0000”, so the input password window will not
appear.
* On the versions V7.00.01.00/V7.00.02.00, the default password is “5119.” Enter “5119” and click the OK
button.

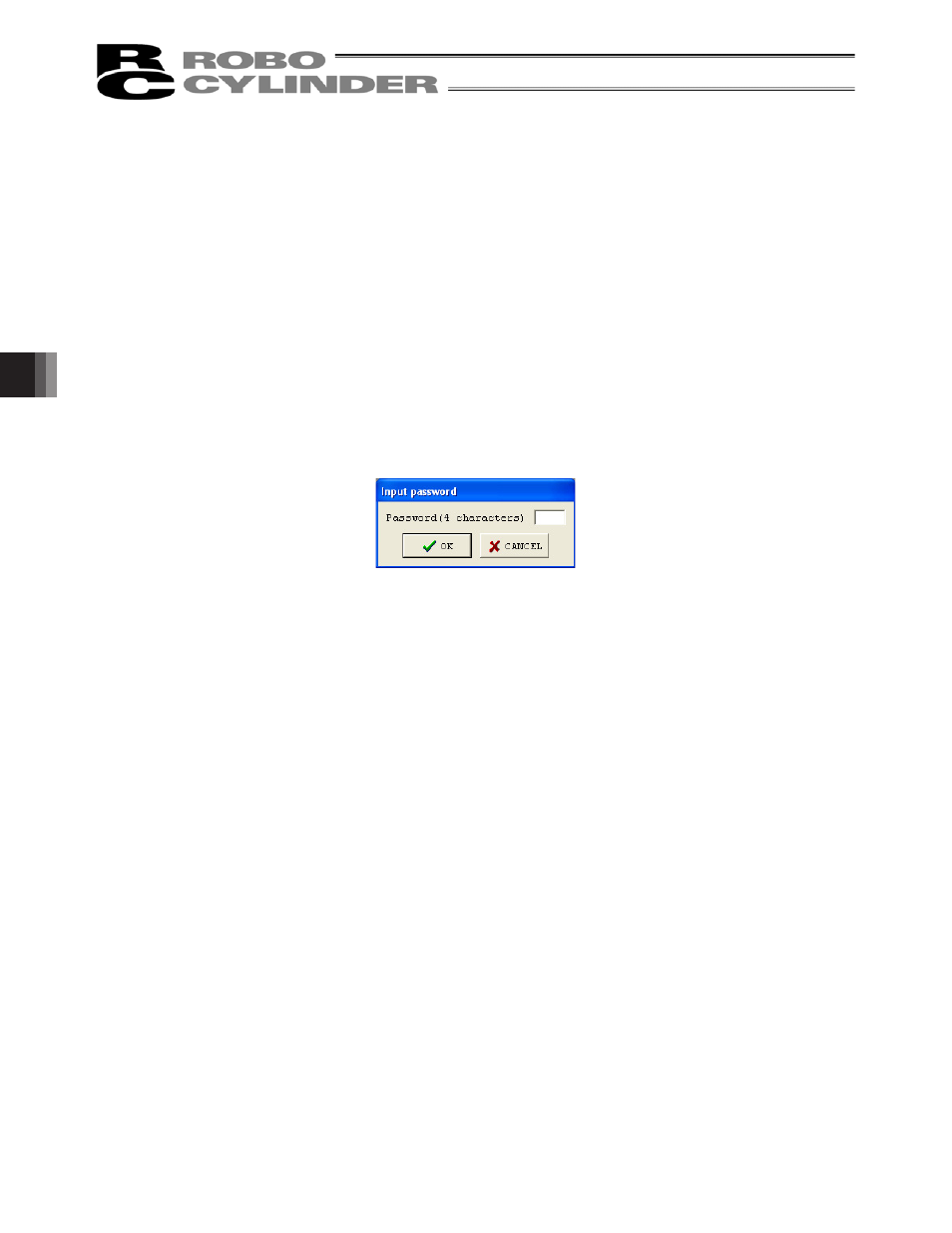

Fig. 6.1 Input Password Window
To change the password, perform the operations explained below.
