12. Off Board T
uning Function on SCON-CA
Controller
198

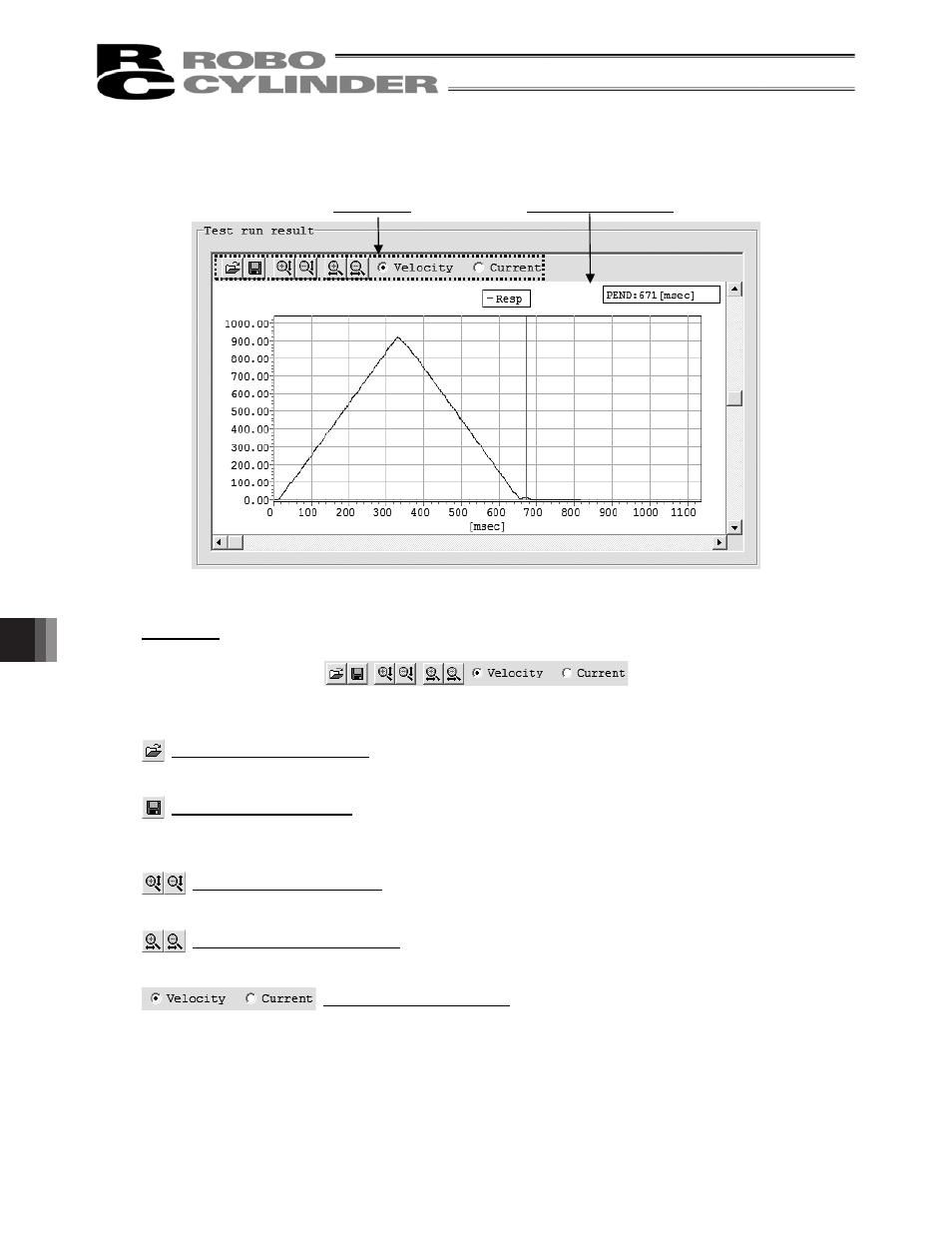

[3] Test Run Result Display
Fig. 12.56 Test run result Display
Tool button
Fig. 12.57 Tool button (Test run Window)
Reading File for Comparison
Click on this button and a file is read and drawn on the same graph to compare with the test run result.
Saving Test run result File
Click this button and the data of the waveforms for the velocity and current for the test run result is saved
as a bsmrc or csv file.
Zoom in/out of Vertical Axis
Click these buttons to zoom in and out the vertical axis of the test run result.
Zoom in/out of Horizontal Axis
Click these buttons to zoom in and out the horizontal axis of the test run result.
Displayed Data Switchover
The data (velocity/current) shown on the test run result graph can be switched over with this radio
button.
Tool button Test run result Graph
