12.5.2 Explanations for each Item in Select actuator Window
Select the model of the actuator for tuning in this window.

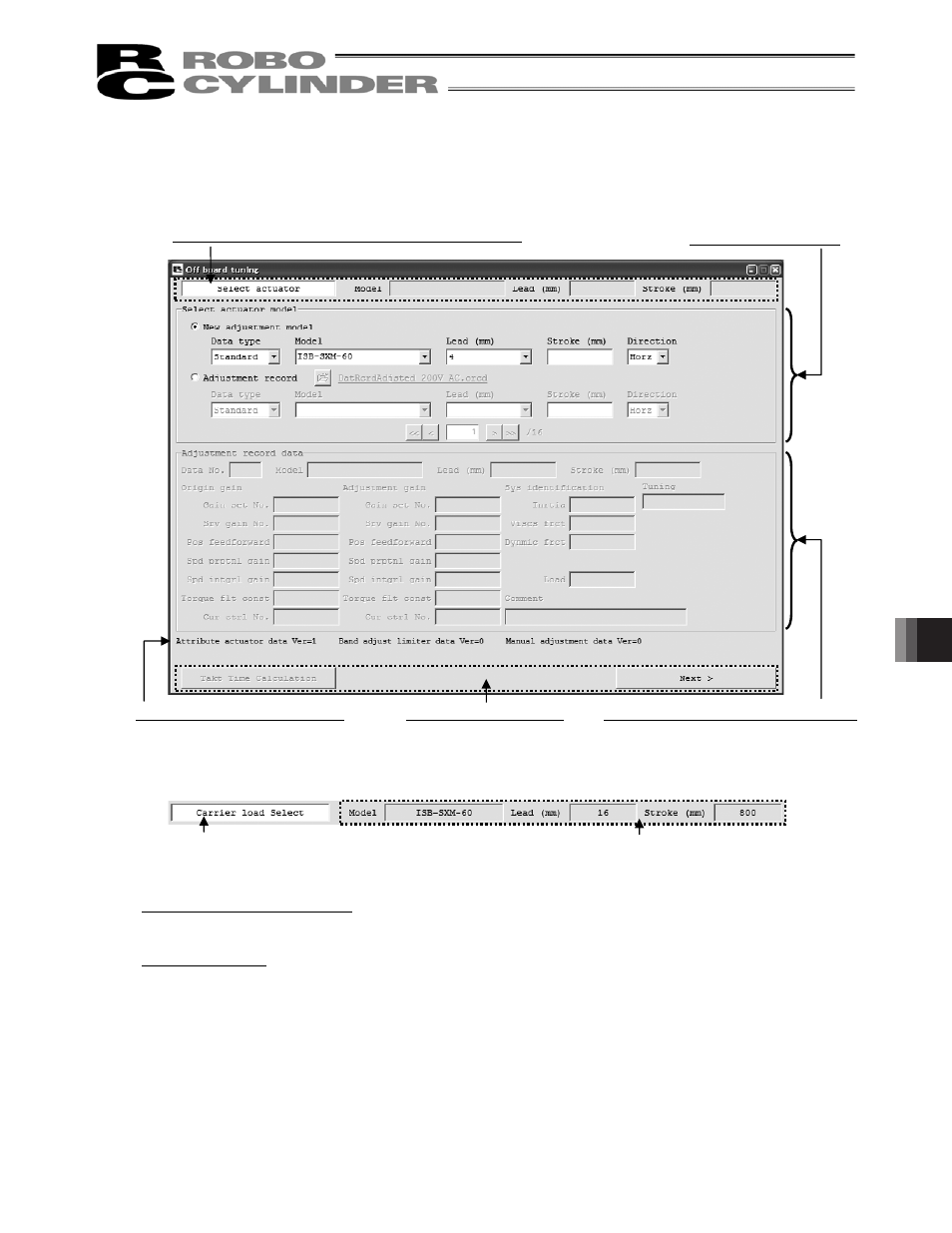

Fig. 12.5 Select actuator Window
[1] Displayed Window/Model Information Display
Fig. 12.6 Displayed Window/Model Information Display
Displayed Window Information
The name of the window currently displayed is shown.
Model Information
The information of actuator selected in “Select actuator” window is shown.
[1] Displayed Window/Model Information Display Area [2] Select actuator model
[3] Adjustment record data Display Area [4] Common Buttons Area [5] Database File Version Display
Displayed Window Information Model Information
