12. Off Board T
uning Function on SCON-CA
Controller
178

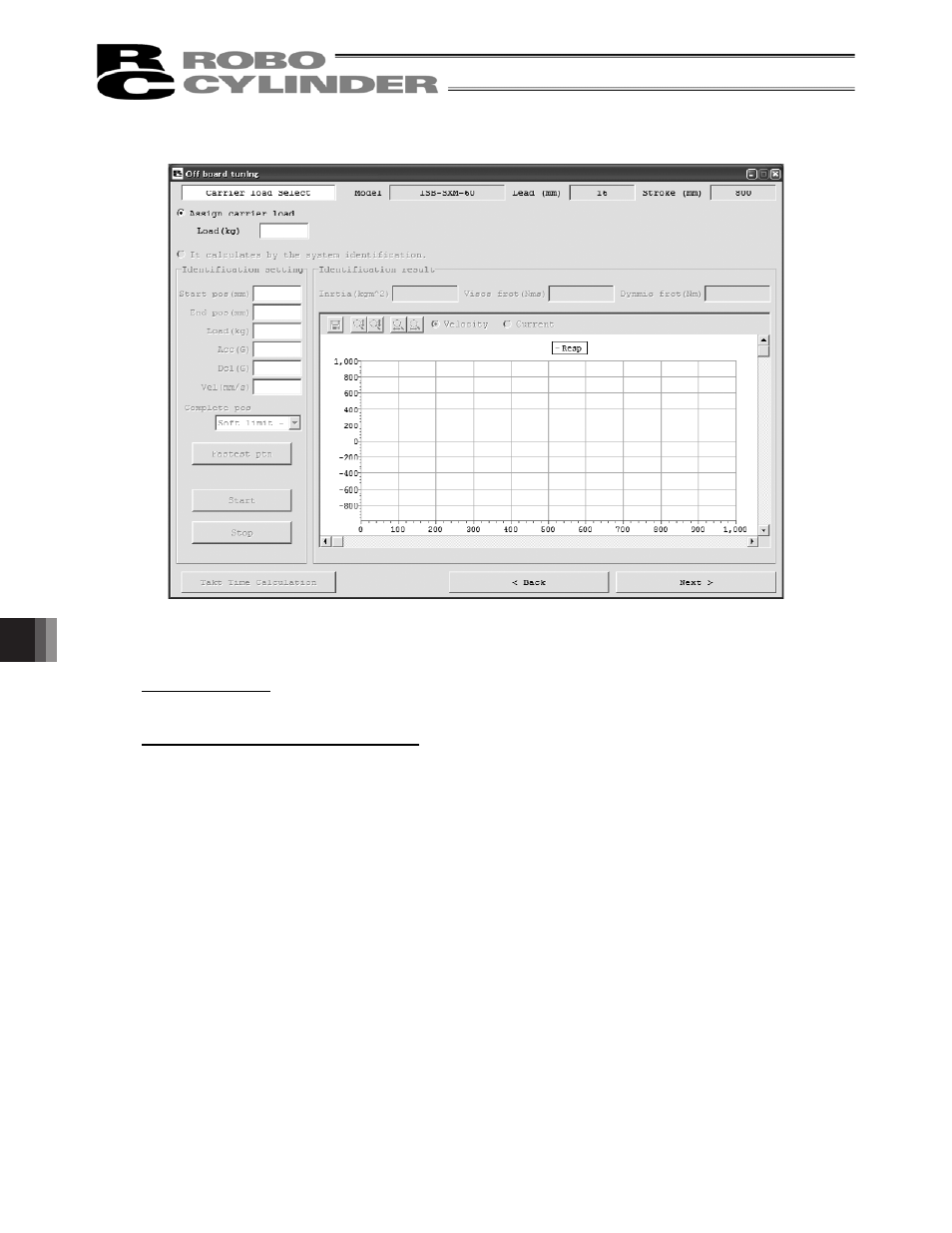

Fig. 12.19 Carrier load Select Window (in offline work)
[1] Carrier Load Indication Method Select
Assign carrier load
Select this radio button and the indicated carrier load can be set.
It calculates by the system identification.
Select this radio button and the actuator actually operates in back and forth directions to estimate the
carrier load from the speed and current data obtained from the controller.
[2] Carrier Load Indication
Carrier load can be set with the numeric value input in Edit in Carrier load Select window 2.
[3] System Identification Setting
Operation setting for the system identification can be conducted.
