5. Editing Position Data on CON Controllers and Older Models
58
[6] LoTh : ‚ In the case of a SCON-CA and PCON-CF controller, the load output signal (PI0) will be
output when the command torque exceeds the value set in the “LoTh” field (%) within
the certification range.
The certification range is set by “Zone+/-.”
Use this signal to determine if a press-fit operation has been successful.
* For details, refer to the operation manual for your PCON-CF controller.

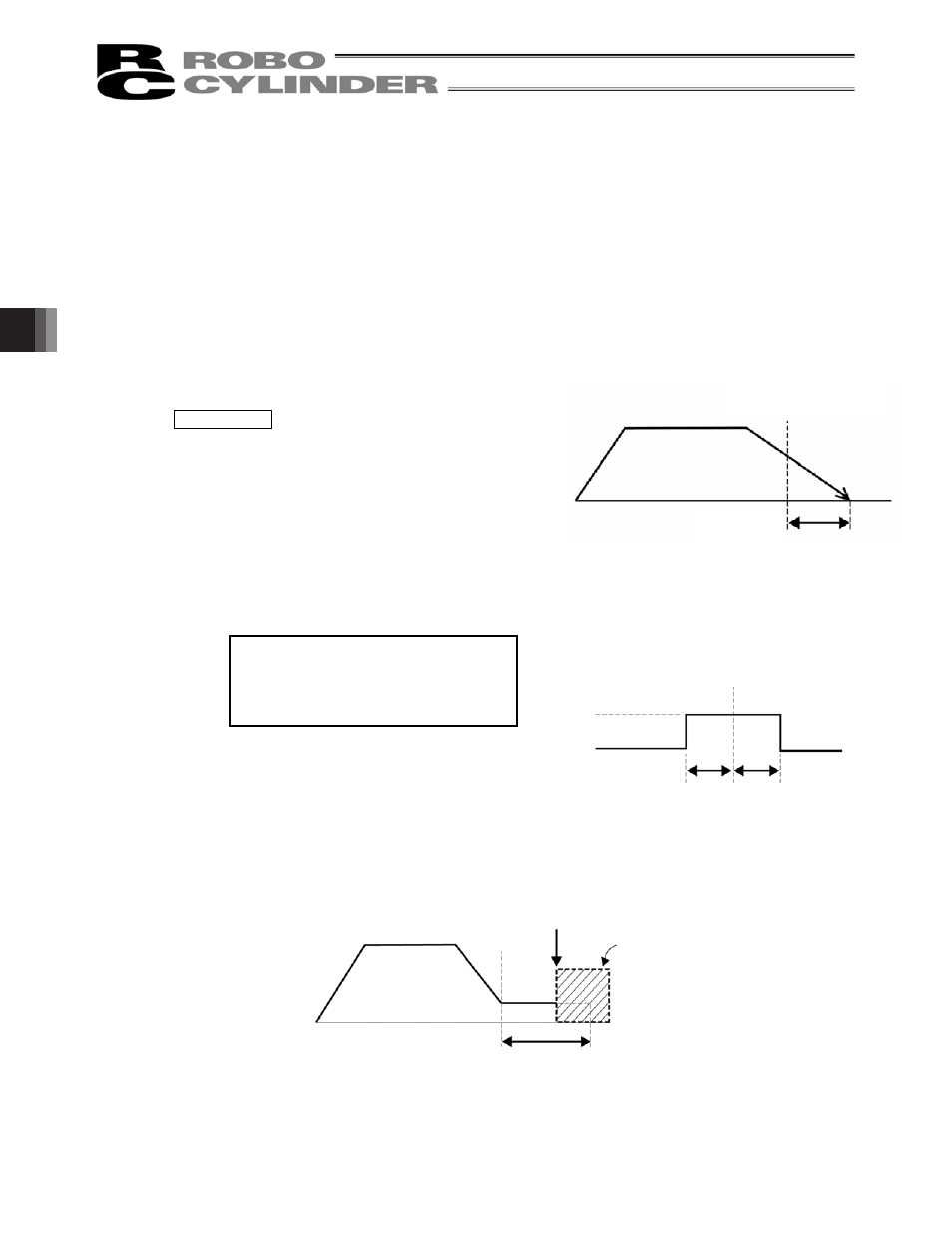

[7] Positioning band : ‚ The “positioning operation” and “push operation” have different meanings.
Positioning operation:
It defines the distance to the target position from a position at which the position
complete signal turns ON.
The default value is 0.1 mm.
Standard type
Note that with a PCON-C/CG/CF, PCON-CA, CF ACON-C/CG, SCON, ERC3 PIO Converter or MSCON
(remote I/O mode) controller operating in solenoid mode 2 or PCON-CY or ACON-CY operating in solenoid
mode 1, you should define the band within which the complete signal will turn ON.
Push operation:
It defines the maximum push amount from the target position in the push operation.
Set the positioning band in such a way as to prevent positioning completion before the
actuator contacts work part by considering mechanical variations of work part.
(Note) For PCON-CA and ERC3, a smaller value than the minimum positioning band width
cannot be set.
Since increasing the positioning band value
hastens the next sequence operation, it
becomes a factor for cycle time reduction. Set
the optimum value by considering the balance
of the entire equipment.
Timing of position
complete signal turning ON
Positioning band
Target
position
Position at which the position complete
signal turns ON when the actuator contacts
work part and push completion is judged
Target
position
Positioning band
(maximum push amount)
Work
part
Target
position
Positioning band
Position complete signal
ON
OFF
PCON-C/CG/CF, PCON-CA, ACON-C/CG,
SCON, ERC3 PIO Converter or MSCON
(remote I/O mode) controller operating in
solenoid mode 2 or PCON-CY or ACON-CY
operating in solenoid mode 0
