DeviceLogix 9-11
1503-UM054C-EN-P – June 2013
DeviceLogix Function Block Elements
Function block elements consist of:
• I/O components: the input and output source of the product, or
I/O information from the network
•
Function block instructions: all types of DeviceLogix instructions.
An instructions I/O path needs to be bound with I/O components
of the inputs and outputs of another instruction
•
Text Comments
I/O Components
In the following sections we will briefly describe each of the I/O
components and include their graphic from the Function Block
Editor.
You can drag each of these I/O components from the instruction
toolbar, or click the icon and have it added to the current schematic,
or select EDIT> Add Element to add the I/O component. Each
newly added I/O component does not have a binding name; you can
click it to display a drop down list related to this component type,
and then select the one you need.
Digital Input Point (DIP)
The following kinds of digital inputs are supported:
•
Physical local Boolean input point
•
Local Boolean fault status
•
Network Boolean input point
•
Local Boolean miscellaneous point

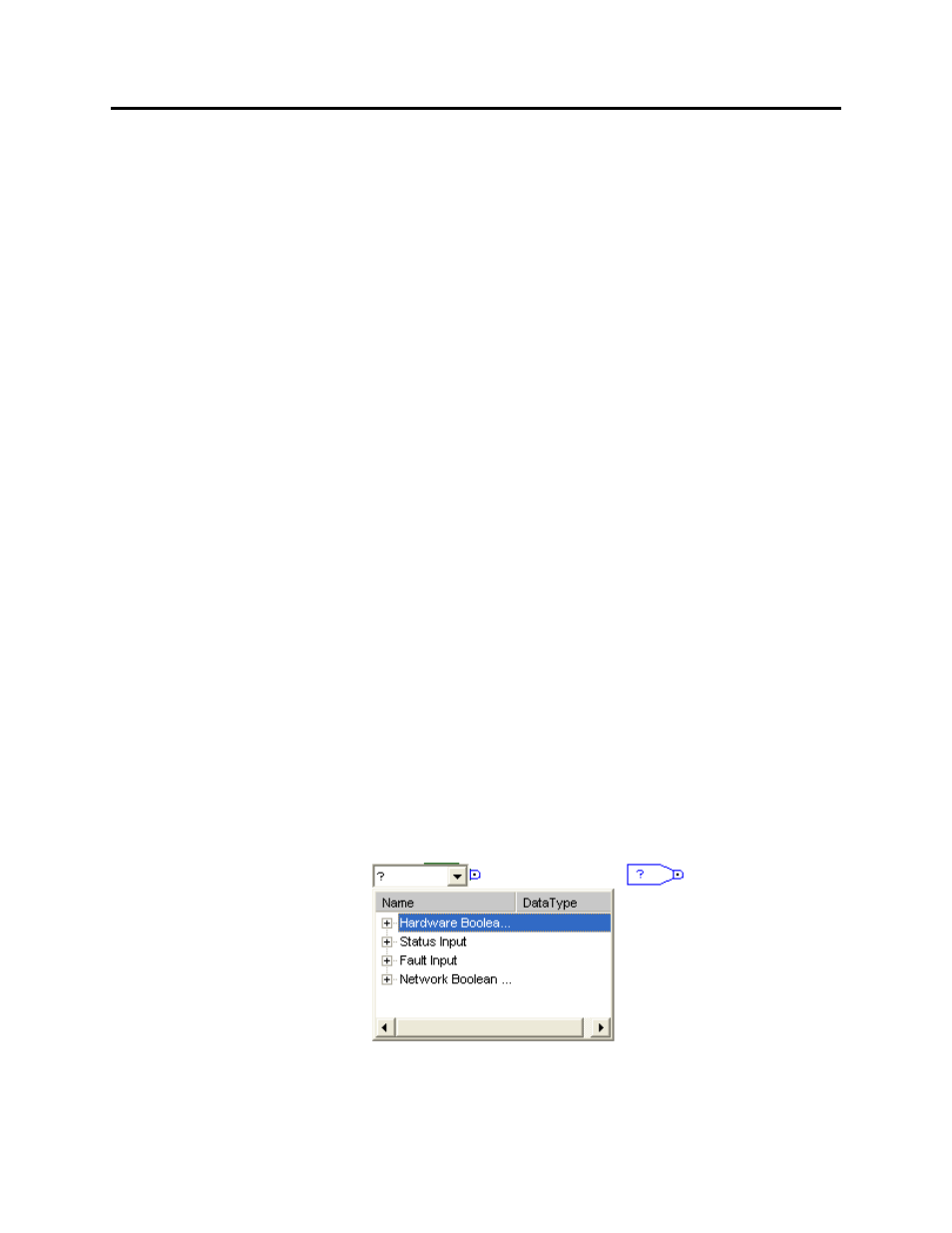

Figure 9.4 – Digital Input Point
