Configuration/Programming 8-5
1503-UM054C-EN-P – June 2013
This function is useful for applications that require a contactor to re-
close after a voltage dip or voltage loss.
This setting is used exclusively to determine the Power-up safety
mode. It cannot be set on the IE module, but can be read from the IB
module.
Table 8.F – Power-Up Safety Configuration
Power-up Safety
DIP SW2
6
Enabled OFF
Disabled ON
Future Use
These DIP switches are not used and are for future use.
Table 8.G – Future Use
Future Use
DIP SW2
7 8
Not used OFF OFF
Not used OFF ON
Not used ON OFF
Not used ON ON
MC Board DIP Switches
Some of the functionality of the IntelliVAC MC product is derived
from the settings of the DIP switches on the MC board.
The DIP switch settings are only read once after a power up
sequence occurs. If changes are to be made to the DIP switch inputs,
then control power must be recycled before the changes will take
affect.

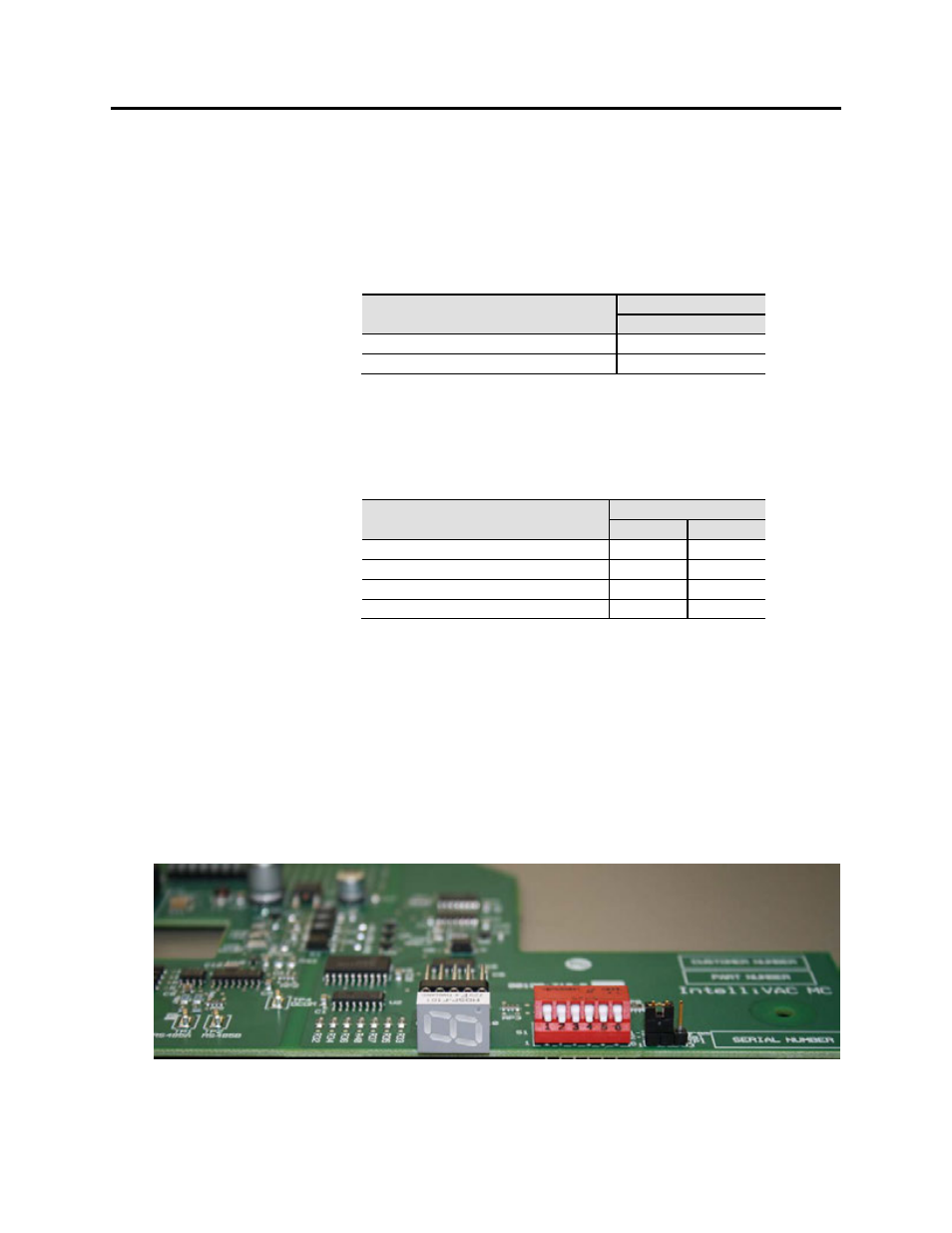

Figure 8.2 – MC Board Configuration DIP Switches
