8-12 Configuration/Programming
1503-UM054C-EN-P – June 2013

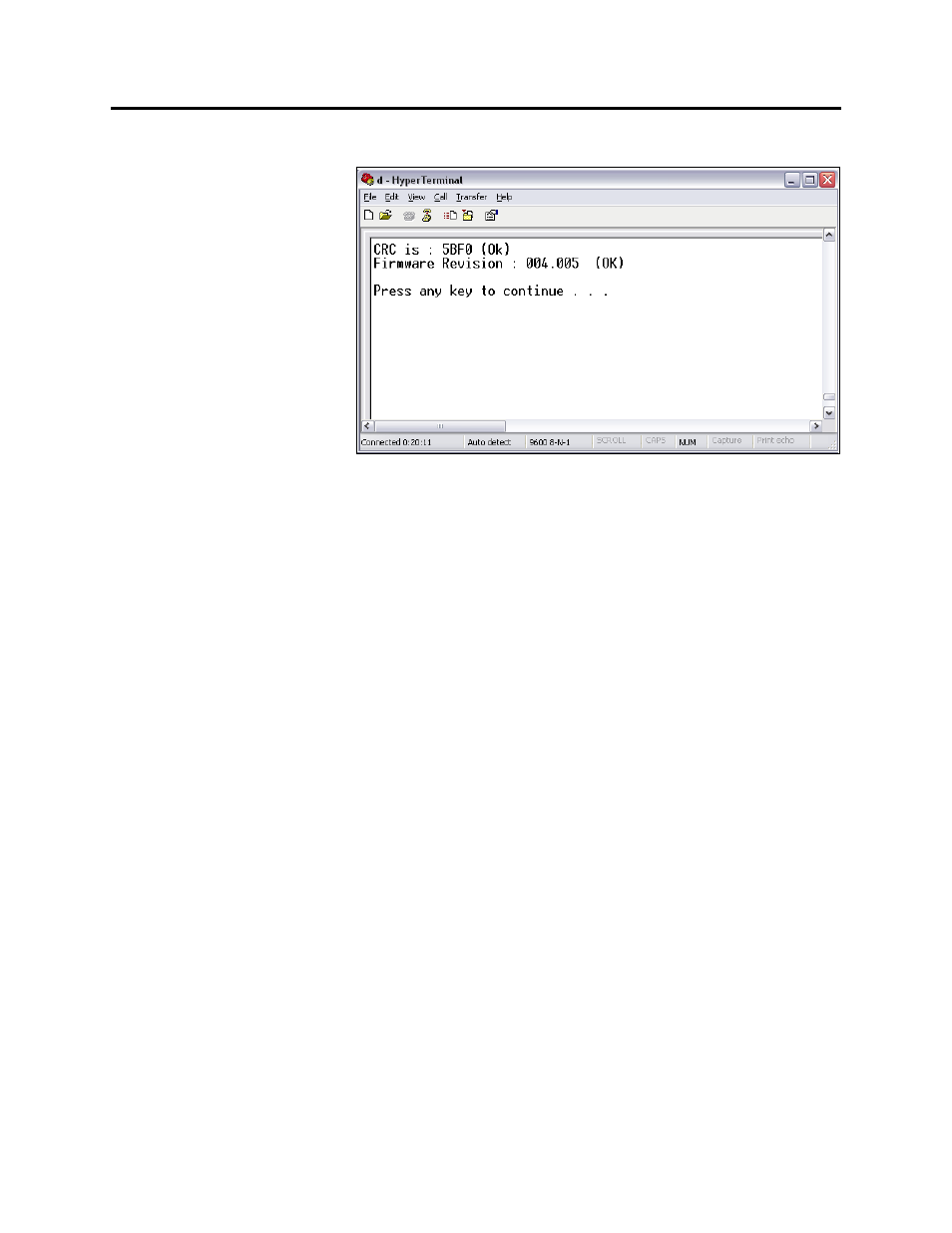

Figure 8.7 – IntelliVAC Base Programming Completed
Upload New Firmware
The upload new firmware option allows the application firmware of
the IntelliVAC to be updated to a new version. The file should be
provided by Rockwell technical support only.
When the “Upload new firmware “option is selected a prompt will
appear to begin an X-MODEM-CRC transfer. The user must:

Click on the “Transfer” menu in the upper right of the Hyper
Terminal screen

Select “send file”

When the dialog box opens select “Xmodem” in the protocol drop
down box

Select browse and select the firmware file provided by Rockwell
technical support

Select “send”
