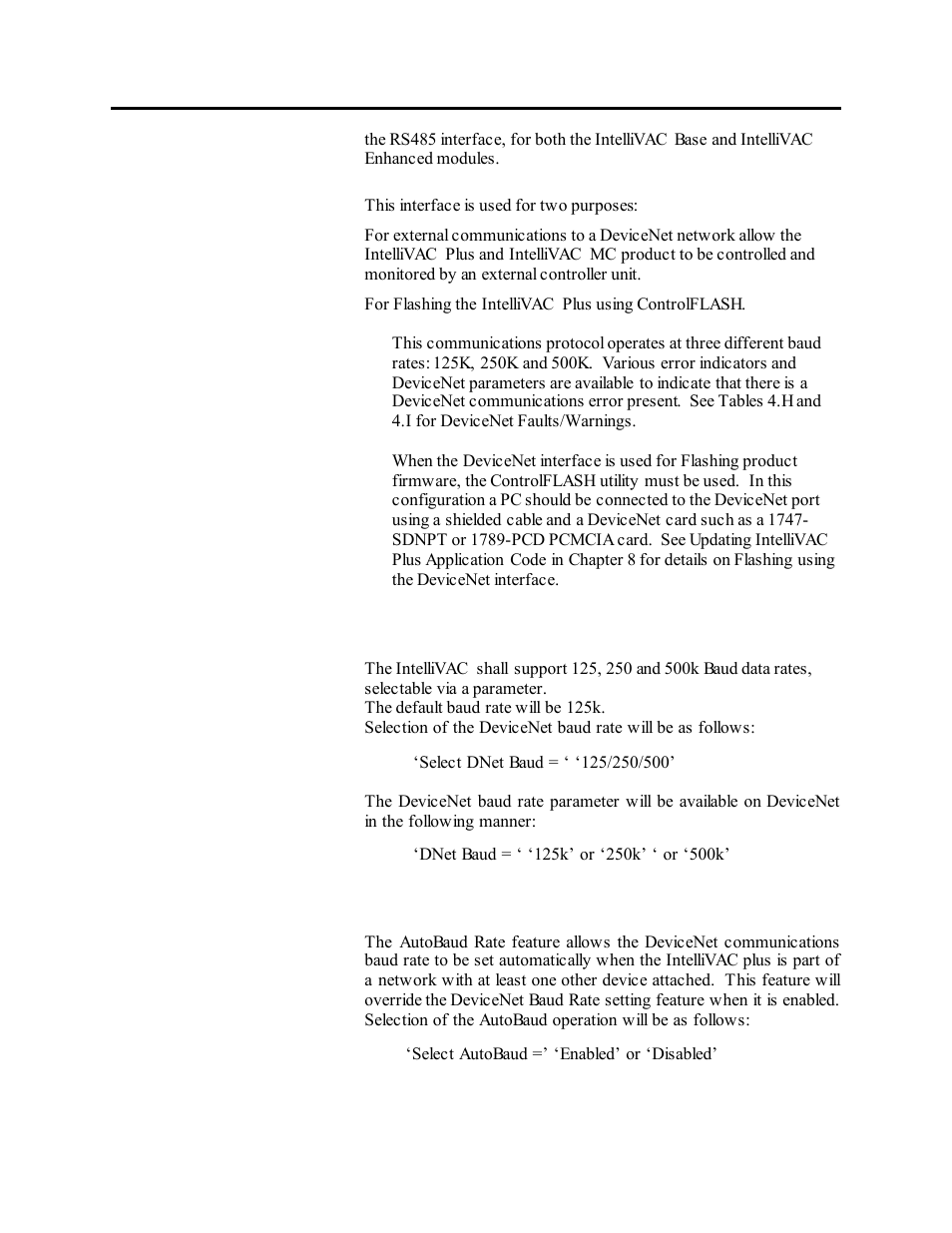

This interface is used for two purposes – Rockwell Automation 1503VC IntelliVAC Plus Contactor Control Module User Manual
Page 101
