CFM monitoring and show commands
6

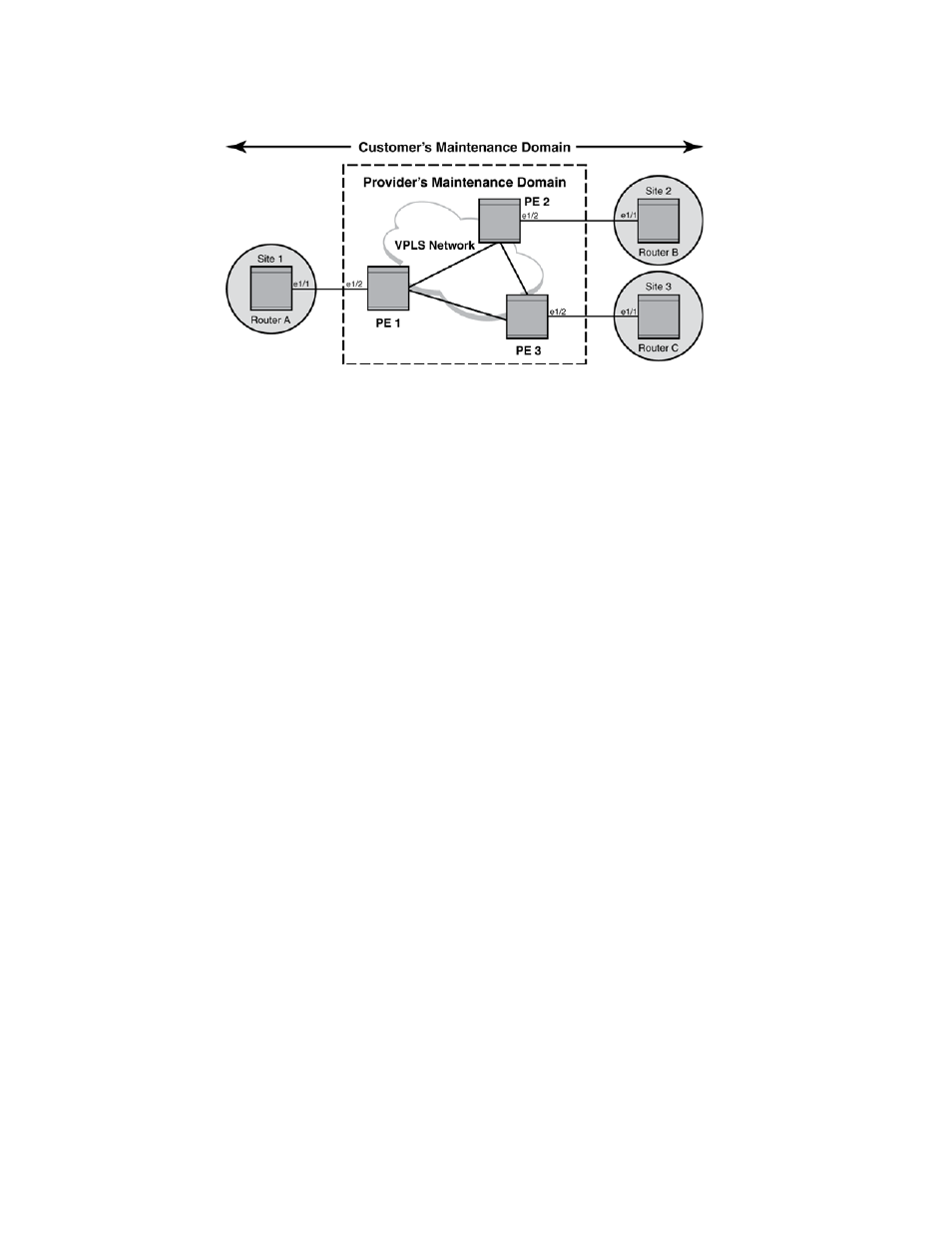

Configuring Router A
CFM configuration steps for Router A are listed below.
1. To enable CFM, enter the following command.
RouterA(config)#cfm-enable
2. Create a maintenance domain with a specified name CUST_1 and level 7.
RouterA(config-cfm)#domain-name CUST_1 level 7
3. Create a maintenance association within a specified domain of vlan-id 30 with a priority 3.
RouterA(config-cfm-md-CUST_1)#ma-name ma_5 vlan-id 30 priority 3
4. Set the time interval between successive Continuity Check Messages to 10-seconds.
RouterA(config-cfm-md-CUST_1-ma-ma_5)#ccm-interval 10-second
5. Configuring a MED for each of the Domain Service Access Points of a service instance creates
a MA to monitor the connectivity. Add ethernet port 1/1 to a specified maintenance
association.
RouterA(config-cfm-md-CUST_1-ma-ma_5)#mep 2 down vlan 30 port ethe 1/1
Configuring Router B
CFM configuration steps for Router B are listed below.
1. To enable CFM for VPLS, enter the following command.
RouterB(config)#cfm-enable
2. Create a maintenance domain with a specified name CUST_1 and level 7.
RouterB(config-cfm)#domain-name CUST_1 level 7
3. Create a maintenance association within a specified domain of vlan-id 30 with a priority 5.
RouterB(config-cfm-CUST_1)#ma-name ma_5 vlan-id 30 priority 5
4. Set the time interval between successive Continuity Check Messages to 10-seconds.
RouterB(config-cfm-md-CUST_1-ma-ma_5)#ccm-interval 10-second
5. Configuring a MED for each of the Domain Service Access Points of a service instance creates
a MA to monitor the connectivity. Add ethernet port 1/1 as MEP to a specified maintenance
association.
