Configuration example 3 – Brocade Multi-Service IronWare Administration Guide (Supporting R05.6.00) User Manual
Page 111
Multi-Service IronWare Administration Guide
93
53-1003028-02
Configuration examples
3
Configuration example 3

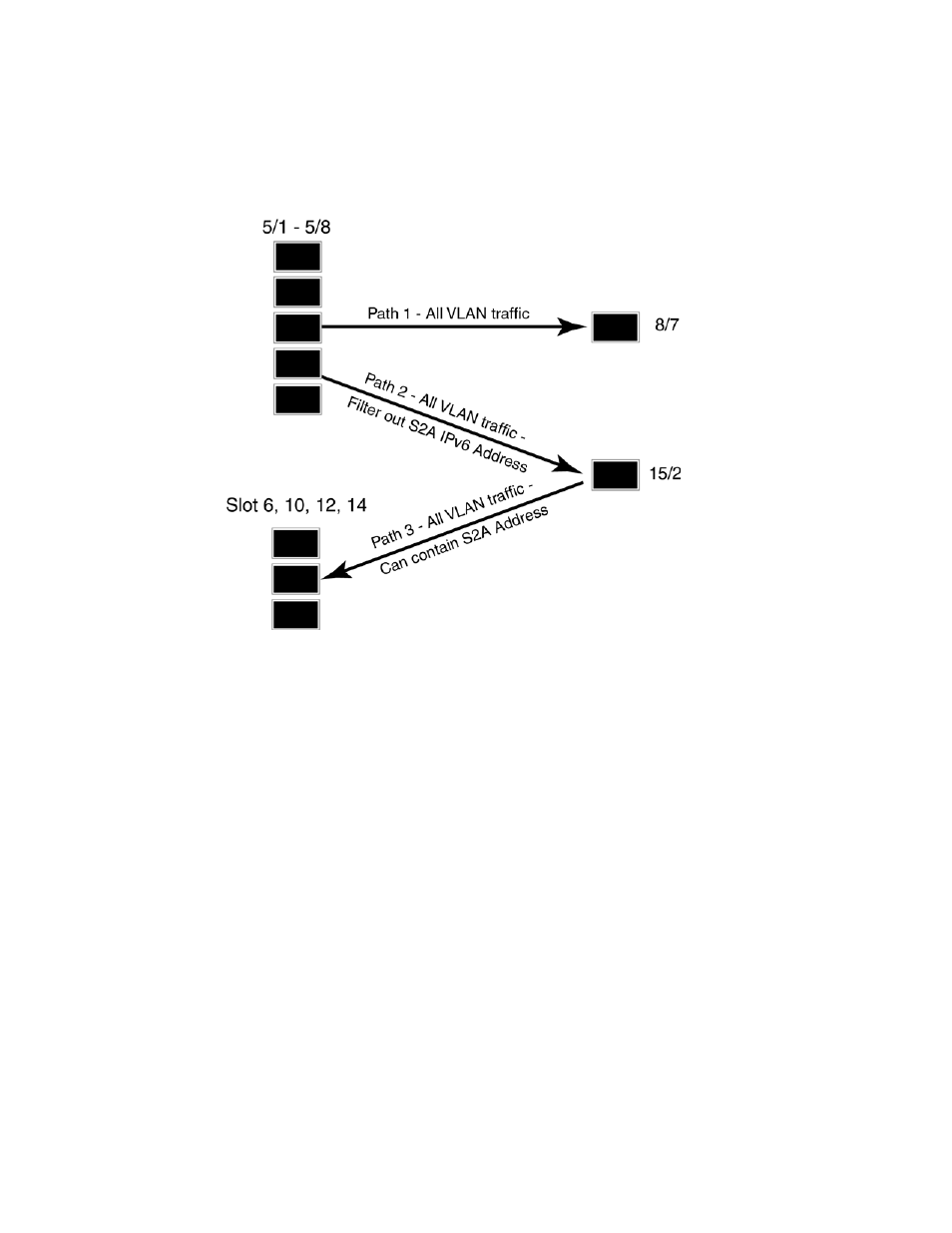

FIGURE 6
Configuration example 3
Define ACL configurations
ipv6 access-list S2A_traffic
permit vlan 2011 ipv6 2001:db8:200:1001:194:200::/96 any
permit vlan 2012 ipv6 2001:db8:200:1001:194:200::/96 any
permit vlan 2015 ipv6 2001:db8:200:1001:194:200::/96 any
permit vlan 2016 ipv6 2001:db8:200:1001:194:200::/96 any
permit vlan 2405 ipv6 2001:db8:200:1001:194:200::/96 any
permit vlan 2435 ipv6 2001:db8:200:1001:194:200::/96 any
ipv6 access-list Non_S2A_Traffic
permit ipv6 any any
ip access-list extended Non_S2A_Traffic
permit ip any any
Associate Traffic ACL with S2A map
route-map S2A permit 1
rule-name S2A_Path
match ipv6 address S2A_Traffic
set interface ethernet 8/7 preserve-vlan
route-map S2A permit 2
rule-name All-Traffic
match ip address Non_S2A_Traffic
match ipv6 address Non_S2A_Traffic
set next-hop-flood-vlan 2 preserve-vlan
