IFS NS3601-24P/4S GE-DSSG-244 and 244-POE User Manual

88

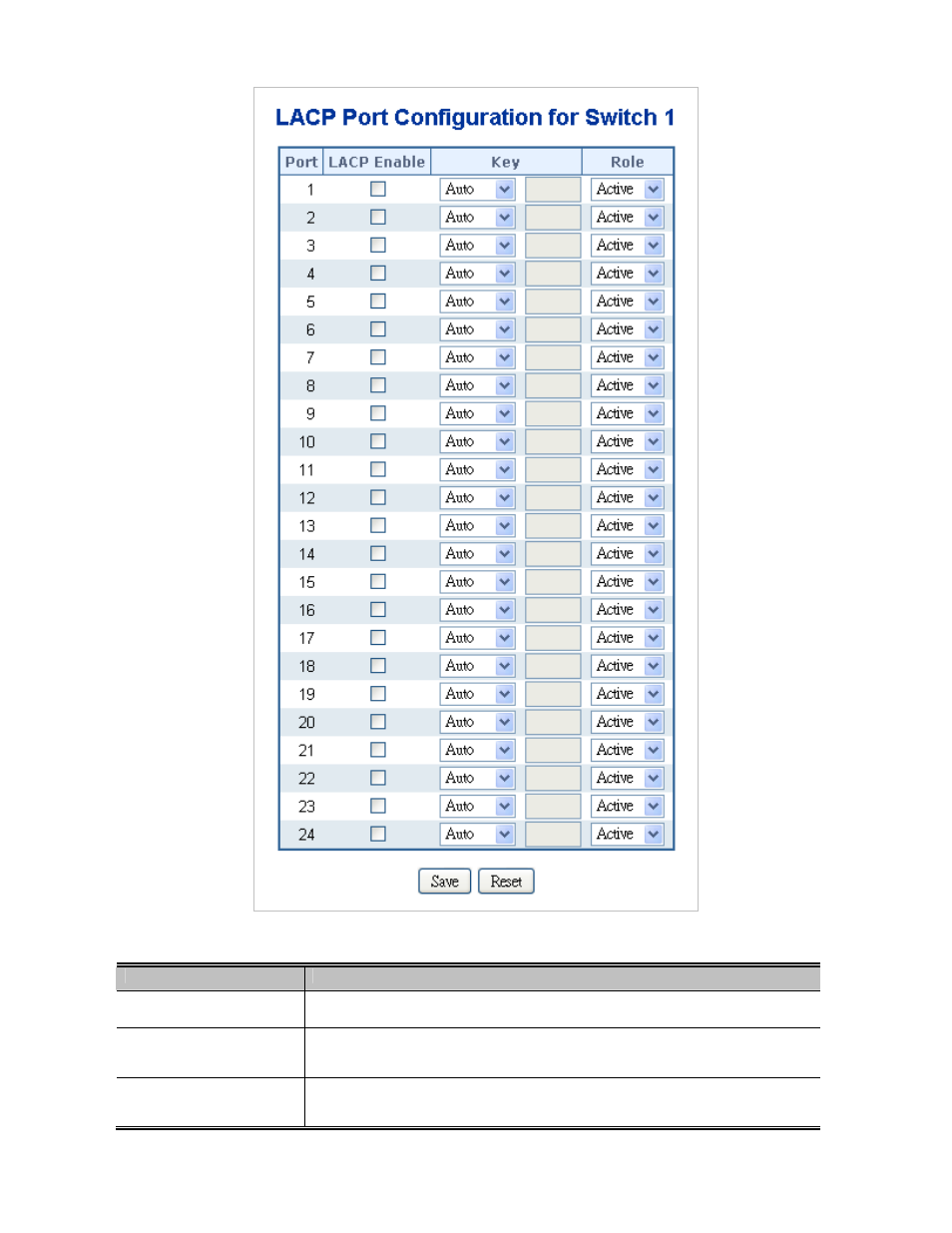

Figure 4-5-4

LACP Port Configuration page screenshot

The page includes the following fields:

Object

Description

Port

The switch port number.

LACP Enabled

Controls whether LACP is enabled on this switch port. LACP will form an
aggregation when 2 or more ports are connected to the same partner. LACP can
form max 12 LLAGs per switch and 2 GLAGs per stack.

Key

The Key value incurred by the port, range 1-65535 . The Auto setting will set the
key as appropriate by the physical link speed, 10Mb = 1, 100Mb = 2, 1Gb = 3.
Using the Specific setting, a user-defined value can be entered. Ports with the
