IFS NS3601-24P/4S GE-DSSG-244 and 244-POE User Manual

109

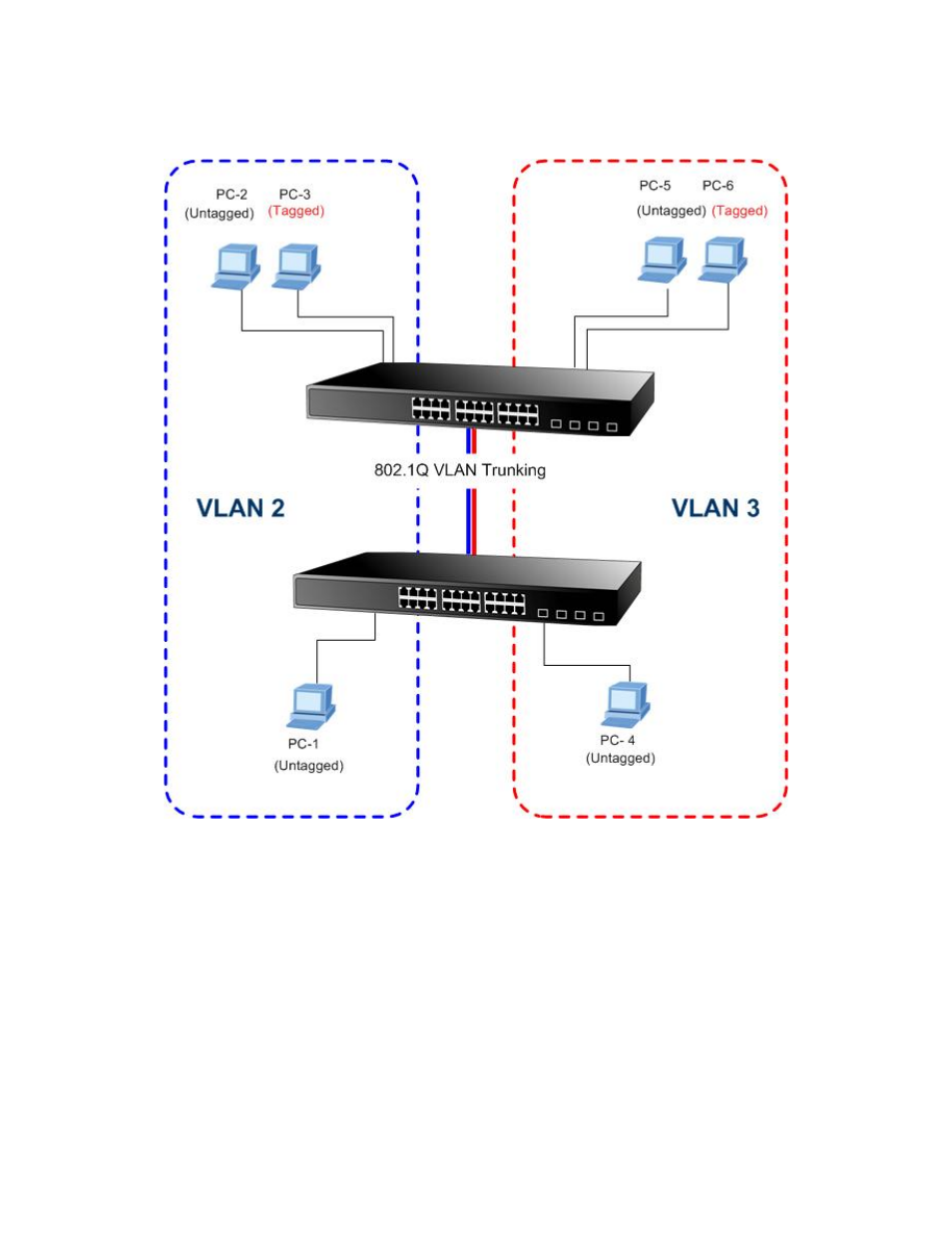

VLAN Trunking between two 802.1Q aware switch

The most cases are used for “Uplink” to other switches. VLANs are separated at different switches, but they need to access with
other switches within the same VLAN group. The screen is shown

Figure 4-6-11.

Setup steps

1. Create

VLAN

Group

Set VLAN Group 1 = Default-VLAN with VID (VLAN ID) =1
Add two VLANs – VLAN 2 and VLAN 3

VLAN Group 2 with VID=2
VLAN Group 3 with VID=3

2. Assign VLAN Member :

VLAN 2 : Port-1,Port-2 and Port-3
VLAN 3 : Port-4, Port-5 and Port-6
VLAN 1 : All other ports – Port-7~Port-24

About the VLAN ports connect to the hosts, please refer to 4.6.10.1 examples. The following steps will focus on the VLAN Trunk
port

configuration.

1. Specify

Port-8

to be the 802.1Q VLAN Trunk port.

2. Assign

Port-8

to both VLAN 2 and VLAN 3 at the VLAN Member configuration page.

3. Define

a

VLAN 1

as a “Public Area” that overlapping with both VLAN 2 members and VLAN 3 members.
