IFS NS3601-24P/4S GE-DSSG-244 and 244-POE User Manual

79

Buttons

: Download the port statistics overview.

: Click to refresh the page immediately.

: Clears the counters for all ports.

: Print out the port statistics overview.

Auto-refresh

: Check this box to enable an automatic refresh of the page at regular intervals.

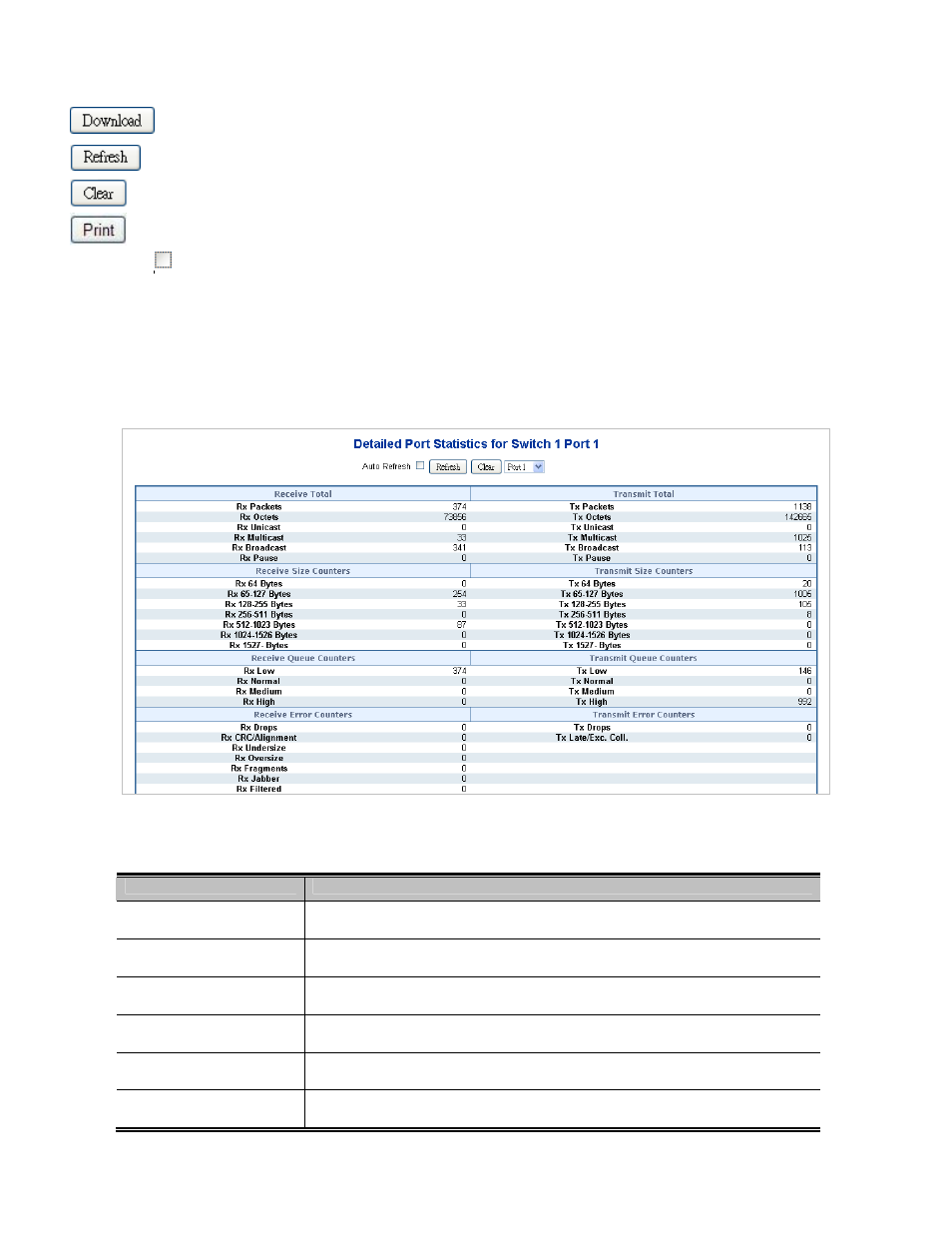

Port Statistics Detail

This page provides detailed traffic statistics for a specific switch port. Use the port select box to select which switch port details to
display. The selected port belong to the currently selected stack unit, as reflected by the page header. The displayed counters are
the totals for receive and transmit, the size counters for receive and transmit, and the error counters for receive and transmit. The
Detailed Port Statistics screen is shown

Figure 4-4-3.

Figure 4-4-3

Detailed Port Statistics Port 1 page screenshot

The page includes the following fields:

Receive Total and Transmit Total

Object

Description

Rx and Tx Packets

The number of received and transmitted (good and bad) packets

Rx and Tx Octets

The number of received and transmitted (good and bad) bytes. Includes FCS, but
excludes framing bits.

Rx and Tx Unicast

The number of received and transmitted (good and bad) unicast packets.

Rx and Tx Multicast

The number of received and transmitted (good and bad) multicast packets.

Rx and Tx Broadcast

The number of received and transmitted (good and bad) broadcast packets.

Rx and Tx Pause

A count of the MAC Control frames received or transmitted on this port that have
an opcode indicating a PAUSE operation.
