IFS NS3601-24P/4S GE-DSSG-244 and 244-POE User Manual

143

Figure 4-9-1

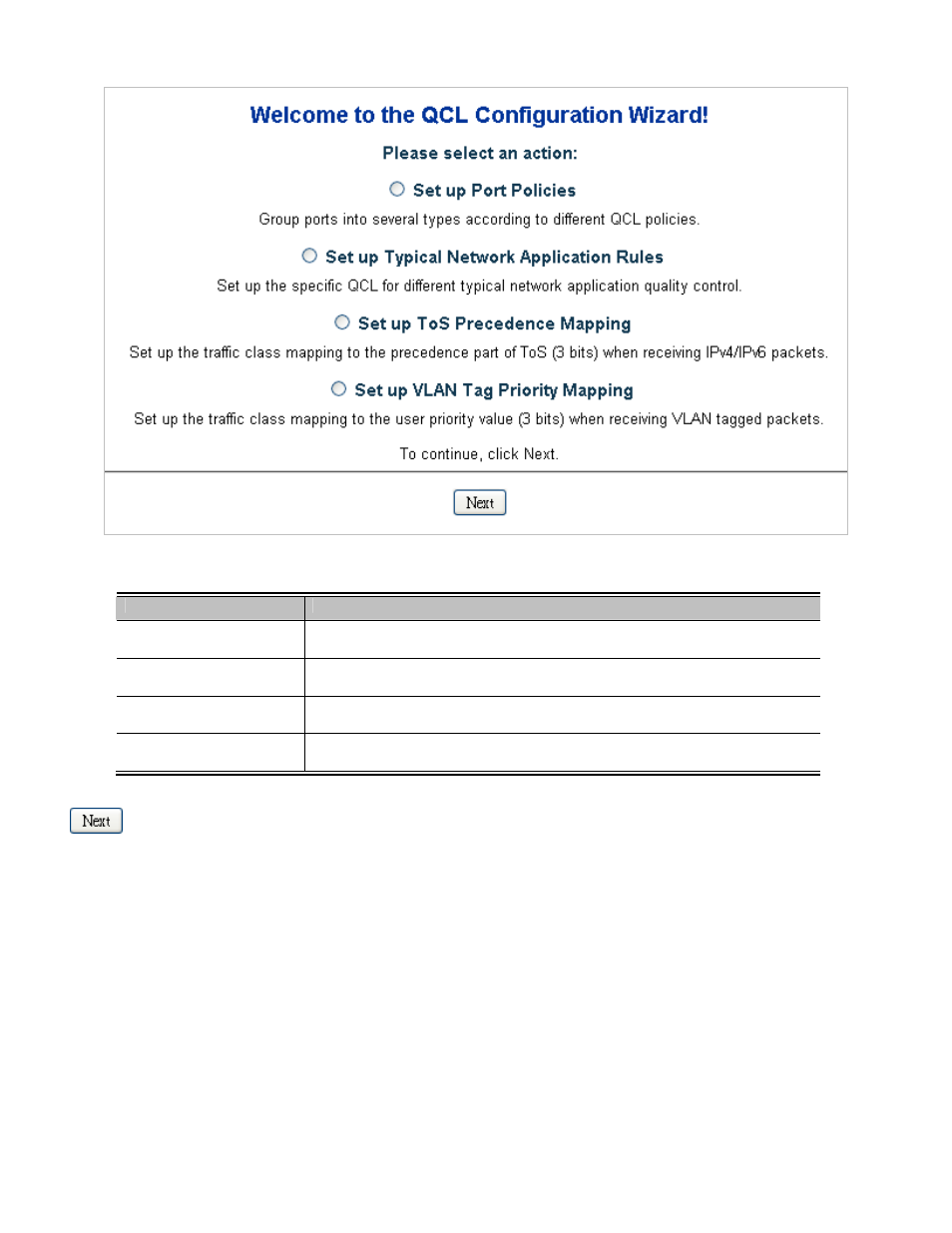

Welcome to the QCL Configuration Wizard page screenshot


The page includes the following fields:

Object

Description

Set up Port Policies

Group ports into several types according to different QCL policies.

Set up Typical Network
Application Rules

Set up the specific QCL for different typical network application quality control.

Set up ToS Precedence
Mapping

Set up the traffic class mapping to the precedence part of ToS (3 bits) when
receiving IPv4/IPv6 packets.

Set up VLAN Tag
Priority Mapping

Set up the traffic class mapping to the User Priority value (3 bits) when receiving
VLAN tagged packets.


Buttons

: Click to continue the wizard.


Set up Policy Rules

Group ports into several types according to different QCL policies. The settings relate to the currently selected stack unit, as
reflected by the page header. The screen is shown

Figure 4-9-2

.
