with buffering would not be an intended use of this application type.
Video Signaling
- for use in network topologies that require a separate policy for
the video signaling than for the video media.
• Policy
Policy
Unknown
: The network policy for the specified application type is currently
unknown.
Defined
: The network policy is defined.
• TAG
TAG is indicating whether the specified application type is using a tagged or an
untagged VLAN. Can be Tagged ot Untagged
Untagged
: The device is using an untagged frame format and as such does not
include a tag header as defined by IEEE 802.1Q-2003.
Tagged
: The device is using the IEEE 802.1Q tagged frame format
• VLAN ID
VLAN ID is the VLAN identifier (VID) for the port as defined in IEEE
802.1Q-2003. A value of 1 through 4094 is used to define a valid VLAN ID. A
value of 0 (Priority Tagged) is used if the device is using priority tagged frames as
defined by IEEE 802.1Q-2003, meaning that only the IEEE 802.1D priority level
is significant and the default PVID of the ingress port is used instead.
• Priority
Priority is the Layer 2 priority to be used for the specified application type.One of
eight priority levels (0 through 7)
• DSCP
DSCP is the DSCP value to be used to provide Diffserv node behavior for the
specified application type as defined in IETF RFC 2474. Contain one of 64 code
point values (0 through 63).
Buttons
: Click to refresh the page immediately.
Auto-refresh
:
Check this box to enable an automatic refresh of the page at regular intervals.
Neighbor
This page provides a status overview for all
neighbor is detected. The LLDP Neighbor Information screen is shown
Figure 4-14-4
. The columns hold the following information:
Figure 4-14-4

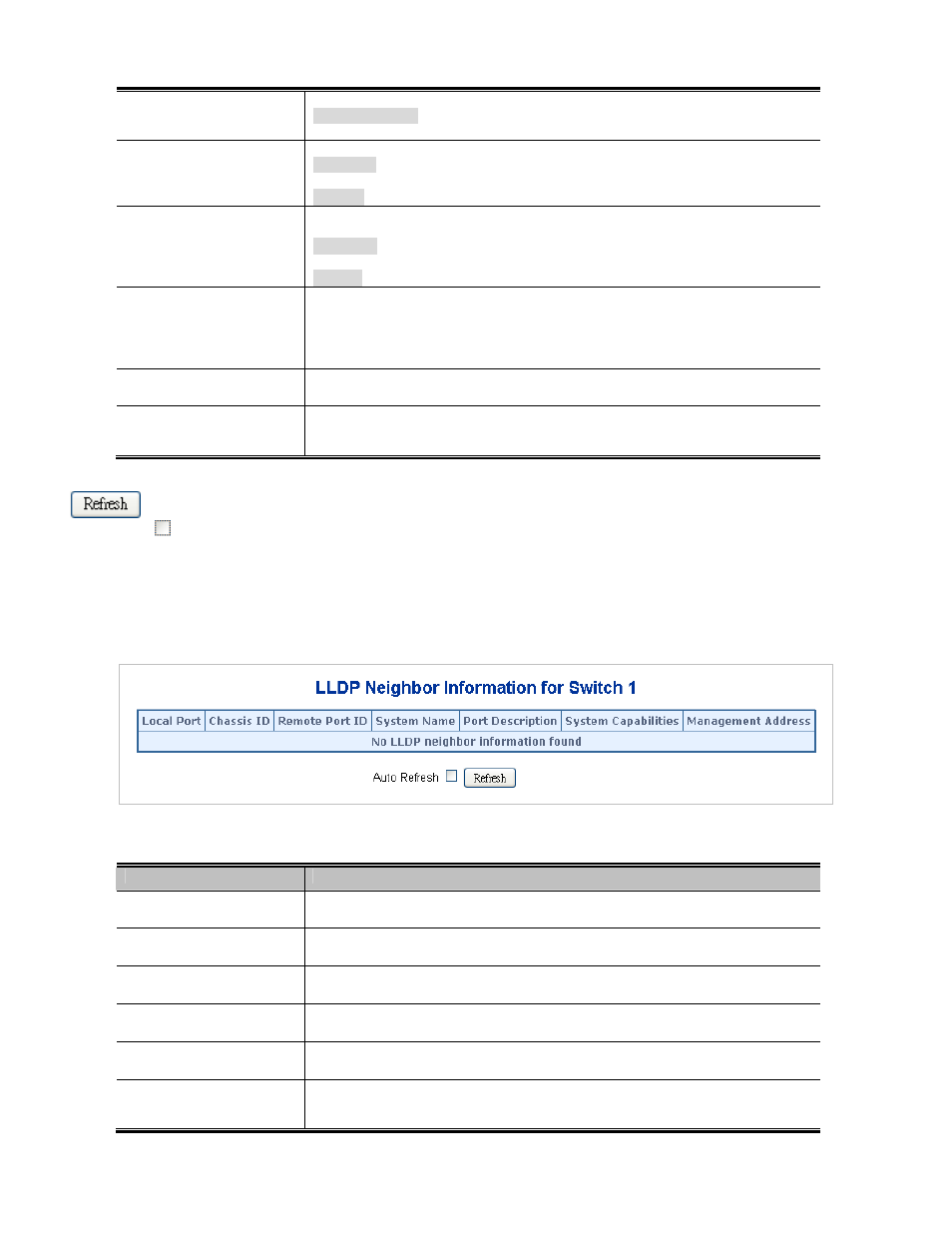

LLDP Neighbor Information page screenshot
The page includes the following fields:
Object
Description
• Local Port
The port on which the LLDP frame was received.
• Chassis ID
The Chassis ID is the identification of the neighbor's LLDP frames.
• Remote Port ID
The Remote Port ID is the identification of the neighbor port.
• System Name
System Name is the name advertised by the neighbor unit.
• Port Description
Port Description is the port description advertised by the neighbor unit.
• System Capabilities
System Capabilities describes the neighbor unit's capabilities. The possible
capabilities are:
1. Other
