IFS NS3601-24P/4S GE-DSSG-244 and 244-POE User Manual

67

System Reboot

The Reboot page enables the device to be rebooted from a remote location. Once the Reboot button is pressed, user have to

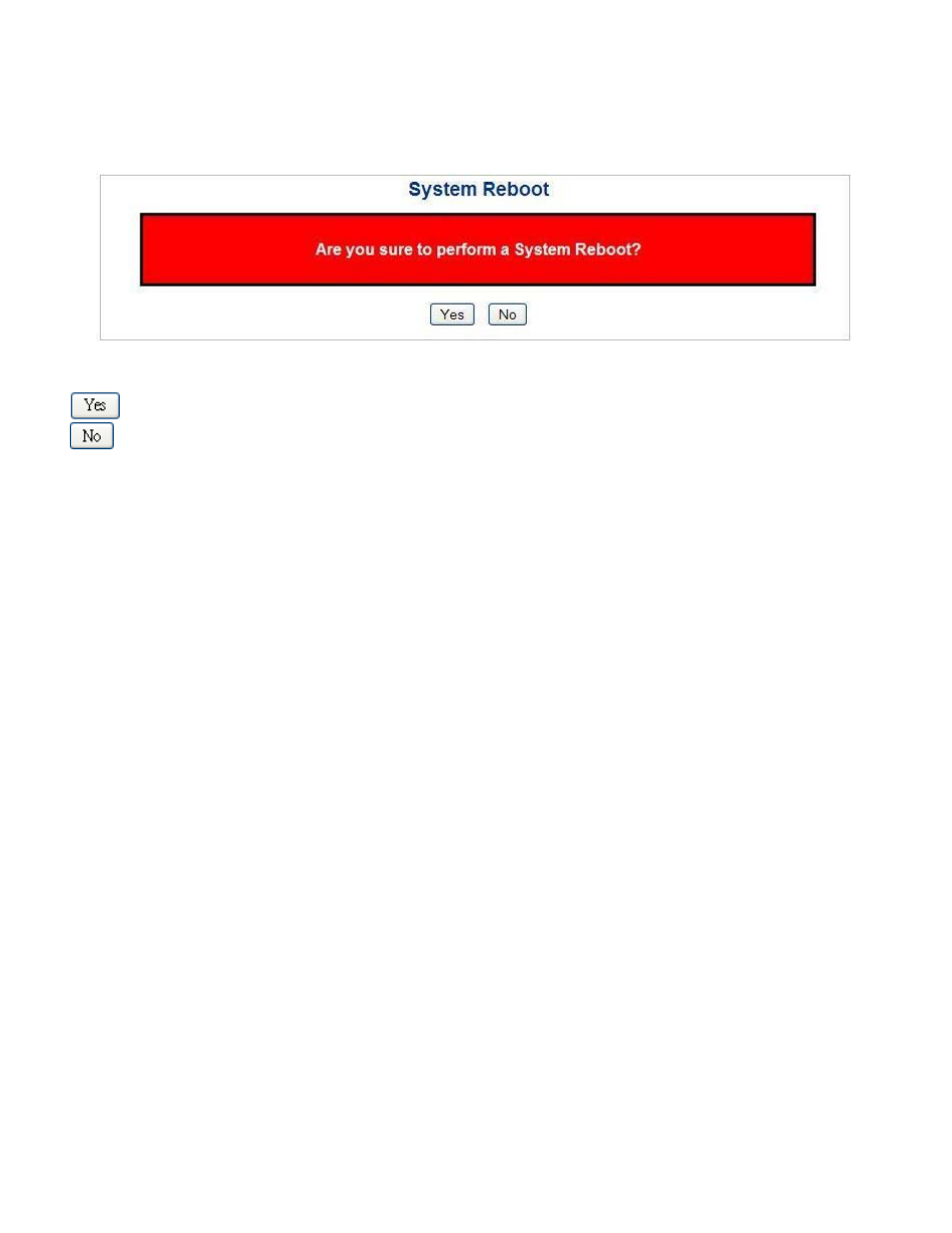

re-login the WEB interface about 60 seconds later. The System Reboot screen is shown in

Figure 4-2-27

.

Figure 4-2-27

System Reboot page screenshot


Buttons

: Click to reboot the system.

: Click to return to the Port State page without reboot the system.

Simple Network Management Protocol

SNMP Overview

The Simple Network Management Protocol (SNMP) is an application layer protocol that facilitates the exchange of management
information between network devices. It is part of the Transmission Control Protocol/Internet Protocol (TCP/IP) protocol suite. SNMP
enables network administrators to manage network performance, find and solve network problems, and plan for network growth.

An SNMP-managed network consists of three key components: Network management stations (NMSs), SNMP agents,
Management information base (MIB) and network-management protocol:

Network management stations (NMSs):

Sometimes called consoles, these devices execute management applications that

monitor and control network elements. Physically, NMSs are usually engineering workstation-caliber computers with fast
CPUs, megapixel color displays, substantial memory, and abundant disk space. At least one NMS must be present in each
managed environment.

Agents

Agents are software modules that reside in network elements. They collect and store management information such

as the number of error packets received by a network element.

Management information base (MIB):

A MIB is a collection of managed objects residing in a virtual information store.

Collections of related managed objects are defined in specific MIB modules.

Network-management protocol:

A management protocol is used to convey management information between agents and

NMSs. SNMP is the Internet community's de facto standard management protocol.

SNMP Operations
SNMP itself is a simple request/response protocol. NMSs can send multiple requests without receiving a response.

Get --

Allows the NMS to retrieve an object instance from the agent.

Set --

Allows the NMS to set values for object instances within an agent.

Trap --

Used by the agent to asynchronously inform the NMS of some event. The SNMPv2 trap message is designed to

replace the SNMPv1 trap message.

SNMP community
An SNMP community is the group that devices and management stations running SNMP belong to. It helps define where information
is sent. The community name is used to identify the group. A SNMP device or agent may belong to more than one SNMP community.
It will not respond to requests from management stations that do not belong to one of its communities. SNMP default communities
are:

Write

= private

Read

= public


Use the SNMP Menu to display or configure the Managed Switch's SNMP function. This section has the following items:

„

System Configuration

Configure SNMP on this page.
