IFS NS3601-24P/4S GE-DSSG-244 and 244-POE User Manual

141

The page includes the following fields:

Object

Description

MVR Mode

Enable/Disable the Global MVR.

VLAN ID

Specify the Multicast VLAN ID.

Mode

Enable MVR on the port.

Type

Specify the MVR port type on the port.

Immediate Leave

Enable the fast leave on the port.


Buttons

: Click to save changes.

: Click to undo any changes made locally and revert to previously saved values.


MVR Status

This page provides MVR status. The MVR Status screen is shown

Figure 4-8-11

.

Figure 4-8-11

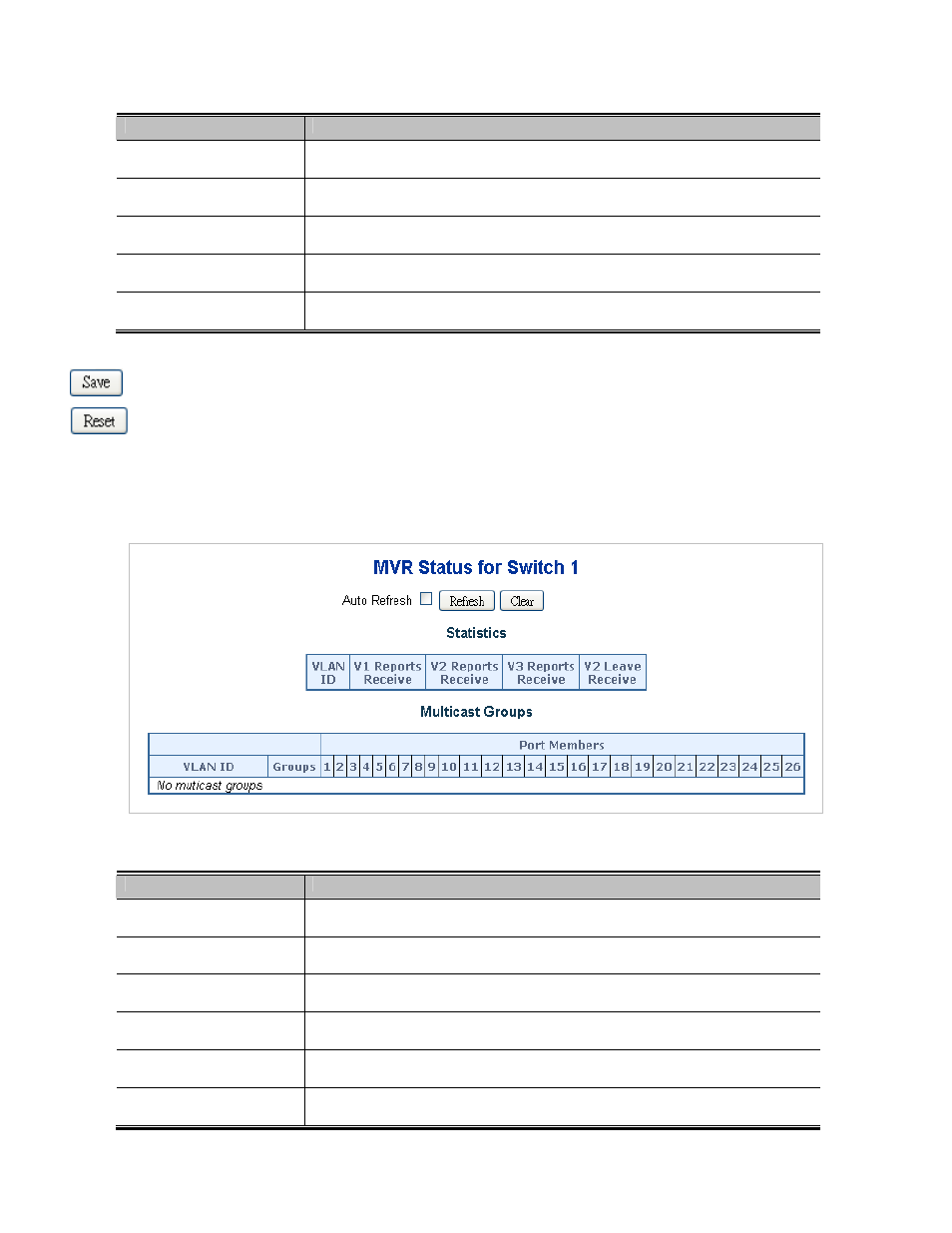

MVR Status page screenshot


The page includes the following fields:

Object

Description

Group

The present multicast groups. Max. are 128 groups in the multicast VLAN.

Port Members

The ports that are members of the entry.

V1 Reports Receive

The number of Received V1 Reports.

V2 Reports Receive

The number of Received V2 Reports.

V3 Reports Receive

The number of Received V3 Reports.

V2 Leave Receive

The number of Received V2 Leave.
