IFS NS3601-24P/4S GE-DSSG-244 and 244-POE User Manual

128

The page includes the following fields:

Object

Description

Port

The switch port number of the logical STP port.

CIST Role

The current STP port role of the ICST port. The port role can be one of

the following values:

AlternatePort

BackupPort

RootPort

DesignatedPort

State

The current STP port state of the CIST port . The port state can be one

of the following values:

Disabled

Blocking

Learning

Forwarding

Non-STP

Uptime

The time since the bridge port was last initialized.


Buttons

: Click to refresh the page immediately.

Auto-refresh

: Check this box to enable an automatic refresh of the page at regular intervals.


Port Statistics

This page displays the STP port statistics counters for port physical ports in the currently selected switch.

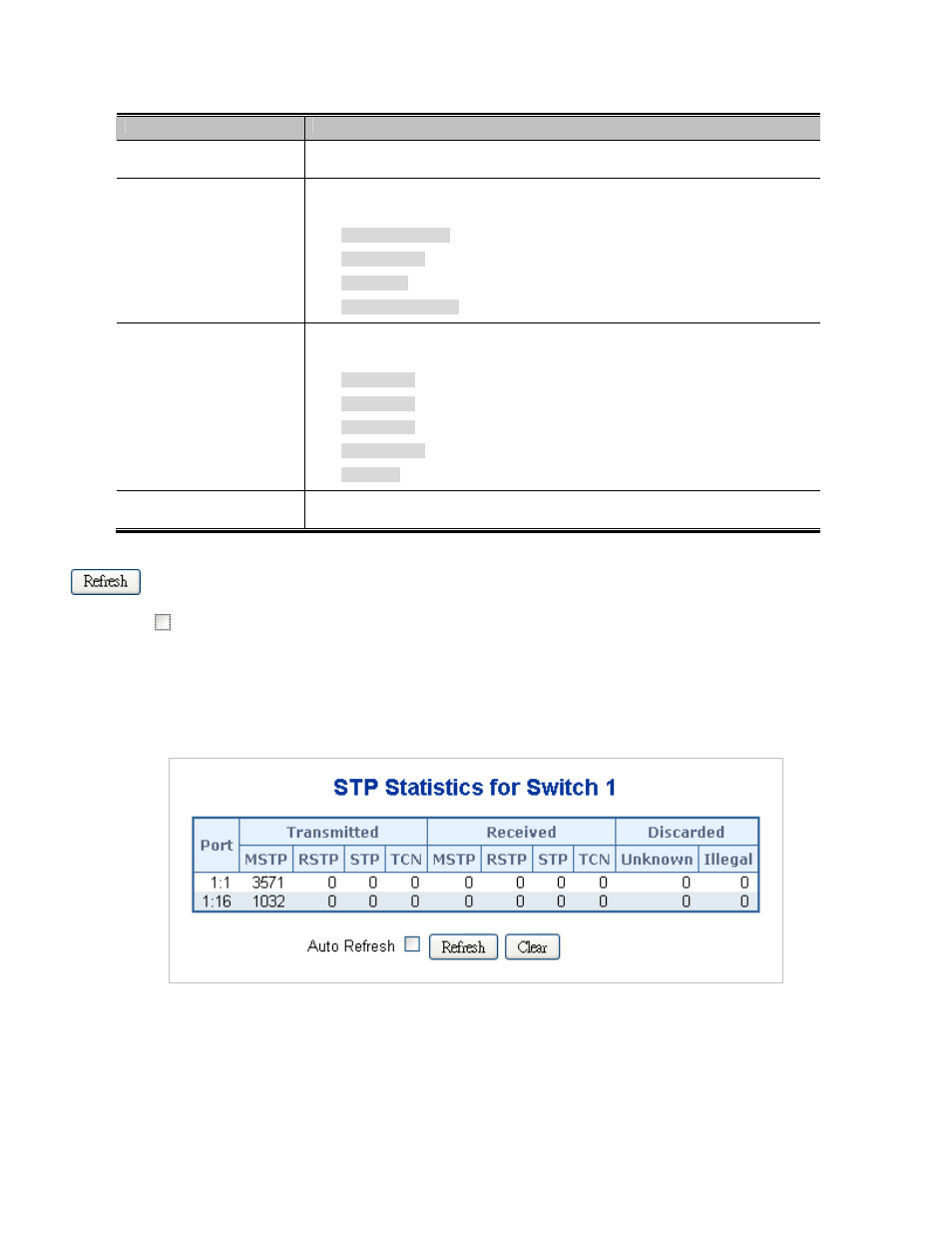

The STP Port Statistics screen is shown

Figure 4-7-15

.

Figure 4-7-15

STP Statistics page screenshot
