IFS NS3601-24P/4S GE-DSSG-244 and 244-POE User Manual

101

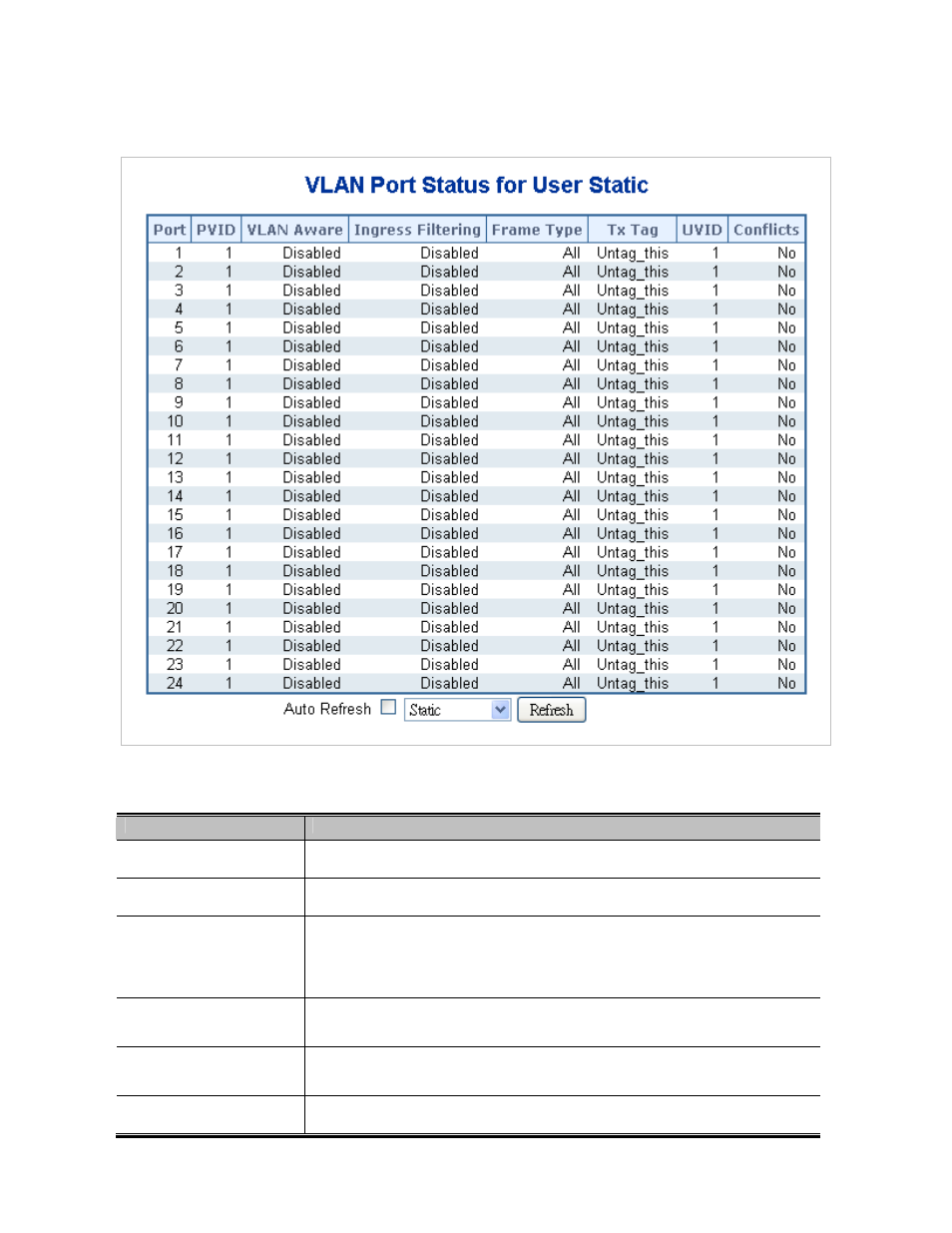

VLAN Port Status for User Static

This page provides VLAN Port Staus. The VLAN Port Status for User Static screen is shown

Figure 4-6-5

.

Figure 4-6-5

VLAN Port Status for User Static page screenshot

The page includes the following fields:

Object

Description

Port

The logical port for the settings contained in the same row.

PVID

Shows the VLAN identifier for that port. The allowed values are 1 through 4095.
The default value is 1.

VLAN Aware

Show the VLAN Awareness for the port.
If VLAN awareness is enabled, the tag is removed from tagged frames received
on the port. VLAN tagged frames are classified to the VLAN ID in the tag.
If VLAN awareness is disabled, all frames are classified to the Port VLAN ID and
tags are not removed.

Ingress Filtering

Show the ingress filtering for a port. This parameter affects VLAN ingress
processing. If ingress filtering is enabled and the ingress port is not a member of
the classified VLAN of the frame, the frame is discarded.

Frame Type

Shows whether the port accepts all frames or only tagged frames. This
parameter affects VLAN ingress processing. If the port only accepts tagged
frames, untagged frames received on that port are discarded.

Tx Tag

Shows egress filtering frame status whether tagged or untagged.
