IFS NS3601-24P/4S GE-DSSG-244 and 244-POE User Manual

100

: Updates the table starting from the first entry in the VLAN Table, i.e. the entry with the lowest VLAN ID.

: Updates the table, starting with the entry after the last entry currently displayed.


VLAN Membership Status for User Static

This page provides an overview of membership status for VLAN users. The VLAN Membership Status for User Static screen is
shown

Figure 4-6-4

.

Figure 4-6-4

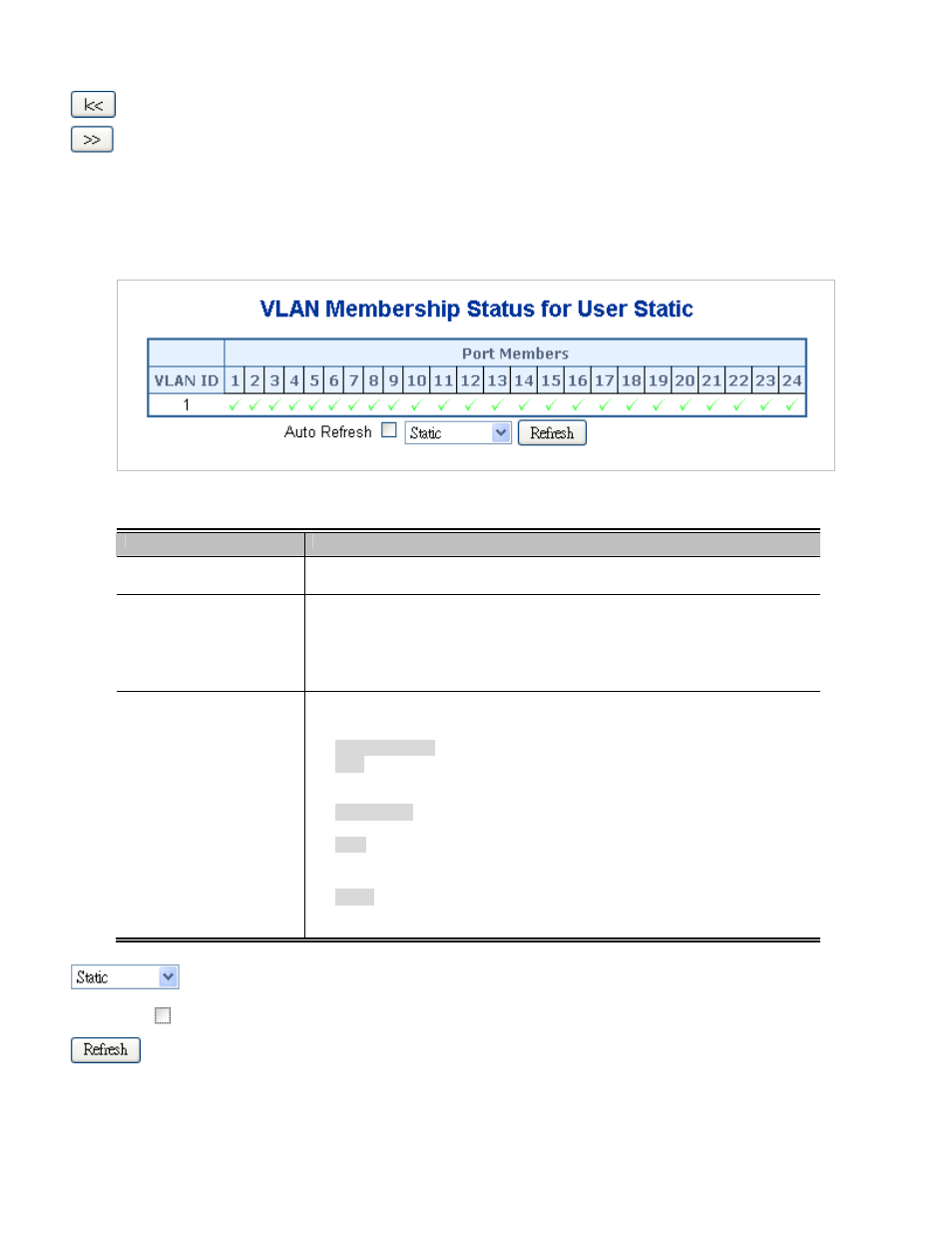

VLAN Membership Status for User Static page screenshot


The page includes the following fields:

Object

Description

VLAN ID

Indicates the ID of this particular VLAN.

Port Members

The VLAN Membership Status Page shall show the current VLAN port members
for all VLANs configured by a selected VLAN User (selection shall be allowed by
a Combo Box). When ALL VLAN Users is selected, it shall show this information
for all the VLAN Users, and this is the default. VLAN membership allows the
frames Classified to the VLAN ID to be forwarded to the respective VLAN
member ports.

VLAN User

A VLAN User is a module that uses services of the VLAN management
functionality to configure VLAN memberships and VLAN port configuration such
as PVID, UVID. Currently we support following VLAN :

- CLI/Web/SNMP : This are reffered as static.
- NAS : NAS provides port-based authentication, which involves

communications between a Supplicant, Authenticator, and an Authentication
Server.

- Voice VLAN : Voice VLAN is a VLAN configured specially for voice traffic

typically originating from IP phones.

- MVR : MVR is used to eliminate the need to duplicate multicast traffic for

subscribers in each VLAN. Multicast traffic for all channels is sent only on a
single (multicast) VLAN.

-

MSTP

: The 802.1s Multiple Spanning Tree protocol (MSTP) uses VLANs to

create multiple spanning trees in a network, which significantly improves
network resource utilization while maintaining a loop-free environment.

Buttons

: Select VLAN Users from this drop down list.

Auto-refresh

: Check this box to enable an automatic refresh of the page at regular intervals.

: Click to refresh the page immediately.
