IFS NS3601-24P/4S GE-DSSG-244 and 244-POE User Manual

242


The page includes the following fields:

Object

Description

Port

The logical port for the settings.

Remote IP Address

The destination IP Address.

Ping Size

The payload size of the ICMP packet. Values range from 8 bytes to 1400 bytes.

Result

Display the ping result.

Cable Diagnostics

This page is used for running the Cable Diagnostics.

Press to run the diagnostics. This will take approximately 5 seconds. If all ports are selected, this can take approximately 15
seconds. When completed, the page refreshes automatically, and you can view the cable diagnostics results in the cable status
table. Note that Cable Diagnostics is only accurate for cables of length 7 - 140 meters.

10 and 100 Mbps ports will be linked down while running cable diagnostic. Therefore, running cable diagnastic on a 10 or 100 Mbps
management port will cause the switch to stop responding until VeriPHY is complete. The ports belong to the currently selected

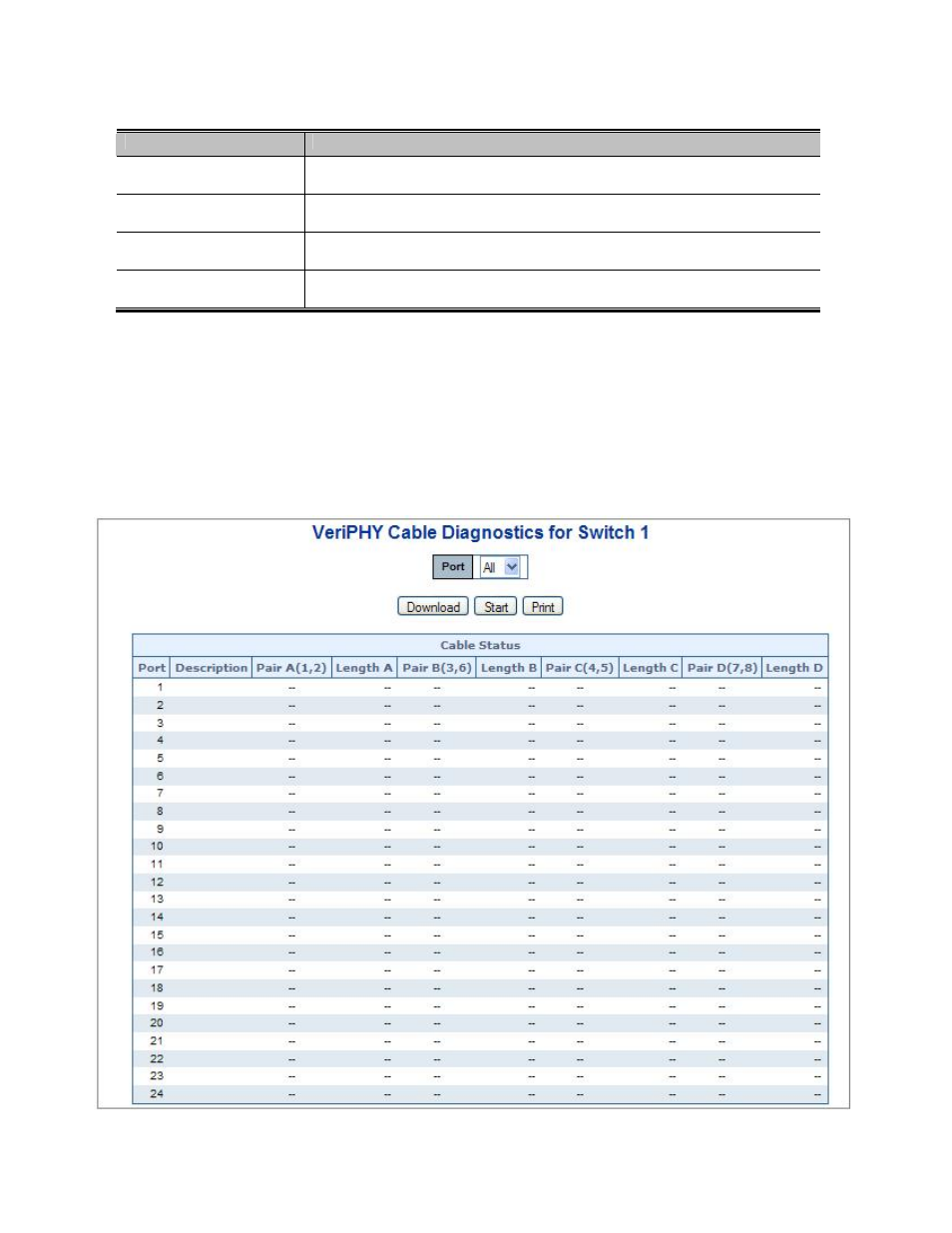

stack unit, as reflected by the page header. The VeriPHY Cable Diagnostics screen is shown

Figure 4-15-4

.

Figure 4-15-4

VeriPHY Cable Diagnostics page screenshot
