IFS NS3601-24P/4S GE-DSSG-244 and 244-POE User Manual

124


Buttons

: Click to save changes.

: Click to undo any changes made locally and revert to previously saved values.

MSTI Configuration

This page allows the user to inspect the current STP MSTI bridge instance priority configurations, and possibly change them as well.

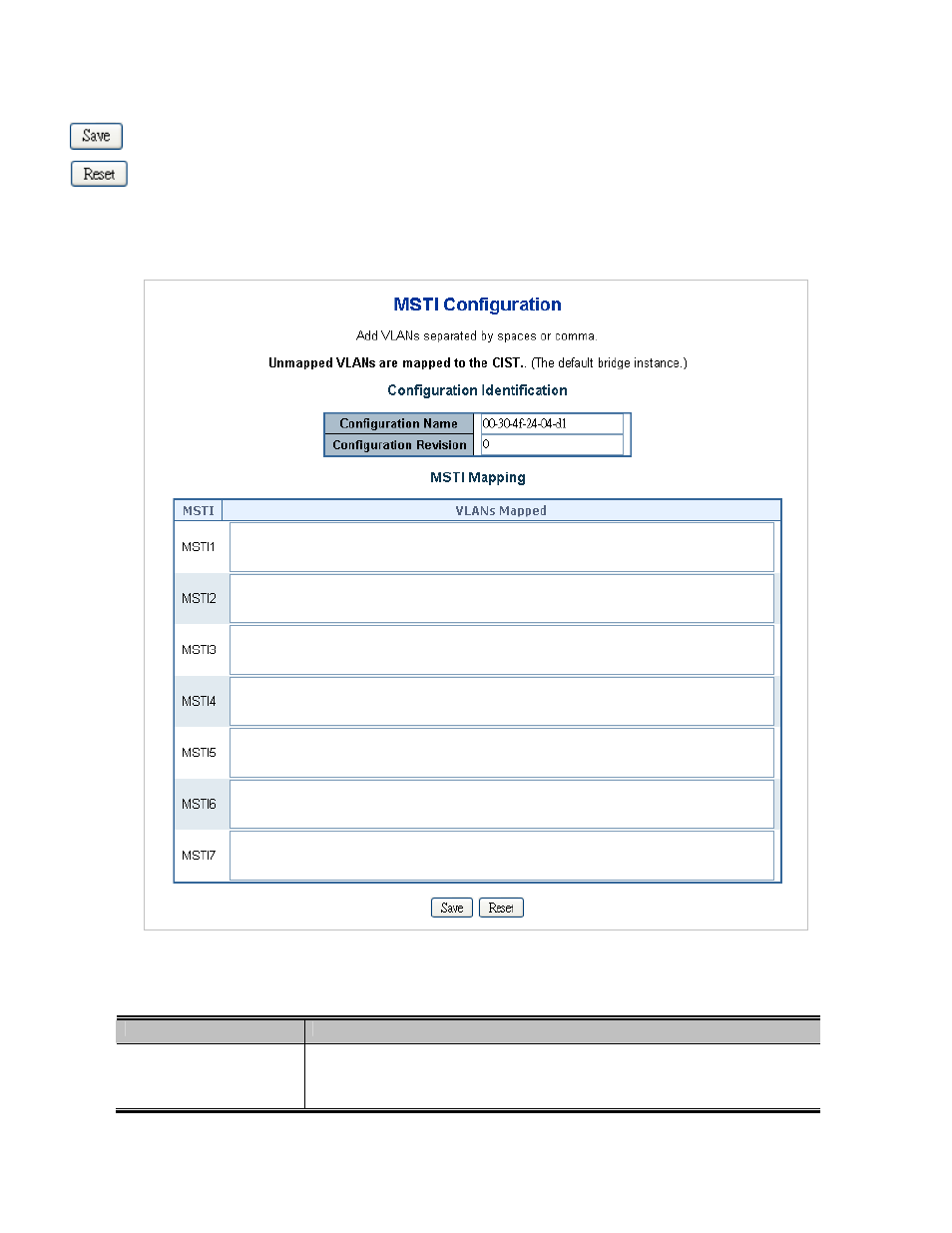

The MSTI Configuration screen is shown

Figure 4-7-11

.

Figure 4-7-11

MSTI Configuration page screenshot


The page includes the following fields:

Configuration Identification

Object

Description

Configuration Name

The name identifiying the VLAN to MSTI mapping. Bridges must share the name
and revision (see below), as well as the VLAN-to-MSTI mapping configuration in
order to share spanning trees for MSTI's. (Intra-region). The name is at most 32
characters.
